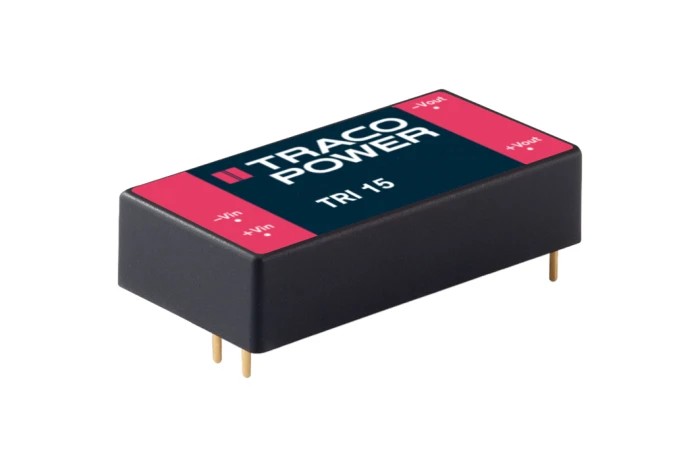

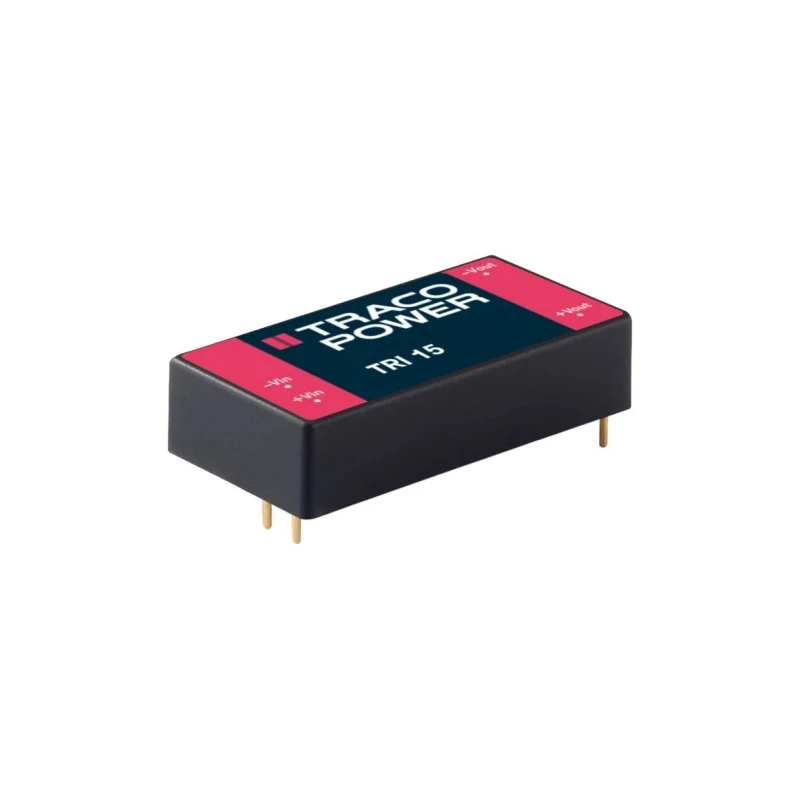

TRACOPOWER TRI 15 Two Output 12V dc 625 mA and -12V dc, 15W DIP Package Through Hole DC/DC Converter TRI 15-1222

TRACOPOWER TRI 15-1222 is a dual output DC/DC converter module delivering 12V dc and -12V dc outputs at 625 mA with a maximum output power of 15 W. This high-performance converter uses a DIP package for through-hole mounting, ideal for industrial electronic applications requiring reliable voltage conversions.

The converter features reinforced I/O isolation rated at 4200 VAC, suitable for working voltages up to 1000 VAC and withstands ultra-high isolation peak voltages up to 8000 VDC for one second. Its Common Mode Transient Immunity is rated at 15 kV/μs, conferring strong noise rejection capabilities essential in sensitive industrial environments.

With an efficiency of approximately 88%, the TRI 15-1222 minimizes power losses and heat generation, contributing to sustainable and efficient operation. The device supports a 2:1 input voltage ratio, accepting input voltages between 9 V to 18 V dc, making it versatile for various power supply scenarios.

Built to operate over a wide temperature range from -40 °C to +85 °C, this DC/DC converter is suitable for harsh industrial, manufacturing, and instrumentation applications. It is protected against overload, overvoltage, and short circuit conditions to ensure long-term reliability.

The compact size with length of 50.8 mm, width of 25.4 mm, and depth of 12 mm allows easy integration into PCB layouts without occupying excessive space. Its DIP through-hole mounting package with 5 pins facilitates straightforward installation and soldering.

This product is manufactured in Taiwan, Province Of China, and is covered by a three-year warranty providing confidence in long-term performance. Ideal use cases include industrial controls, power supplies, telecommunications, and instrumentation sectors requiring isolated and stable DC power conversion.

Features reinforced I/O isolation rated at 4200 VAC for enhanced operational safety. Supports an ultra-high isolation peak voltage of 8000 VDC for 1 second. Operates efficiently with an 88% efficiency rate, minimizing power loss.

Designed for a 2:1 input voltage range, accepting 9-18 V dc input voltages. Offers protection against overload, overvoltage, and short circuit conditions for durability. Maintains operation in temperature extremes from -40 °C up to +85 °C.

Compact dimensions with 50.8 mm length, 25.4 mm width and 12 mm depth support space-saving PCB designs. Comes with a 3-year product warranty ensuring reliability and support. Explore more DC/DC Converters and power supplies at EnvMart to find reliable and efficient components tailored for your electronic and industrial design requirements.
