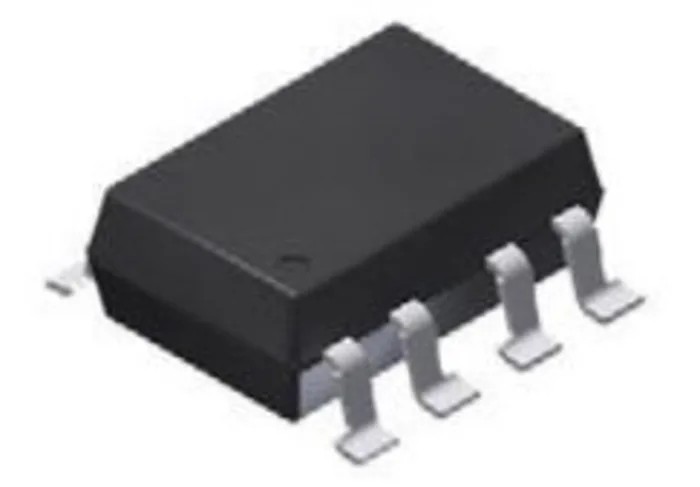

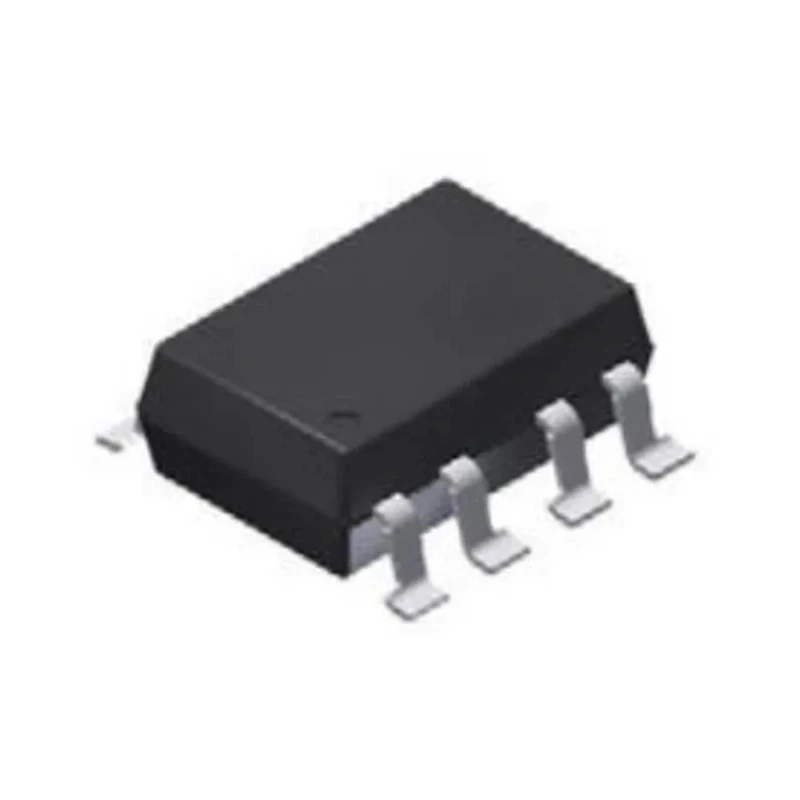

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin PDIP VO2630-X007T

Free Delivery in India | Lowest Global Shipping Charges

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin PDIP VO2630-X007T

Name: Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin PDIP VO2630-X007T
Brand: Vishay
SKU: 102780
Price: 2.72 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VO2630-X007T
Packaging	Tape & Reel
Mount Type	Surface
Series	VO
Maximum Operating Temperature	100°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Number Of Channels	2
Maximum Forward Voltage	1.7V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	23ns
Typical Fall Time	0.007μs

Key Features

Features DC input current type suitable for precise low voltage applications.
Contains 2 channels configured for logic output.
Maximum forward voltage is 1.7V for efficient operation.
Typical rise time of 23ns and fall time of 0.007μs ensures high-speed switching.
Operates reliably between -40°C and 100°C temperature range.
Has a maximum input current rating of 20mA supporting robust signal control.
Isolation voltage is rated at 5.3kVrms for safety and noise immunity.
Complies with UL1577, cUL, DIN EN 60747-5-5 (VDE 0884-5) standards.

Product Description

Vishay VO2630-X007T DC Input 2-Channel Optocoupler is designed for applications requiring electrical isolation and high-speed logic signal transmission. The device features a surface mount 8-pin PDIP package suitable for compact circuit layouts.

It supports DC input current type and integrates two channels, each capable of handling logic outputs, ideal for signal interfacing and noise reduction in sensitive electronic systems.

The optocoupler provides a maximum forward voltage of 1.7V with a maximum input current rating of 20mA, making it efficient for low voltage control circuits. Its typical rise and fall times of 23ns and 0.007μs respectively, enable rapid switching essential in digital applications.

Operating temperature ranges from -40°C to 100°C, the product is built for durability and performance stability under varying environmental conditions. The device offers an isolation voltage of 5.3kVrms, ensuring protection against electrical noise and surges.

Certified with UL1577, cUL, and DIN EN 60747-5-5 (VDE 0884-5), this optocoupler complies with stringent safety and quality standards required in industrial, manufacturing, and electronic assembly environments. The VO2630-X007T series represents Vishay’s commitment to reliable semiconductor components for advanced electronics.

Features DC input current type suitable for precise low voltage applications. Contains 2 channels configured for logic output. Maximum forward voltage is 1.7V for efficient operation. Typical rise time of 23ns and fall time of 0.007μs ensures high-speed switching.

Operates reliably between -40°C and 100°C temperature range. Has a maximum input current rating of 20mA supporting robust signal control. Isolation voltage is rated at 5.3kVrms for safety and noise immunity. Complies with UL1577, cUL, DIN EN 60747-5-5 (VDE 0884-5) standards.

Packaged in tape and reel format allowing automated assembly. Series VO design ensures consistent performance for industrial electronics.

This optocoupler is widely applicable in industrial control systems, electronic instrumentation, power supply regulation, and signal interfacing applications where isolating input from output circuits is essential for device protection and noise reduction.

Explore Vishay Optocouplers and related electronic components on EnvMart for trusted solutions in electronics manufacturing and design.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum input current rating for this model is 20mA, which supports robust signal control.

The isolation voltage is rated at 5.3kVrms, ensuring safety and noise immunity in applications.

It operates reliably between -40°C and 100°C, making it suitable for various environmental conditions.

The typical rise time is 23ns and the fall time is 0.007μs, enabling high-speed switching essential for digital applications.

This optocoupler contains 2 channels configured for logic output, ideal for signal interfacing.

It supports DC input current type, making it suitable for precise low voltage applications.

The maximum forward voltage is 1.7V, which contributes to its efficient operation in low voltage control circuits.

It is packaged in a tape and reel format, allowing for automated assembly in manufacturing processes.

The package type is PDIP, which is suitable for surface mount applications.

It complies with UL1577, cUL, and DIN EN 60747-5-5 (VDE 0884-5) standards, ensuring it meets stringent safety requirements.

This optocoupler belongs to the VO series, which is designed for consistent performance in industrial electronics.

It is widely applicable in industrial control systems, electronic instrumentation, and power supply regulation, where electrical isolation is essential.
