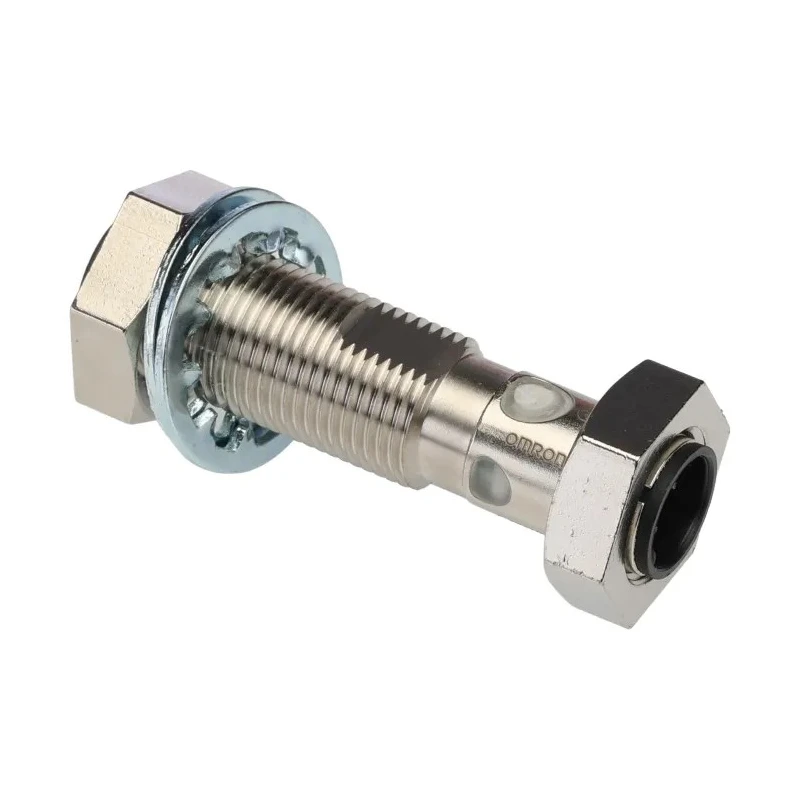

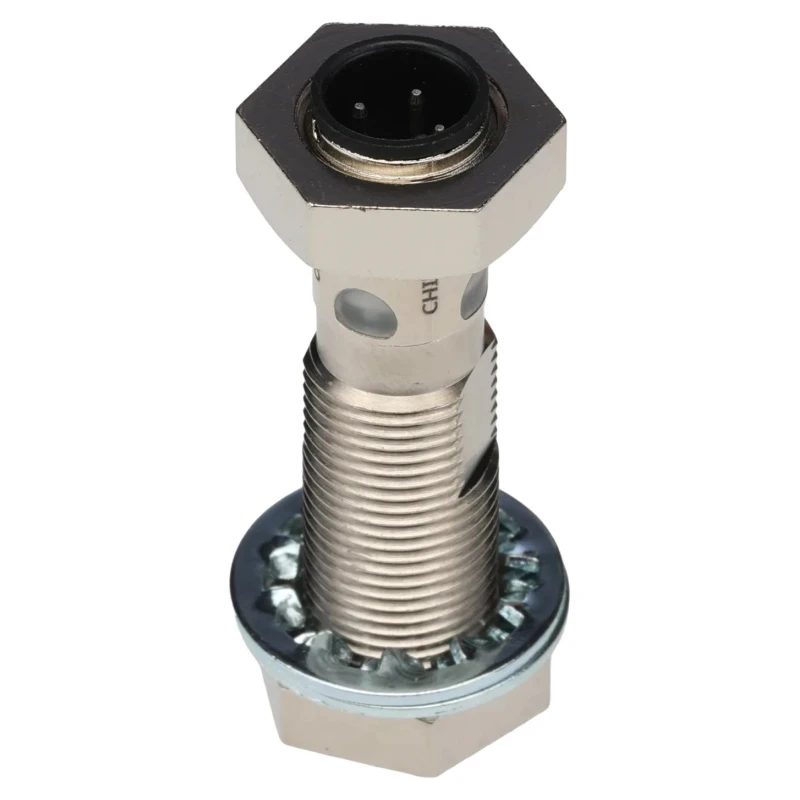

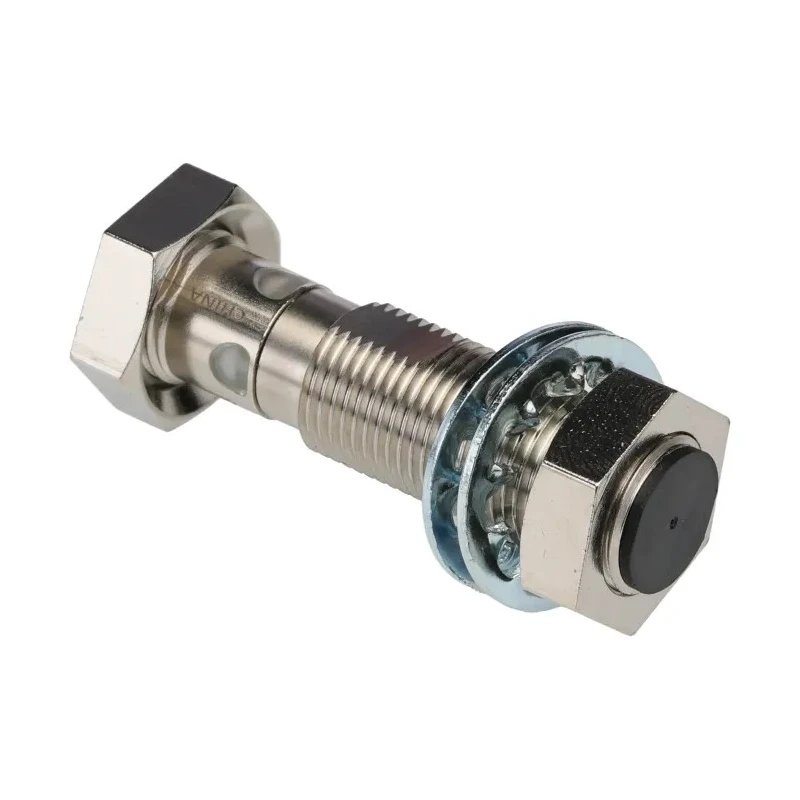

Omron Threaded Barrel Inductive Proximity Sensor M12 PNP E2E-X9B1T12-M1 30V DC 16mA 50mm Detection E2E-NEXT Series

Omron E2E-X9B1T12-M1 is a high-performance threaded barrel inductive proximity sensor designed for precise and reliable detection in industrial automation environments. Featuring an M12 thread size and PNP output, it operates on a 30V DC supply voltage with a typical switching current of 16mA. The sensor belongs to the E2E-NEXT series known for enhanced durability and accuracy.

This sensor supports quasi-flush mounting with a shielded design to reduce interference, ideal for space-limited applications. Its robust brass housing resists corrosion, making it suitable for harsh environments with operating temperatures ranging from -25°C up to 70°C. The sensor detects metallic materials such as steel, carbon fiber reinforced plastic (CFRP), and aluminium with a maximum detection distance of 50mm.

Featuring an IP69K, IP67G, and IP67 ingress protection rating, the device is highly resistant to dust and water ingress, suitable for demanding industrial conditions. The sensor outputs signals via a 4-pin terminal through an M12 connector for easy integration into automation control systems. It offers a maximum switching frequency of 700Hz, enabling fast and efficient operation.

Safety protections include reverse polarity and short circuit overload protection, enhancing system reliability. The sensor complies with CE standards, ensuring conformity with relevant safety and electromagnetic compatibility requirements.

Applications for this inductive proximity sensor include precise object detection in automated assembly lines, positioning tasks in manufacturing systems, and integration within IO-Link capable industrial environments. Its robust design and broad voltage supply make it suitable for electrical, mechanical, and automation engineering applications demanding high accuracy and durability.

The sensor features a shielded design minimizing electromagnetic interference. Constructed with durable brass housing for corrosion resistance. Supports quasi-flush mounting ideal for space-constrained applications. Offers a maximum switching frequency of 700Hz for fast response.

Equipped with a 4-pin M12 connector for seamless integration. Operates reliably within a temperature range from -25°C to 70°C. Includes reverse polarity and short circuit overload protections for system safety. Compatible with materials such as steel, CFRP, and aluminium.

Certified with CE standard ensuring quality and compliance. Explore more in our Proximity Sensor category for comprehensive industrial automation solutions.
