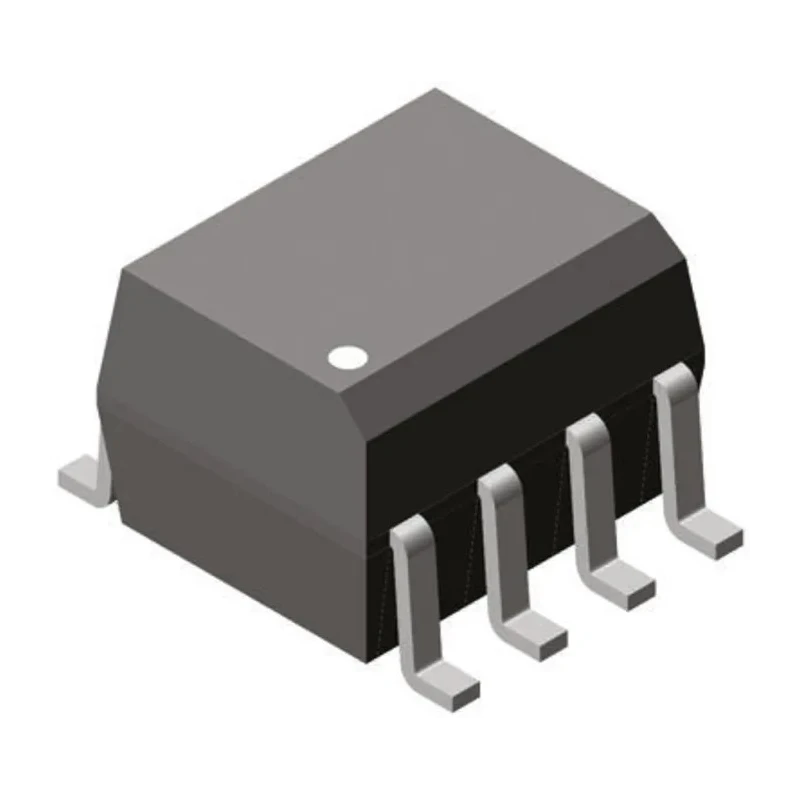

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC-8 Package VOD207T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOD207T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC-8 |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Provides two independent optocoupler channels for signal isolation.
- Surface mount SOIC-8 package facilitates PCB assembly.
- Maximum forward voltage of 1.55 volts ensures efficient operation.
- Supports DC input current with a maximum of 30mA per channel.
- High isolation voltage of 4000V AC enhances circuit protection.
- Typical rise and fall times are 5μs and 4μs respectively, suitable for fast switching.
- Operating temperature ranges from -40°C to 100°C for robust performance.
- Logic output type enables easy digital interface integration.
Product Description
Vishay VOD207T is a high performance DC input Optocoupler engineered for electronic isolation and signal transfer applications. Featuring two optically isolated channels housed in a compact surface mount 8-pin SOIC-8 package, the device supports isolation voltage up to 4000V AC, making it highly suitable for industrial, commercial, and laboratory electronic circuit designs.
The device operates efficiently with a maximum forward voltage of 1.55V and a maximum input current of 30mA DC per channel. Its fast switching capabilities are evidenced by typical rise and fall times of 5μs and 4μs respectively, catering to demanding timing applications. The operating temperature range from -40°C to 100°C ensures reliable operation in harsh environments.
Designed with logic output for straightforward digital circuit integration, the VOD207T meets international safety and quality standards including UL1577, CSA (CSA bulletin 5A), and DIN EN 60747-5-5. It offers a maximum current transfer ratio of up to 200%, guaranteeing efficient signal transmission and isolation.
These specifications make the Vishay VOD207T ideal for a variety of applications such as industrial automation controls, power supply monitoring, telecommunications, and medical equipment where electrical isolation and signal integrity are critical requirements.
Offers dual channel optical isolation with DC input. Compact SOIC-8 surface mount package enables space saving on PCBs. Supports high voltage isolation to protect circuits. Compliant with major international safety certifications.
Suited for industrial, laboratory, and commercial electronic systems. Explore the range of Vishay optoelectronic components on EnvMart for reliable and quality electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 30mA per channel.
It has a high isolation voltage rating of 4000V AC, providing excellent circuit protection.
The typical rise time is 5μs and the fall time is 4μs, making it suitable for fast switching applications.
This unit operates within a temperature range of -40°C to 100°C, allowing for reliable performance in harsh conditions.
It features two independent channels for signal isolation.
The device is housed in a compact SOIC-8 surface mount package, which facilitates PCB assembly.
The maximum forward voltage is 1.55 volts, ensuring efficient operation.
It has a maximum current transfer ratio of up to 200%, ensuring efficient signal transmission.
This model features a logic output type, which allows for easy integration with digital circuits.
The VOD207T is available in Tape & Reel packaging, suitable for automated assembly processes.
It meets several international safety and quality standards, including UL1577 and CSA bulletin 5A.
This optocoupler is used in applications such as industrial automation controls, power supply monitoring, telecommunications, and medical equipment.
