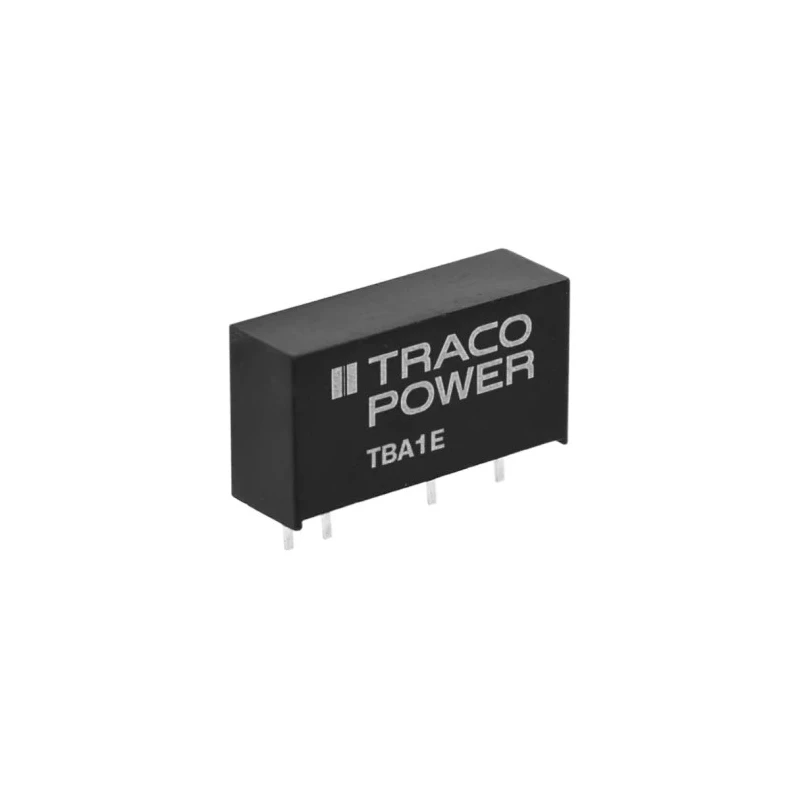

TRACOPOWER Dual Output DC/DC Converter 12V ±12V 41mA 1W SIP-7 PCB Mount TBA 1-2422E
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TBA 1E DC/DC Converter, 12V dc/ 41 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 19.5mm |
| Model | TBA 1-2422E |
| Depth | 9.55mm |
| Width | 6mm |
| Mount Type | PCB |
| Series | TBA 1E |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-7 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 41mA |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | -12V dc |
Key Features
- Provides two isolated outputs allowing versatility in powering multiple circuits.
- Operates with input voltages ranging from 21.6V to 26.4V DC.
- Compact SIP-7 package measuring 19.5 x 6 x 9.55 mm for efficient PCB mounting.
- High efficiency of 82% ensures low power loss and thermal stress.
- Wide operating temperature range from -40°C up to 85°C for harsh environments.
- Integrated short-circuit protection ensures device and circuit safety.
- Rated for a maximum output power of 1 Watt suitable for low power applications.
- Electrical isolation of 1.5 kV DC separates input and output for noise reduction and safety.
Product Description
TRACOPOWER TBA 1-2422E is a dual output DC/DC converter designed to provide stable ±12V outputs at 41mA current from a DC input voltage range of 21.6 to 26.4 volts. The converter is housed in a compact SIP-7 package with dimensions of 19.5mm length, 6mm width, and 9.55mm depth, suitable for PCB mounting in electronic assemblies.
This converter features an efficiency rating of 82%, optimizing energy conversion while minimizing heat generation. It supports a wide operating temperature range from -40°C to +85°C, ensuring reliable operation in industrial and harsh environmental conditions without derating.
With 1.5kV DC isolation voltage between input and outputs, it guarantees secure electrical separation to protect sensitive circuits. The integrated short-circuit protection adds an important layer of safety in case of electrical faults. It has a low output power rating of 1 watt, making it ideal for small electronic systems requiring dual ±12V power rails.
The unusually long Mean Time Between Failures (MTBF) of 2,000,000 hours reflects TRACOPOWER's commitment to high-quality, reliable components suitable for demanding applications.
Applications for the TBA 1-2422E include electronics manufacturing, industrial automation controls, telecommunications equipment, and IT network devices. Its small form factor and robust performance make it a versatile choice for powering dual-voltage circuits on printed circuit boards.
Provides two isolated ±12V DC outputs for dual-rail power supply. Compact SIP-7 PCB-mount package saves board space. Operates input voltage range of 21.6 to 26.4V DC. Includes integrated short-circuit protection for fault tolerance.
High operating temperature limits (-40°C to 85°C) allow harsh environment use. Maximum output power rating of 1 watt suitable for low-power applications. Electrical isolation of 1.5kV DC between input and output for safety.
Efficiency of 82% reduces energy waste and thermal buildup. Reliable with an MTBF of 2 million hours. Applications include industrial controls, telecom, electronics manufacturing, and IT networking. Explore EnvMart for a wide selection of DC/DC Converters and power supply solutions from trusted brands including TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 21.6V to 26.4V DC.
This unit has a maximum output power rating of 1 Watt.
It provides two isolated outputs: +12V and -12V.
The efficiency rating of this model is 82%.
The SIP-7 package measures 19.5mm in length, 6mm in width, and 9.55mm in depth.
It operates within a temperature range of -40°C to +85°C.
It features an electrical isolation of 1.5 kV DC between the input and outputs, ensuring safety and noise reduction.
This model is designed for PCB mounting.
It includes integrated short-circuit protection to ensure device and circuit safety.
The MTBF for this unit is 2,000,000 hours.
This converter is suitable for applications in electronics manufacturing, industrial automation controls, telecommunications equipment, and IT network devices.
The +12V output has a current rating of 41mA.
