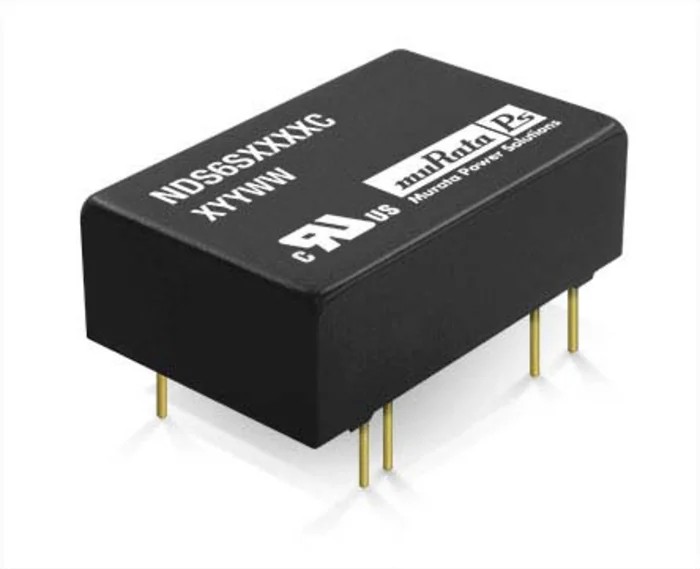

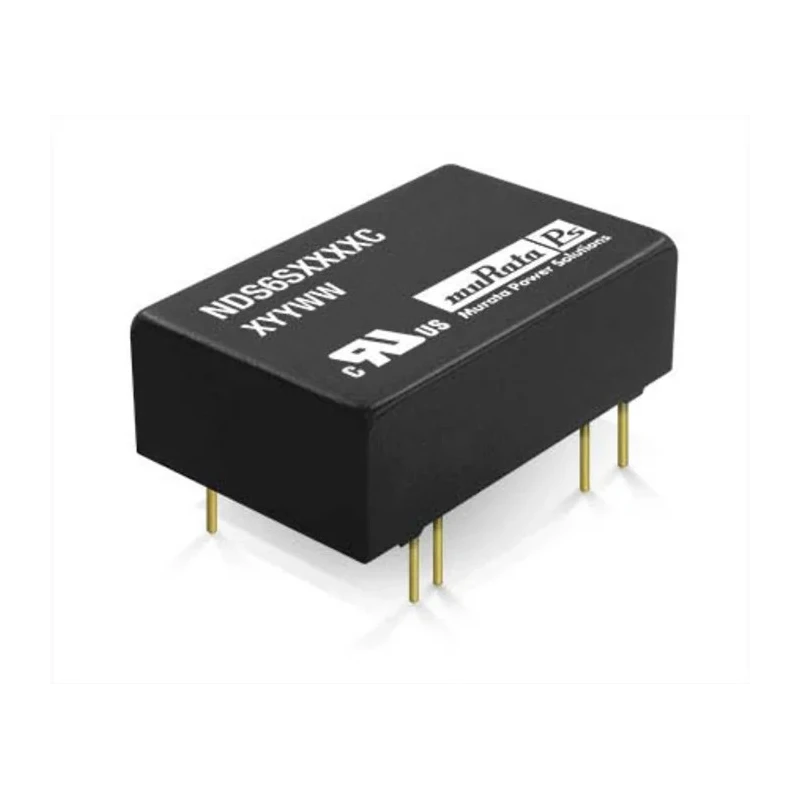

Murata Power Solutions DC/DC Converter Through Hole 6W 5V Output, 36V DC Input NDS6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDS6 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 87% |
| Length | 32mm |
| Model | NDS6 |
| Depth | 10mm |
| Gross Weight | 16.4g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NDS6 |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 1.2mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This converter supports a wide input voltage range from 18V to 36V DC.
- It features a single output with a high efficiency of 87 percent.
- The module has a DIP24 metal case package with 24 pins for secure mounting.
- Offers an isolation voltage of 1.5kV DC ensuring safe electrical isolation.
- Compact dimensions of 32mm length, 10mm width, and 10mm depth enable flexible PCB integration.
- Ripple and noise are minimized to 40mV peak-to-peak for stable output power.
- It supports an output current of approximately 1.2 mA for precision applications.
- Designed with fully encapsulated UL 94V-0 rated package material for durability.
Product Description
Murata Power Solutions NDS6 DC/DC Converter is a high-performance power module designed to deliver a regulated 5V DC output from a wide DC input range of 18V to 36V. The converter is suitable for applications requiring isolated power conversion with a maximum output power of 6 watts and a single output configuration.
This through-hole mounted module features a DIP24 metal case package with 24 pins, providing a robust and compact solution measuring 32mm in length, 10mm in width, and 10mm in depth. The device has an isolation voltage rating of 1.5 kV DC which makes it reliable for industrial and commercial electrical applications where isolation is critical.
The converter operates efficiently up to 87 percent and maintains output ripple and noise levels as low as 40mV peak-to-peak, ensuring stable voltage delivery for sensitive electronics. Operating temperature range spans from -40°C to 85°C, enabling usage in diverse environmental conditions.
Additional protective features include a UL 94V-0 fully encapsulated package material that enhances safety and component lifespan. The wide input voltage ratio of 2:1 allows the converter to adapt to varying supply voltages without compromising performance. RoHS compliance affirms that the product meets stringent environmental guidelines.
This converter delivers regulated 5V DC output power with a maximum of 6W. Input voltage range from 18V to 36V DC suits a variety of power sources. Fully encapsulated DIP24 metal case package with 24 connection pins. High isolation voltage of 1.5kV DC supports secure electrical separation.
Compact dimensions (32mm × 10mm × 10mm) facilitate easy PCB integration. Low ripple and noise of 40mV Pk-Pk ensures clean output voltage. Operating temperature from -40°C up to 85°C for robust performance. Efficiency rate of 87 percent optimizes power usage.
RoHS compliant materials contribute to eco-friendly manufacturing. Ideal for industrial, electronic components, and DC voltage conversion use cases.
Murata Power Solutions offers this DC/DC converter as a reliable component for applications demanding stable, isolated power conversion with compact size and through-hole mounting compatibility. Browse the EnvMart Electronics & Electricals category to find more DC/DC Converters and power supply solutions fitting your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
It delivers a maximum output power of 6 watts.
The converter operates with an efficiency of 87 percent.
This unit measures 32mm in length, 10mm in width, and 10mm in depth.
It has an isolation voltage rating of 1.5kV DC.
The model features 24 pins for connections.
The ripple and noise are minimized to 40mV peak-to-peak.
It operates within a temperature range of -40°C to 85°C.
This model is designed for through-hole mounting.
It is designed with a fully encapsulated UL 94V-0 rated package material.
Yes, this model is RoHS compliant, meeting stringent environmental guidelines.
The converter provides a regulated output voltage of 5V DC.
