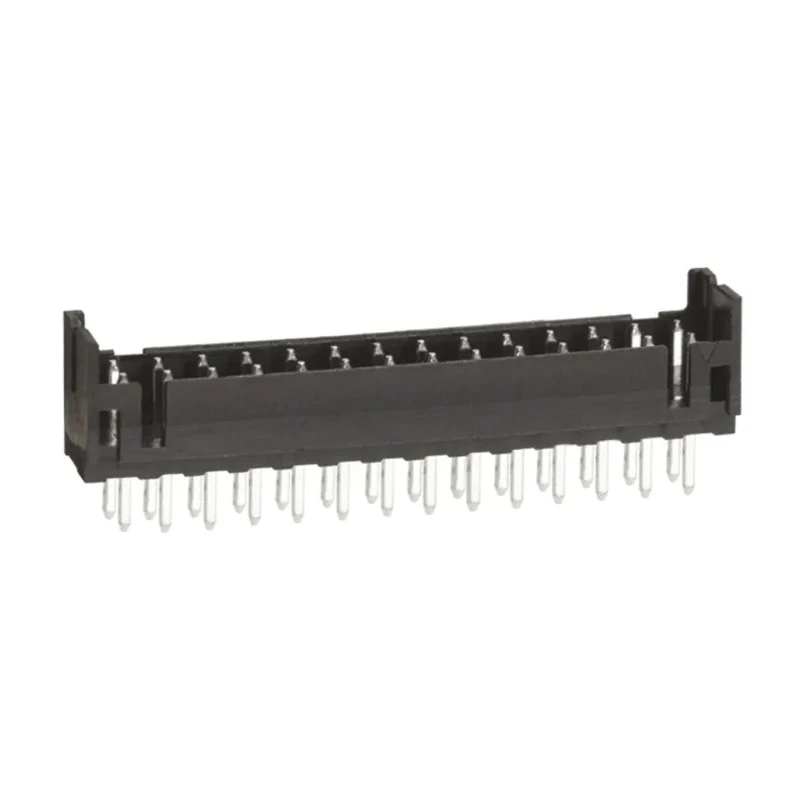

Hirose DF11 Series Straight Through Hole PCB Header 28 Contact 2 mm Pitch 2 Row Shrouded DF11

Hirose DF11 Series Straight Through Hole PCB Header DF11 with 28 contacts, 2 mm pitch, and 2 rows is engineered for efficient and space-saving interconnection in electronic equipment.

This connector features a robust polyamide housing and a shrouded design that includes guide ribs to prevent incorrect insertion and damage due to twisting. The compact 5 mm depth allows a double row configuration in the space of a single row connector.

The copper alloy contacts plated with tin ensure reliable electrical performance with a current rating of 2A and maximum operating voltage of 250V. The termination type is solder, with male contact gender, designed for through hole mounting, providing secure mechanical and electrical connection on PCBs.

The locking mechanism enhances connection security, preventing mating disengagement during application use. Metal fittings on SMT versions (not included here) increase PCB retention and prevent solder peeling.

Ideal for a broad spectrum of industrial and commercial applications, including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments, this PCB header ensures reliability and space efficiency.

Compact 2 mm pitch with 28 contacts in 2 rows improves signal density while saving PCB space. Durable polyamide housing enhances mechanical robustness and heat resistance. Shrouded with guide ribs protects against incorrect mating and mechanical stress.

Through hole mounting provides strong soldered connection for long-term use. Copper alloy contacts with tin plating ensure excellent electrical conductivity and resistance to corrosion. Wide operating temperature range (-30°C to 85°C) suits varied environmental conditions.

Current rating of 2A and voltage rating up to 250V support diverse electronic requirements. Male contact gender with solder termination offers reliable electrical interface. Locking mechanism secures connections during vibration or movement.

Versatile application potential across industrial, consumer electronics, and automotive fields. Explore EnvMart's wide range of PCB Header connectors and related electronic components to meet your diverse industrial and commercial needs.
