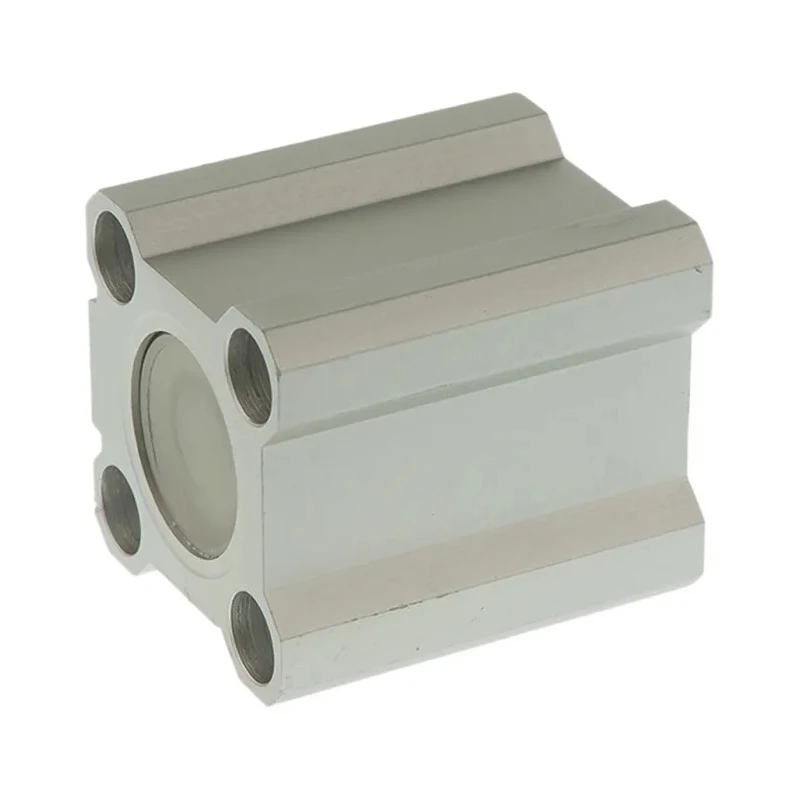

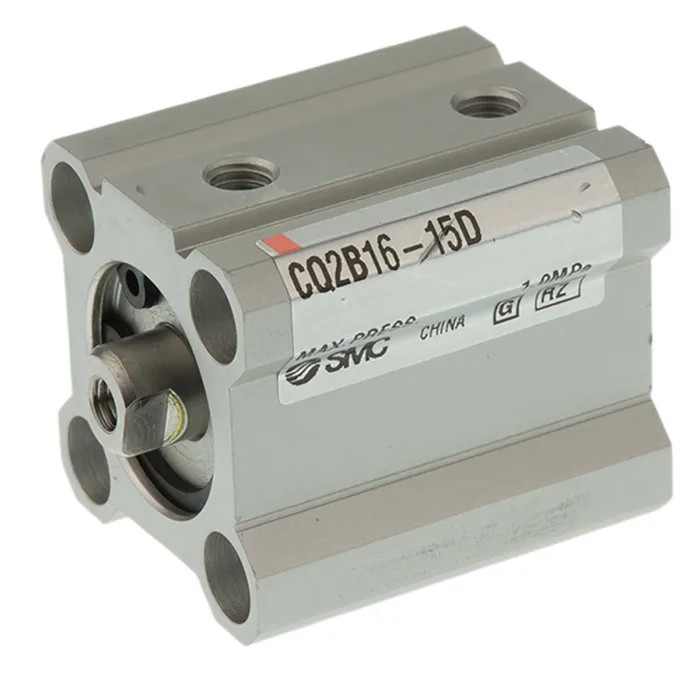

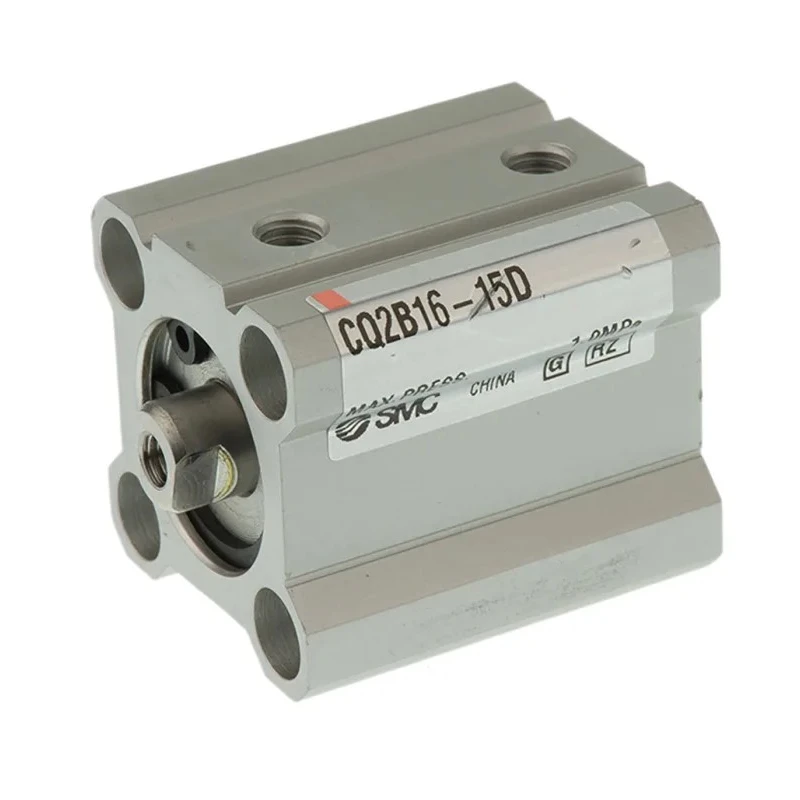

SMC Pneumatic Compact Cylinder Double Acting 16mm Bore, 15mm Stroke CQ2 Series CQ2B16-15D
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 29mm |
| Length | 37mm |
| Model | CQ2B16-15D |
| Gross Weight | 59g |
| Width | 29mm |
| Mount Type | Through Hole |
| Series | CQ2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 15mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
Key Features
- Constructed from durable aluminium alloy for lightweight strength.
- Double acting piston with single rod and female metric thread end.
- Maximum operating pressure of 1 MPa suitable for various pneumatic systems.
- Operating temperature range from -10°C to +70°C ensures reliability in diverse environments.
- Compact dimensions with 37mm length, 29mm width and height for space-saving installation.
- Maximum piston speed up to 500 mm/s for fast cycling operations.
- Through hole mounting type for secure and flexible assembly.
- Equipped with magnetic piston to enable use with solid state switches.
Product Description
SMC CQ2B16-15D Pneumatic Compact Cylinder is a precision-engineered double acting pneumatic actuator featuring a 16mm bore and 15mm stroke from the CQ2 Series. Designed with an aluminium alloy body, it offers a lightweight yet robust solution optimized for industrial pneumatic applications where space and weight are critical.
This model utilizes a single rod type with female metric threaded piston rod end, suitable for diverse mounting configurations. It operates efficiently within a 1 MPa maximum pressure rating and delivers rapid piston speeds up to 500 mm/s, ensuring quick and responsive actuation.
The cylinder supports a temperature range from -10°C to +70°C, allowing it to function reliably across varying environmental conditions without requiring lubrication, thanks to its nitrile seals. The through hole mounting provides secure attachment options, and the compact dimensions of length 37mm, width and height 29mm make it ideal for confined spaces.
The magnetic piston design enables compatibility with solid state switches, expanding its utility in automated pneumatic systems. Weighing just 59 grams, the cylinder is easy to integrate into existing machinery or equipment for applications in manufacturing, automation, robotics, HVAC systems, and laboratory setups.
Durable aluminium alloy construction provides strength and weight savings. Double acting function allows reliable forward and return stroke control. Through hole mount enables flexible installation options. Magnetic piston compatible with solid state switches enhances functionality.
Wide temperature range ensures year-round performance in industrial environments. Compact size supports integration into limited space systems. High maximum operating pressure and piston speed for demanding applications.
Maintenance free with nitrile seals and no lubrication requirement. Suitable for pneumatic piston rod cylinder applications in automation and fluid power industries. Explore the range of SMC Pneumatic Cylinders on EnvMart to find compatible actuators for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa, making it suitable for various pneumatic systems.
This cylinder has a length of 37mm, a width of 29mm, and a height of 29mm, allowing for compact installation in tight spaces.
The stroke length of this pneumatic cylinder is 15mm, providing effective actuation in applications.
The bore diameter of this cylinder is 16mm, which contributes to its performance in pneumatic applications.
It operates effectively within a temperature range of -10°C to +70°C, ensuring reliability across various environments.
This model utilizes a through hole mounting type, which allows for secure and flexible assembly options.
The body of this pneumatic cylinder is constructed from aluminium alloy, providing a lightweight yet strong solution.
The maximum piston speed is up to 500 mm/s, facilitating fast cycling operations in various applications.
Yes, this model is maintenance-free due to its nitrile seals, which do not require lubrication.
It features a single rod type with a female metric threaded piston rod end, suitable for diverse mounting configurations.
This cylinder is suitable for applications in manufacturing, automation, robotics, HVAC systems, and laboratory setups.
Yes, it is equipped with a magnetic piston, enabling compatibility with solid state switches for enhanced functionality.
