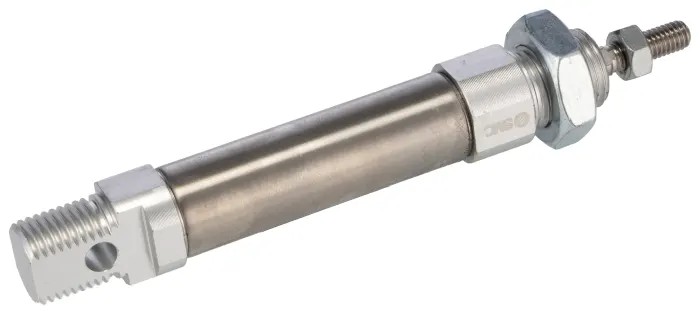

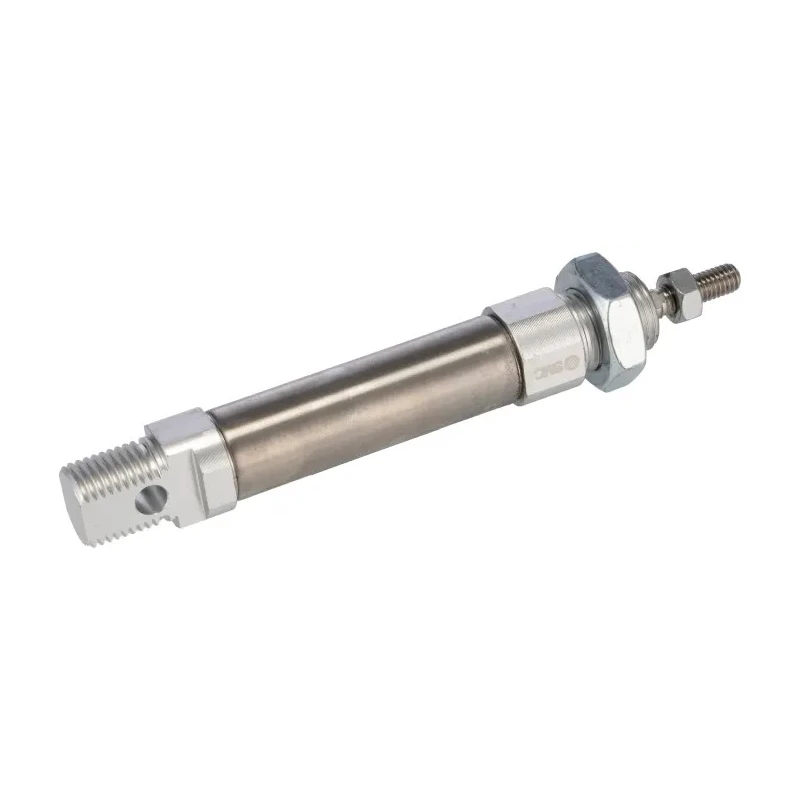

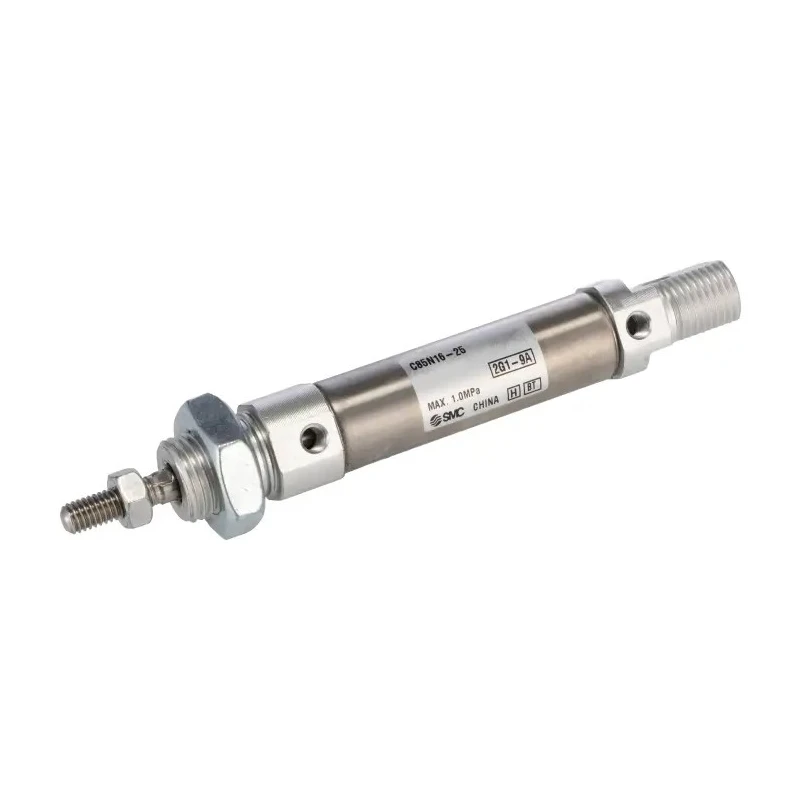

SMC 16 mm Bore Pneumatic Piston Rod Cylinder, Double Acting, Rubber Cushioned, Aluminium Alloy Body, 25 mm Stroke C85N16-25

SMC C85N16-25 pneumatic piston rod cylinder is engineered with a 16 mm bore and 25 mm stroke length, ensuring precise actuation for a wide range of industrial automation tasks. The double acting design allows efficient piston movement in both forward and return strokes, enhancing control and responsiveness.

Constructed with a durable aluminium alloy body, this cylinder incorporates rubber cushioning which minimizes impact noise and reduces mechanical wear, thus extending service life. The compact length of 136 mm and lightweight nature (approximately 109 g) facilitate easier integration in automation systems where space and weight are critical factors.

The cylinder features both ends tapped mounts and utilizes M5 connections for pneumatic input and output, making it highly adaptable for various installation configurations. It operates reliably within a temperature range up to 80°C and adheres to RoHS compliance standards, ensuring quality and environmental safety.

With a theoretical force output of approximately 100.6 N during the advance stroke at half maximum pressure (0.5 MPa), it is suitable for applications requiring moderate pushing and lifting forces. Typical uses include assembly line automation, robotic arm actuation, efficient pick-and-place operations, and automated packaging systems.

Double acting cylinder provides effective operation in both piston directions. Rubber cushioning reduces noise and wear, enhancing lifetime performance. Aluminium alloy body and lightweight construction support easy integration.

Both ends tapped mounting ensures flexible installation options. Operational temperature range up to 80°C suits varied working environments. Maximum piston speed of 1500 mm/s enables fast actuation cycles. Compliant with RoHS standards and compatible with M5 pneumatic ports.

Produces approximately 100.6 N advance stroke force at 0.5 MPa pressure. Ideal for industrial automation, robotics, pick-and-place, and packaging machinery.
