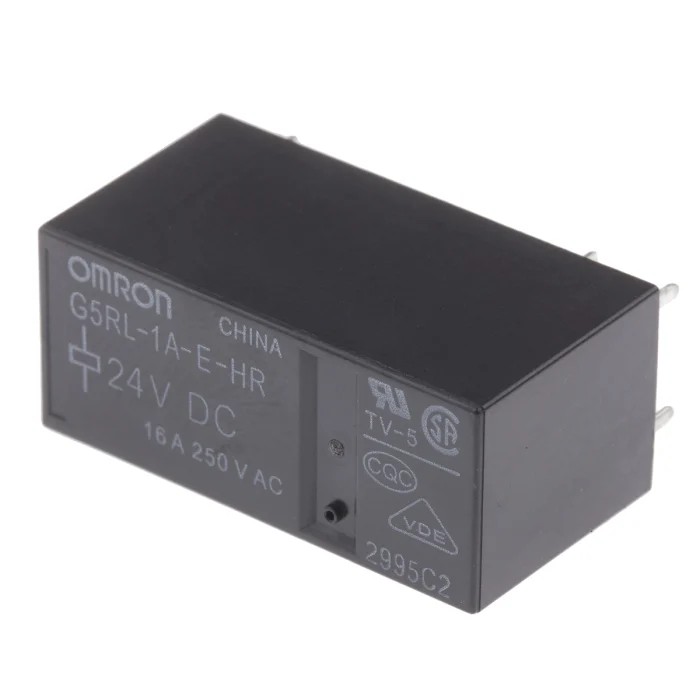

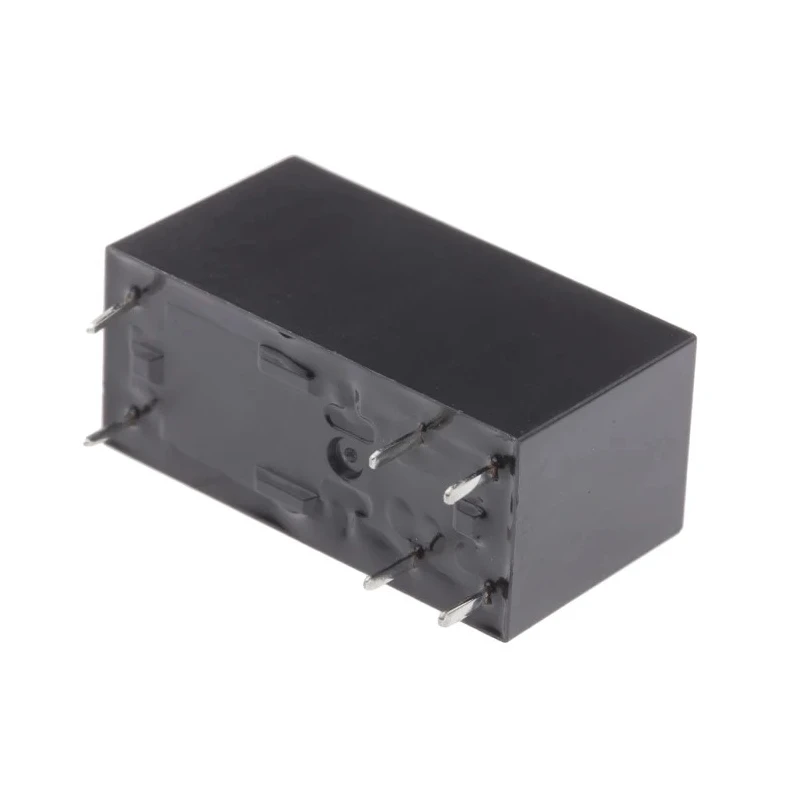

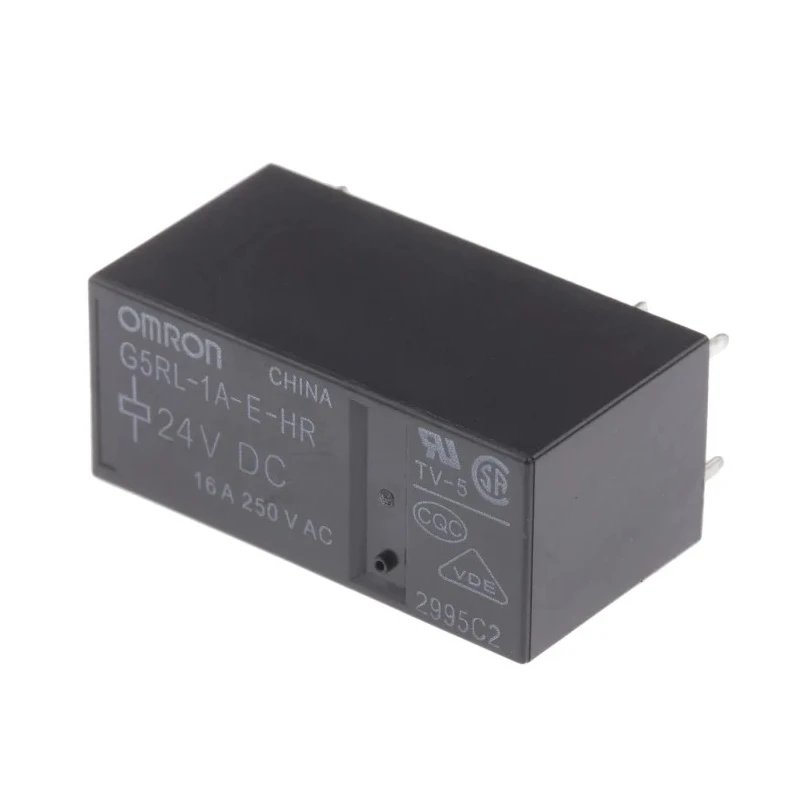

Omron PCB Power Relay 24V dc Coil 16A Switching Current SPST G5RL-1A-E-HR DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1A-E-HR DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Low Profile | 15.7mm max height |
| Standards/Approvals | RoHS, CSA, EN, UL, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.75W |
Key Features
- Designed for PCB mounting with through hole terminal type for secure connection.
- Operates within an ambient temperature range of -40°C to 85°C for versatile industrial application.
- Low coil power consumption of 0.75W ensures energy efficiency.
- Compact dimensions with a length of 29mm, width of 12.7mm, and height of 15.7mm support space-saving designs.
- Silver alloy contact material provides high conductivity and durability.
- Complies with RoHS, CSA, EN, UL, and VDE standards ensuring safety and quality.
- Switching capability includes 24V dc and up to 250V ac voltage.
- Available with coil resistance of 1.4 kΩ for stable operation.
Product Description
Omron G5RL-1A-E-HR DC24 PCB Power Relay is a high performance power relay designed for efficient switching in electronic and electrical applications. It features a 24V dc coil voltage and supports a switching current up to 16A with a single pole single throw (SPST) contact configuration.
This relay is optimized for PCB mounting with a through hole terminal type, making it ideal for integration into compact electronic systems. Its silver alloy contacts ensure reliable conductivity and long service life under demanding conditions.
Equipped with a coil power rating of 0.75W and coil resistance of 1.4kΩ, it delivers stable and energy-efficient coil operation. The relay supports switching voltages of 24V dc and 250V ac, making it suitable for a broad range of electrical loads.

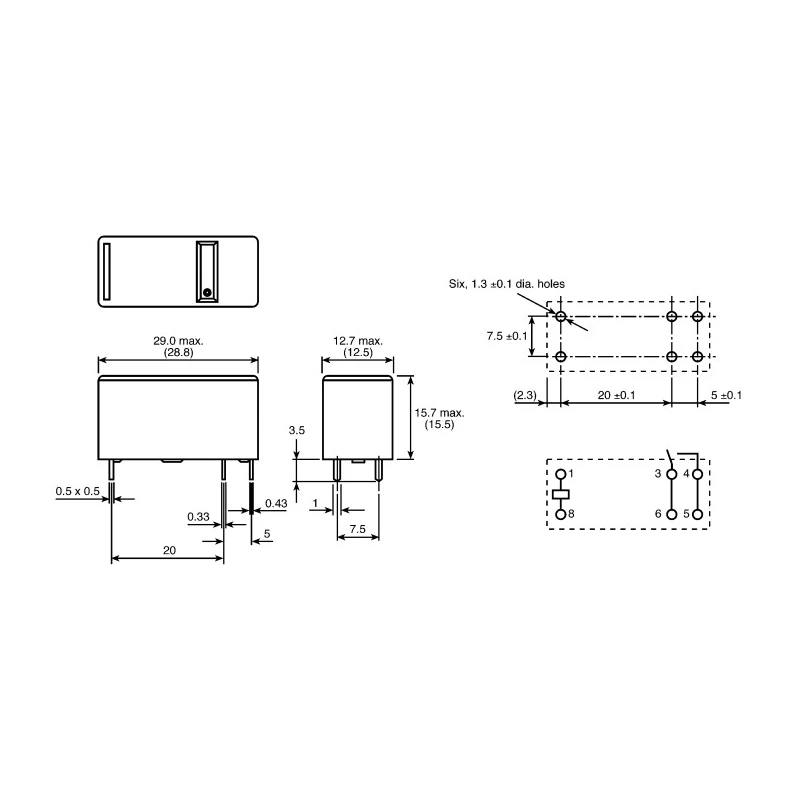

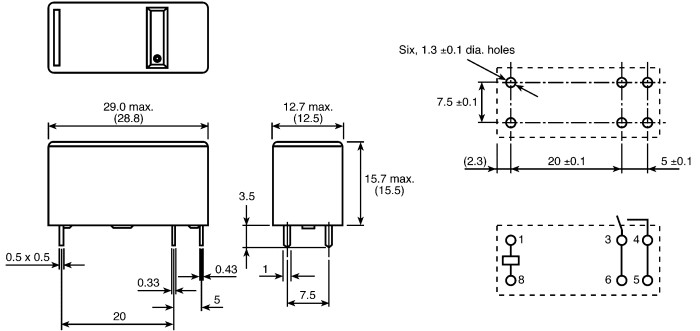

The compact footprint, with dimensions of 29mm length, 12.7mm width, and a low profile height of 15.7mm, allows for space-efficient design in automated systems. Its operating temperature range from -40°C to 85°C enables deployment in harsh industrial, commercial, and HVAC environments.
Omron’s G5RL series meets international safety and quality standards such as RoHS, CSA, EN, UL, and VDE, ensuring compliance and reliability for industrial automation, manufacturing control, power distribution, and signal conditioning applications.
Designed for PCB mounting with through hole terminal type for secure connection. Operates within an ambient temperature range of -40°C to 85°C for versatile industrial application. Low coil power consumption of 0.75W ensures energy efficiency.
Compact dimensions with a length of 29mm, width of 12.7mm, and height of 15.7mm support space-saving designs. Silver alloy contact material provides high conductivity and durability. Complies with RoHS, CSA, EN, UL, and VDE standards ensuring safety and quality.
Switching capability includes 24V dc and up to 250V ac voltage. Available with coil resistance of 1.4 kΩ for stable operation.
This power relay is ideal for industrial control systems, automation equipment, HVAC control units, power supply units, and electrical instrumentation where reliable switching performance and long operational life are required.
Explore more Power Relays and electronic components on EnvMart to enhance your projects and production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current capacity of up to 16A.
This model has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil voltage for this power relay is 24V dc.
It features a single pole single throw (SPST) contact configuration.
The coil resistance is 1.4 kΩ, which supports stable operation.
It operates within an ambient temperature range of -40°C to 85°C.
The relay complies with RoHS, CSA, EN, UL, and VDE standards.
The coil power consumption is 0.75W, ensuring energy efficiency.
It features a through hole terminal type for secure PCB mounting.
The maximum switching voltage for AC applications is 250V ac.
The contacts are made of silver alloy, providing high conductivity.
This relay is suitable for industrial control systems, automation equipment, HVAC control units, and power supply units.
