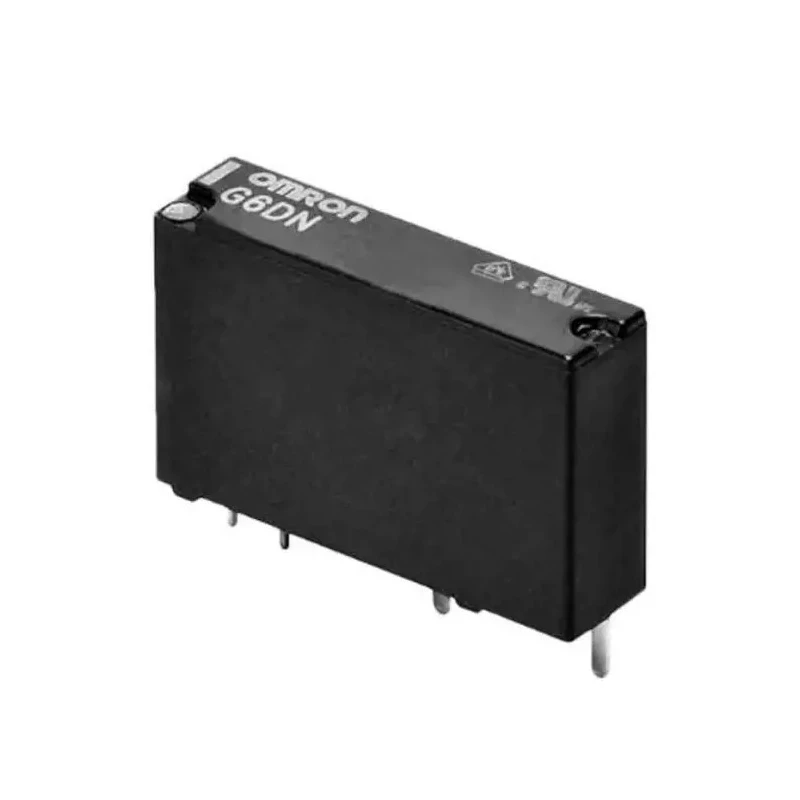

Omron PCB Power Relay 12V DC Coil 5A Switching Current SPST G6DN-1A DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 20mm |
| Model | G6DN-1A DC12 |
| Width | 5.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 110mW |
Key Features
- The relay operates at a coil voltage of 12V DC.
- It features a single pole single throw (SPST) contact configuration.
- Supports a switching current of up to 5A for reliable power switching.
- Capable of switching AC voltage up to 277V and DC voltage up to 125V.
- PCB mounting type with PCB pin terminals for easy integration.
- Coil resistance is 800 Ohms with low coil power consumption of 110mW.
- Contact material is silver alloy ensuring low contact resistance of 100 milliohms.
- Wide operating temperature range from -40°C to 90°C.
Product Description
Omron G6DN-1A DC12 PCB Power Relay offers efficient and reliable switching with a 12V DC coil and a maximum switching current of 5 amperes. The relay utilizes a single pole single throw (SPST) contact configuration ideal for programming controller outputs, temperature controllers, building automation, and other control system applications.
This low power relay consumes only 110mW at the coil and has a coil resistance of 800 ohms, making it suitable for energy-efficient operations. It supports switching of AC voltages up to 277 volts and DC voltages up to 125 volts, providing versatility for various electronic circuit demands.
The relay features a compact design with dimensions measuring 20mm length, 5.1mm width, and 12.5mm height, designed for easy PCB mounting with PCB pin terminals. Its contact material of silver alloy ensures good conductivity and longevity, with a minimal contact resistance of 100 milliohms.
Built to withstand harsh environmental conditions, it operates reliably over a temperature range of -40°C to 90°C, supporting operational humidity from 5% to 85%. The product complies with RoHS standards, ensuring environmental safety and reduced hazardous substances.
Manufactured in Japan, the Omron G6DN-1A DC12 Power Relay is engineered for industrial, laboratory, HVAC, manufacturing, and automation system use cases demanding precise and durable power switching solutions.
The relay operates at a coil voltage of 12V DC. Features SPST contact configuration for single circuit switching. Supports switching currents up to 5A suitable for moderate loads. Designed for PCB mounting with secure PCB pin terminals.
Compact dimensions facilitate integration into various electronic assemblies. Low coil power consumption of 110mW enhances energy efficiency. Silver alloy contacts provide low resistance and durability. Range of operating temperatures from -40°C to 90°C ensures reliability.
RoHS compliant for environmentally responsible applications. Explore the Omron product range and other Power Relays within the Electronics & Electricals category on EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of up to 5A.
This relay features a single pole single throw (SPST) contact configuration.
The dimensions of this relay are 20mm in length, 5.1mm in width, and 12.5mm in height.
The coil resistance is 800 ohms.
It can switch AC voltages up to 277V and DC voltages up to 125V.
The contact material is silver alloy, which ensures low contact resistance.
It operates reliably over a temperature range from -40°C to 90°C.
The coil has a low power consumption of 110mW.
It is designed for PCB mounting with PCB pin terminals for easy integration.
The relay complies with RoHS standards, ensuring environmental safety.
It is manufactured in Japan.
