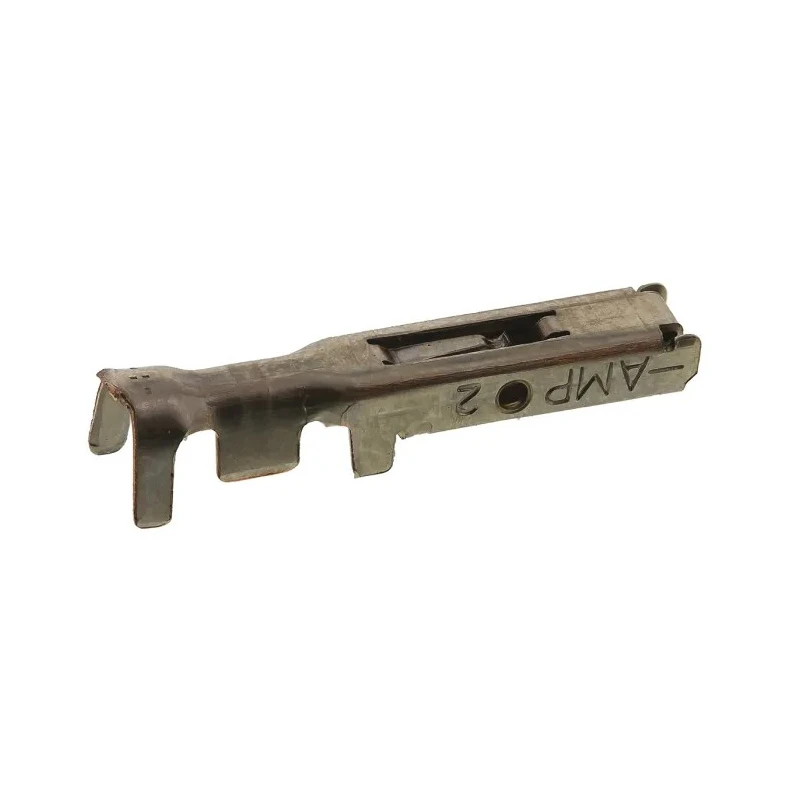

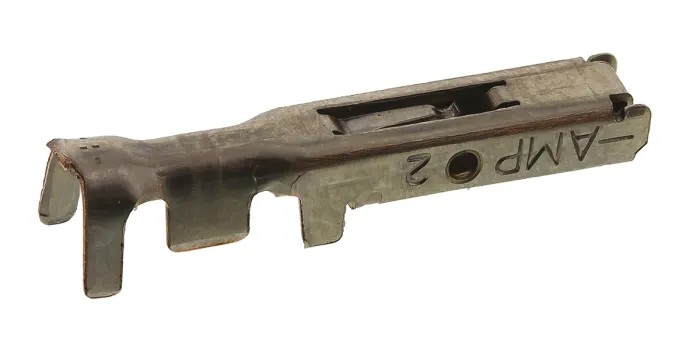

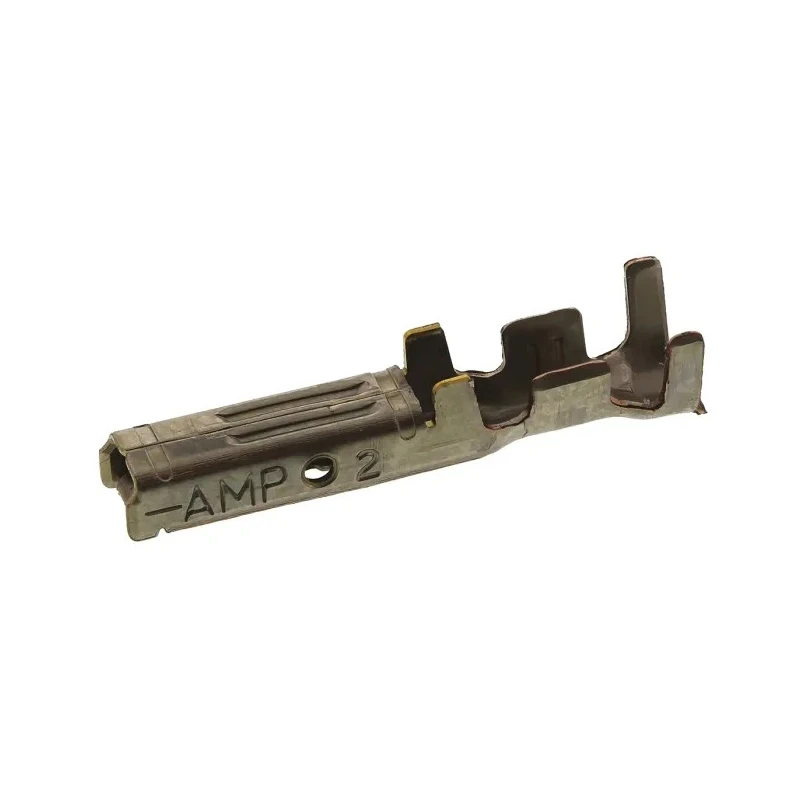

TE Connectivity Dynamic 3000 Series Female Crimp Terminal, 20 AWG Min Crimp, 16 AWG Max, 15A, Gold Plating, Copper 175196-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 21.8mm |
| Model | 175196-2 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Compatible with Dynamic 3000 Connector Housing.
- Designed for female gender contact applications.
- Made from durable copper alloy material.
- Features gold plated contacts ensuring corrosion resistance.
- Supports wire range from 20 AWG (0.5mm²) to 16 AWG (1.25mm²).
- Termination type is crimp for secure wire connection.
- Operates reliably between -55°C and 105°C temperature range.
- Contact length of 21.8 mm with twist resistant box style design.
Product Description
TE Connectivity 175196-2 Dynamic 3000 Series Female Crimp Terminal is a high-quality electrical connector contact designed for industrial machinery and combined signal and power applications. It supports a current capacity of 15A and is suitable for wire gauges ranging from 20 AWG (minimum) to 16 AWG (maximum), corresponding to 0.5mm² to 1.25mm² wire sizes. The contact features a gold plating over copper alloy material ensuring robust electrical conduction and corrosion resistance.
The crimp termination type provides a secure and reliable wire connection optimized for use with Dynamic 3000 Connector Housing products. These connectors feature a twist resistant box style construction with three points of contact, increasing electrical reliability and mechanical stability. The contact length is 21.8 mm, suitable for integration into various industrial electronic component assemblies.
Operating temperature ranges from -55°C to 105°C, enabling use in diverse environmental conditions. Two pressure variants are available: standard pressure optimized for numerous insertion cycles and high pressure designed for high vibration environments. Once inserted, a lance mechanism within the housing secures the contact with an audible click, ensuring stable locking.
This product is manufactured in China under TE Connectivity's high standards. It does not carry specific approvals but meets general industrial quality expectations. It is ideal for combined power and signal routes in machinery within industrial, laboratory, manufacturing, and automation sectors.
Compatible with Dynamic 3000 Connector Housing. Female gender contact type. Copper alloy contact material with gold plating. Supports 15A electrical current. 20 AWG to 16 AWG wire range. Crimp termination for secure connections.
Operating temperature range: -55°C to 105°C. Length: 21.8 mm. Three point contact design for reliability. Suitable for industrial combined signal and power applications. Explore more advanced electronic components and connectors in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current capacity of 15A.
It is compatible with wire sizes ranging from 20 AWG (0.5mm²) to 16 AWG (1.25mm²).
The operating temperature range for this terminal is from -55°C to 105°C.
This model uses a crimp termination type for secure wire connections.
The contact length of this terminal is 21.8 mm.
It is made from a copper alloy material with gold plating for corrosion resistance.
Yes, it is designed for use with Dynamic 3000 Connector Housing.
It features a twist resistant box style design with three points of contact, increasing electrical reliability and mechanical stability.
This terminal is of the female gender contact type.
It is suitable for use in industrial, laboratory, manufacturing, and automation sectors for combined power and signal applications.
This product is manufactured in China under TE Connectivity's high standards.
The lance mechanism within the housing secures the contact with an audible click, ensuring stable locking once inserted.
