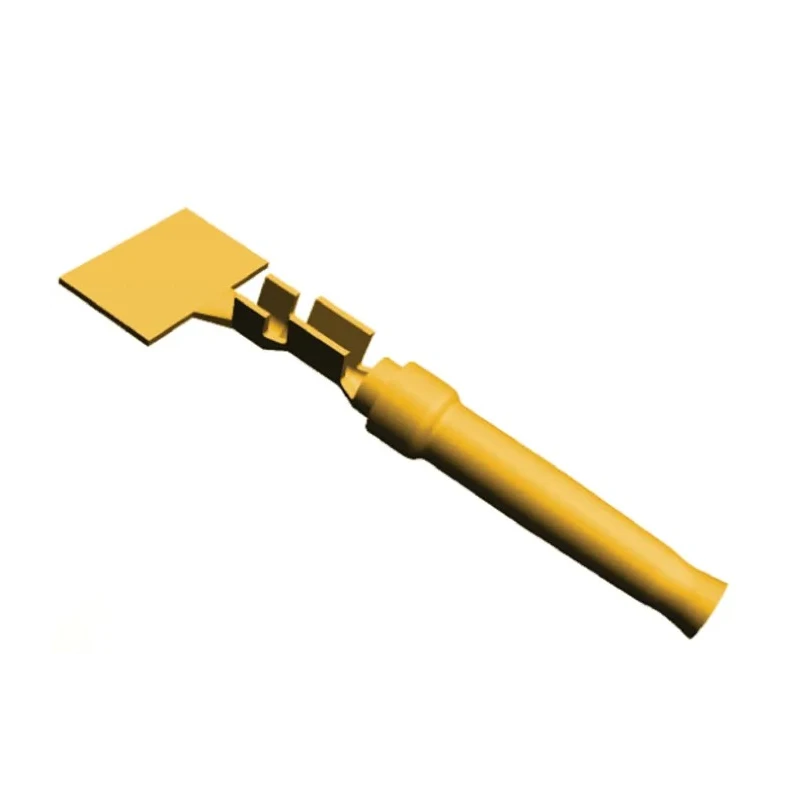

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel Socket 20 AWG 66504-9

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel Socket 20 AWG 66504-9

Name: TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel Socket 20 AWG 66504-9
Brand: TE Connectivity
SKU: 210242
Price: 0.39 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	2A
Length	14.1mm
Model	66504-9
Gender	Female
Contact Material	Phosphor Bronze
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Socket
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)

Key Features

This female contact features a crimp termination for reliable electrical connection.
Gold plating over nickel ensures superior corrosion resistance and conductivity.
Compatible with TE Connectivity AMPLIMITE D-Sub connector systems size 20DF.
Supports wire sizes ranging from 24 AWG to 20 AWG (0.2mm² to 0.6mm²).
Maximum contact resistance of 15 milliohms ensures signal integrity.
Designed for currents up to 2 amperes.
Contact length measures 14.1 millimeters with 0.04 inch (1.02 mm) pin diameter.
Suitable for industrial, electronic, and power connector applications in manufacturing setups.

Product Description

TE Connectivity 66504-9 AMPLIMITE HDP-20 Series size 20 female crimp D-Sub connector contact features gold plating over nickel on phosphor bronze socket contacts to provide durable, reliable connections. Designed specifically for the AMPLIMITE D-Sub connector system, this size 20DF contact supports wire gauges from 24 AWG up to 20 AWG, suitable for a wide range of electronic and industrial power connector applications.

The crimp termination ensures secure wire attachment while maintaining electrical integrity with a maximum contact resistance of 15 milliohms. Its robust construction supports currents up to 2 A, making it ideal for signal transmission where corrosion resistance and contact reliability are critical.

The contact measures 14.1 mm in length with a pin diameter of 1.02 mm (0.04 inches), ensuring compatibility with standard AMPLIMITE connectors. These contacts are gold plated over nickel to prevent oxidation, extending service life in demanding environments.

For efficient installation, the contacts are compatible with TE Connectivity crimp tool 446-816 and insertion/extraction tool 446-822, facilitating assembly in manufacturing or repair settings.

This product is suitable for use in industrial automation, electronic equipment, power distribution panels, and communication devices where reliable connector contacts are essential.

This female contact features a crimp termination for reliable electrical connection. Gold plating over nickel ensures superior corrosion resistance and conductivity. Compatible with TE Connectivity AMPLIMITE D-Sub connector systems size 20DF.

Supports wire sizes ranging from 24 AWG to 20 AWG (0.2mm² to 0.6mm²). Maximum contact resistance of 15 milliohms ensures signal integrity. Designed for currents up to 2 amperes. Contact length measures 14.1 millimeters with 0.04 inch (1.02 mm) pin diameter.

Suitable for industrial, electronic, and power connector applications in manufacturing setups. Compatible with recommended crimp and insertion/extraction tools for efficient assembly. Explore more D-Sub Connector Contacts and accessories on EnvMart to find the perfect fit for your electrical and electronic projects.
