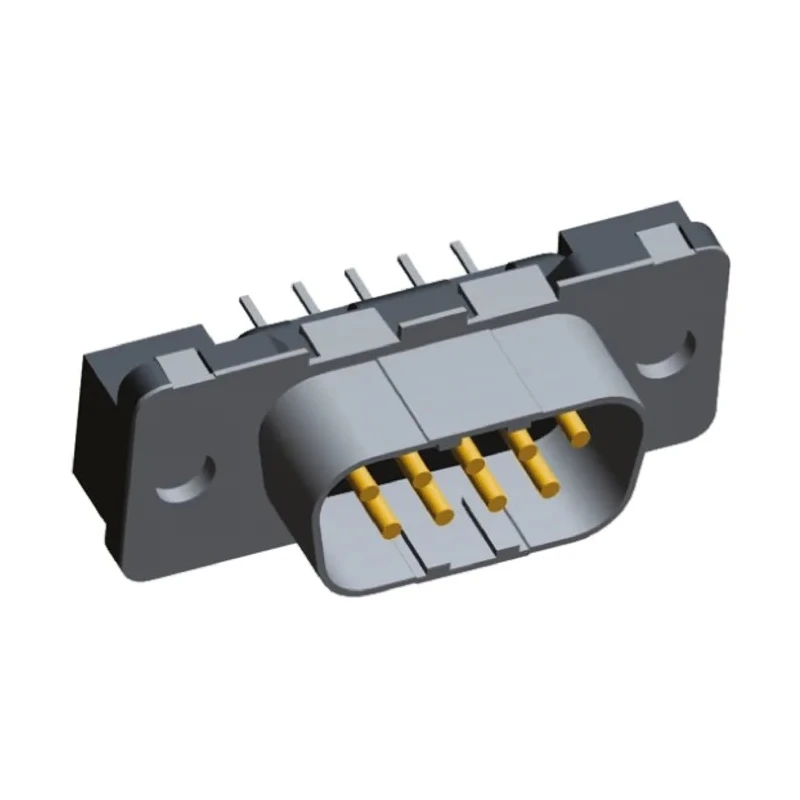

TE Connectivity AMPLIMITE HDP-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 1-338309-2
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- Features 9 male contacts designed for high current capacity of 6 amperes.
- Constructed with polyethylene terephthalate housing for durability and insulation.
- Supports through hole mounting with 4 to 40 UNC threaded inserts for secure attachment.
- Operates reliably in temperature ranges from -55°C to 105°C.
- Contact material is phosphor bronze with gold over nickel plating for corrosion resistance.
- Designed as a straight orientation connector suitable for PCB mounting.
- Termination is by solder, ensuring robust electrical and mechanical connection.
Product Description
TE Connectivity 1-338309-2 AMPLIMITE HDP-20 9 Way Straight Through Hole D-Sub Connector with 2.74 mm pitch and 4 to 40 UNC threaded mounting provides a durable and high-performance solution for electronic and industrial applications.
This male connector features 9 gold over nickel plated phosphor bronze contacts designed to carry currents up to 6 amperes. Its polyethylene terephthalate housing offers excellent insulation and mechanical stability. The connector is designed for through hole mounting using the included 4 to 40 UNC threaded inserts, providing secure and reliable attachment to printed circuit boards.
Operating temperature range from -55°C to 105°C allows this connector to perform well in harsh environmental conditions. The straight orientation of the connector along with solder termination type ensures easy assembly and effective signal transmission.
The AMPLIMITE HDP-20 series is widely used in industrial, electronic, laboratory, manufacturing, and telecommunication equipment where robust connection integrity and longevity are required.
Features 9 male contacts with 6A current capacity. Polyethylene terephthalate housing for enhanced durability. Through hole mount type with 4 to 40 UNC threaded inserts. Gold plated phosphor bronze contacts for corrosion resistance.
Reliable solder termination ensuring firm connections. Operating temperature range from -55°C to 105°C. Straight orientation suitable for PCB mounting. Ideal for industrial and electronic component applications.
Explore more high-quality connectors and electronic components in the D-Sub Connector category at EnvMart to meet your project requirements with trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 9 male contacts designed to carry a current capacity of 6 amperes.
It operates reliably in temperature ranges from -55°C to 105°C.
The housing is constructed from polyethylene terephthalate, which provides durability and insulation.
This model supports through hole mounting with 4 to 40 UNC threaded inserts for secure attachment.
It features solder termination, ensuring a robust electrical and mechanical connection.
The pitch of the contacts is 2.74 mm.
The contacts are made of phosphor bronze and are plated with gold over nickel for corrosion resistance.
This D-Sub connector features a total of 9 male contacts.
It is designed with a straight orientation suitable for PCB mounting.
The country of origin for this connector is Poland.
This model is widely used in industrial, electronic, laboratory, manufacturing, and telecommunication equipment.
The connector features male contacts, making it a male connector type.
