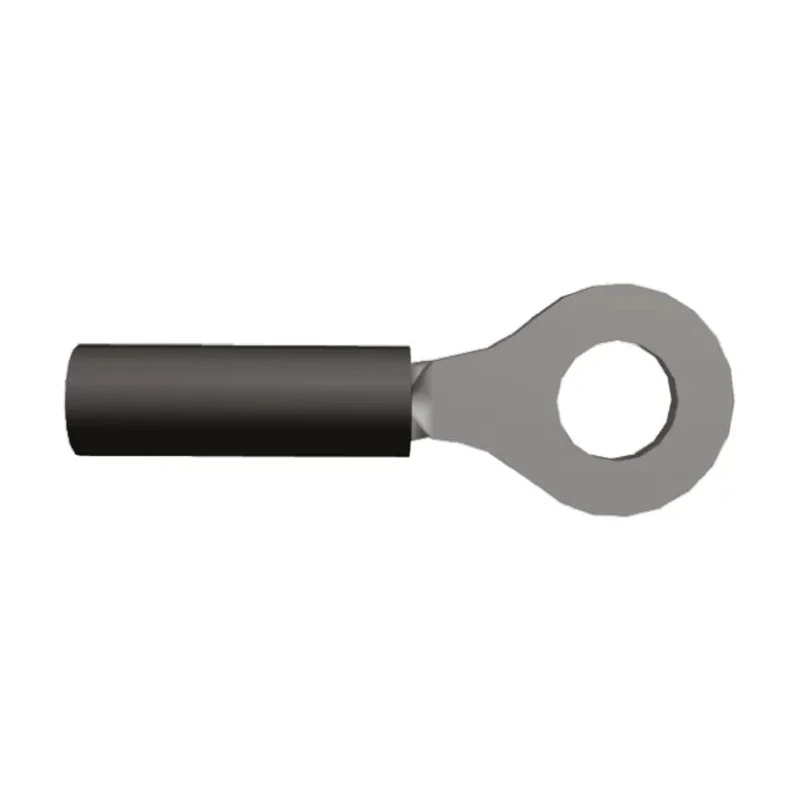

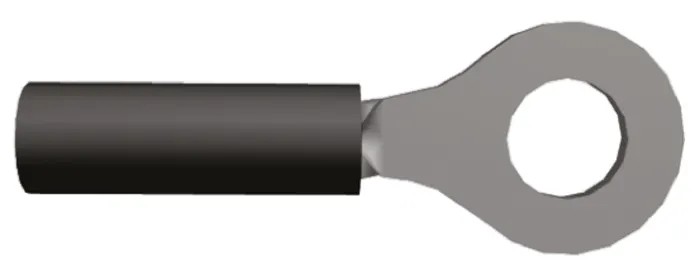

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 24 AWG 22 AWG Wire Size Black 151439
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 151439 |
| Insulation | Insulated |
| Overall Length | 19.98mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Features a copper sleeve offering improved wire insulation support and preventing fraying.
- Equipped with serrations in the wire barrel to enhance contact and tensile strength after crimping.
- Colour-coded nylon sleeve allows for easy wire size and tooling identification.
- Funnelled wire entry design simplifies wire insertion and reduces strand damage.
- Meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards for reliable use in various environments.
- Suitable for instrumentation, control systems, lighting, power supplies, panel boxes, transport, lifting equipment, motors, aerospace, and appliances.
- Maximum operating temperature rated at 105°C for harsh application durability.
Product Description
TE Connectivity 151439 PIDG Insulated Ring Terminal is designed for dependable wire termination in industrial, electronic, and aerospace applications. Featuring a precision-formed copper body with tin plating, the terminal ensures high conductivity and corrosion resistance. Its nylon insulation and copper sleeve provide enhanced mechanical durability and protect against fraying, ideal for maintaining connection integrity in demanding environments.
This Ring Terminal accepts wire sizes ranging from 24 AWG to 22 AWG, with a stud size of M3.5, boasting an overall length of 19.98 mm. The serrated barrel offers maximum contact surface area and tensile strength, ensuring a uniform and reliable crimp every time. The funnelled wire entry enhances ease of assembly during high-volume production runs.
Certified to RoHS standards, this terminal supports maximum operating temperatures up to 105°C, making it suitable for applications in controls, power distribution, instrumentation, aerospace, motor assemblies, and more. Its black color coding facilitates quick identification during installation and reduces wiring errors.
Constructed with high conductivity copper body and tin plating for robust electrical contact. Nylon insulation and copper sleeve protect wire and improve mechanical strength. Serrations in barrel maximize contact and tensile strength for secure crimps.
Colour-coded sleeve supports easy identification of wire size and tooling compatibility. Funnelled wire entry design accelerates assembly without wire strand damage. Meets rigorous MIL-T-7928 Type II Class 1 and 2 standards for reliability.
Rated for 105°C maximum operating temperature in industrial environments. Widely used in electronics, automotive, aerospace, and power applications.
This product is an essential component for professional wiring assemblies requiring precision and durability. Browse the EnvMart Electronics Components category to explore more from TE Connectivity and related products for your electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts wire sizes ranging from 24 AWG to 22 AWG.
The maximum operating temperature is rated at 105°C.
It is constructed with high conductivity copper for the contact material and features a nylon insulation with tin plating.
The stud size for this terminal is M3.5.
The overall length of this terminal is 19.98 mm, with an outer ring diameter of 7.14 mm and an inner ring diameter of 3.68 mm.
It meets or exceeds the MIL-T-7928 Type II Class 1 and 2 standards and is certified to RoHS standards.
The funnelled wire entry design simplifies wire insertion and reduces strand damage during assembly.
The serrations in the wire barrel enhance contact and tensile strength after crimping, ensuring a secure connection.
It is suitable for use in instrumentation, control systems, lighting, power supplies, panel boxes, transport, lifting equipment, motors, aerospace, and appliances.
The nylon sleeve is color-coded black for easy identification of wire size and tooling compatibility.
The thickness of this terminal is 0.79 mm.
The country of origin for this terminal is India.
