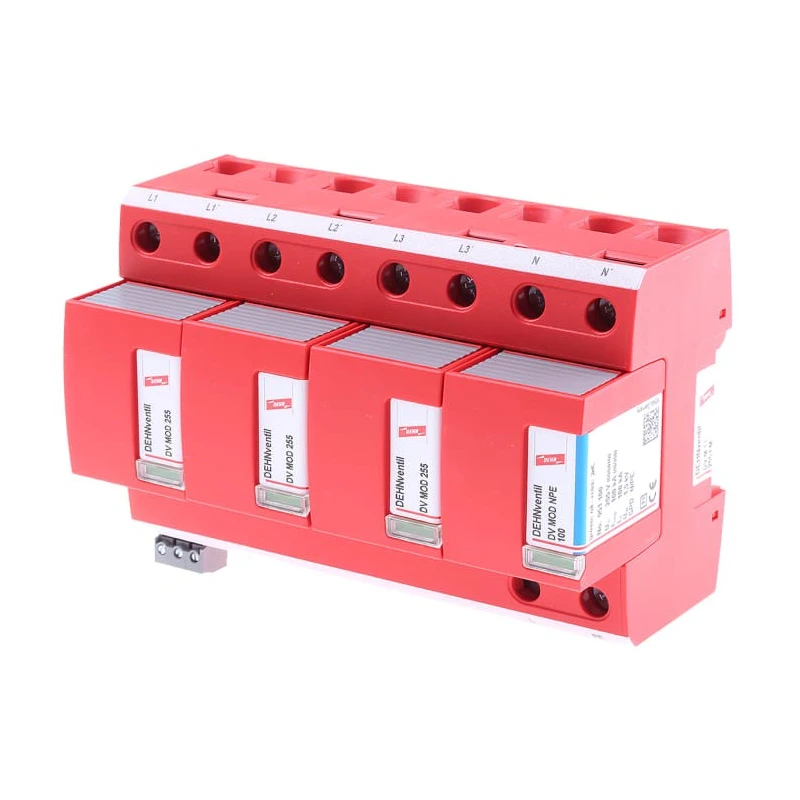

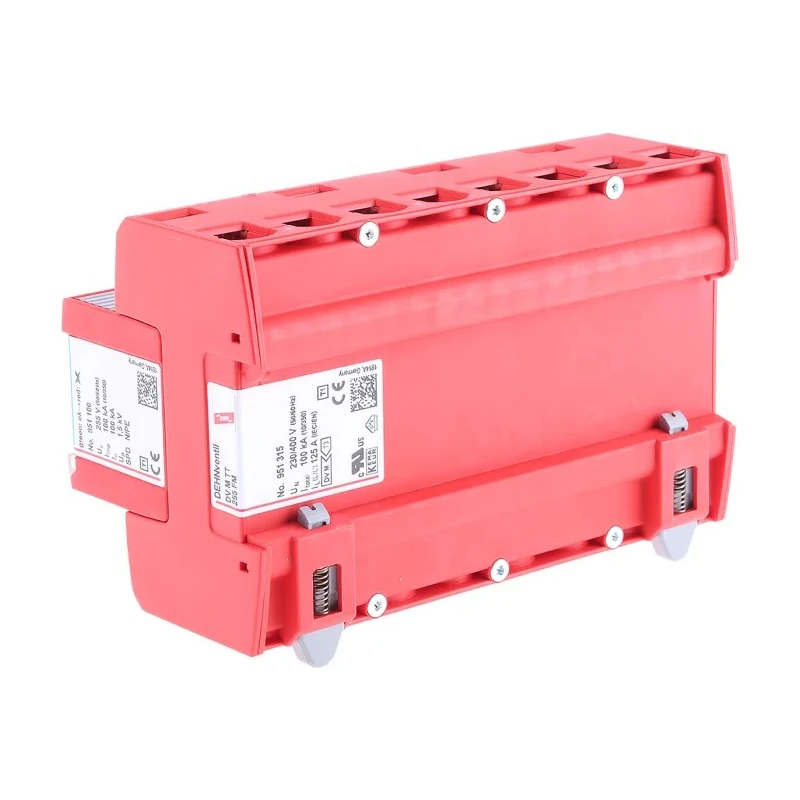

Dehn DV Modular Surge Protector Lightning Arrester 255V AC Maximum Voltage, 100 kA Surge Current, DIN Rail DV M TT 255 FM
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dehn |
| Height | 66mm |
| Length | 90mm |
| Model | DV M TT 255 FM |
| Depth | 144mm |
| Mount Type | DIN Rail |
| Series | DV |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Suppressor Type | Lightning Arrester |
| Maximum Voltage | 255V ac |
| Standards/Approvals | VDE, UL, RoHS, KEMA, VdS |
| Maximum Surge Current | 100kA |
Key Features
- The device offers maximum voltage protection of 255V AC.
- It supports a maximum surge current capacity of 100 kA.
- Suitable for installation on DIN rail for easy integration.
- Operates reliably in temperatures ranging from -40°C to 60°C.
- Equipped with indicators for operating state and fault detection.
- Constructed with a modular design allowing tool-free module replacement.
- Compliant with standards including VDE, UL, RoHS, KEMA, and VdS.
- Compact dimensions of 90 mm length, 66 mm height, and 144 mm depth.
Product Description
Dehn DV M TT 255 FM modular surge protector is a high-performance lightning arrester tailored for industrial and commercial surge protection applications. With a maximum voltage rating of 255V AC and a surge current capacity of 100 kA, this device safeguards electrical installations and sensitive equipment against transient voltage spikes caused by lightning strikes or switching operations.
Designed for DIN rail mounting, it enables easy installation and integration into existing electrical panels. The product operates efficiently across a temperature range from -40°C to 60°C, suitable for diverse environmental conditions.
This surge protector features the DEHNventil technology with combined type 1 and 2 prewired spark gaps that limit follow currents effectively, enhancing system reliability. The RADAX Flow technology minimizes downtime by preventing false fuse trips for currents up to short circuits of 50 kA. Visual indicators and optional remote fault contacts provide clear status monitoring to facilitate maintenance.
The device's modular design allows quick and tool-free replacement of protection modules, ensuring minimal system downtime. Dehn DV M TT 255 FM complies with rigorous international standards such as VDE, UL, RoHS, KEMA, and VdS, reflecting its suitability for professional electrical surge protection.
The device offers maximum voltage protection of 255V AC. It supports a maximum surge current capacity of 100 kA. Operates reliably in temperatures ranging from -40°C to 60°C. Modular design allows easy replacement of protection modules without tools.
Visual operating state and fault indicators enhance maintenance efficiency. Compact DIN rail mount form factor for easy panel integration. Complies with VDE, UL, RoHS, KEMA, and VdS standards ensuring quality. Manufactured in Germany, guaranteeing high production standards.
This surge protector is ideal for industrial, commercial, and electrical infrastructure applications to protect against damaging voltage spikes and enhance system reliability. It is a critical component in lightning and surge protection systems compliant with BS7671 standards and international best practices.
Explore more professional Surge Protection Devices on EnvMart for comprehensive electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this model is 255V AC.
It supports a maximum surge current capacity of 100 kA.
This surge protector operates reliably in temperatures ranging from -40°C to 60°C.
It is designed for DIN rail mounting, allowing for easy installation and integration into electrical panels.
It is equipped with visual indicators for operating state and fault detection, facilitating maintenance.
It features a modular design that allows for tool-free replacement of protection modules.
It complies with several international standards, including VDE, UL, RoHS, KEMA, and VdS.
The dimensions of this model are 90 mm in length, 66 mm in height, and 144 mm in depth.
It functions as a lightning arrester, protecting against transient voltage spikes.
It employs DEHNventil technology with combined type 1 and 2 prewired spark gaps to limit follow currents effectively.
This surge protector is suitable for industrial, commercial, and electrical infrastructure applications to protect against voltage spikes.
It is manufactured in Germany, ensuring adherence to high production standards.
