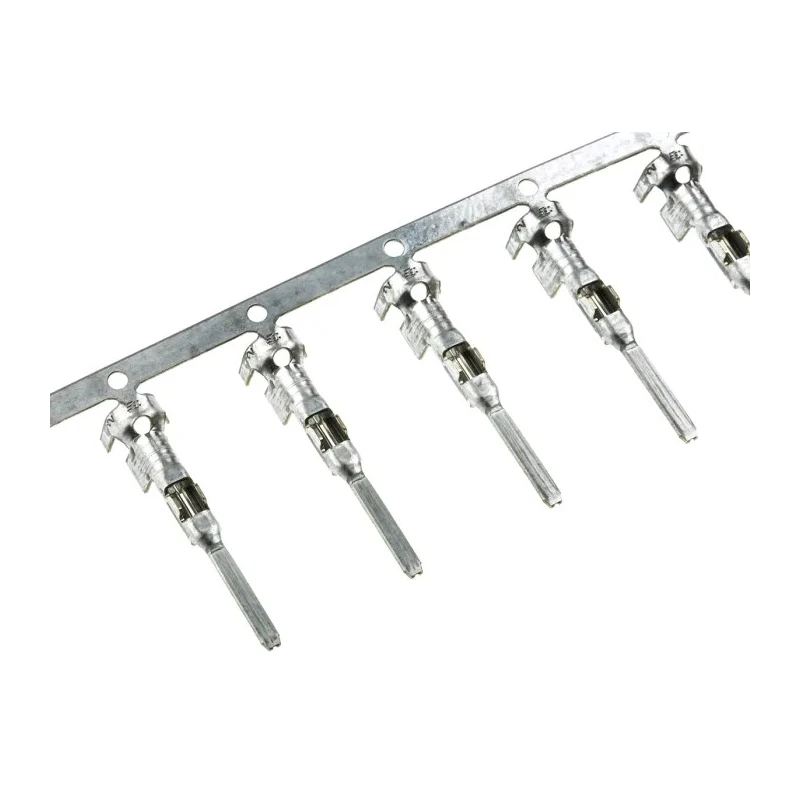

TE Connectivity MINI-MIC Series Male Crimp Terminal for 17-15 AWG Wire, Tin-Plated Brass, 14A Current Rating 282109-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Length | 22.7mm |
| Model | 282109-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 15AWG |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Constructed from tin-plated brass for corrosion resistance and effective conductivity.
- Suitable for use with AMP SUPERSEAL 1.5 Connector Housings.
- Supports a current rating of 14 amperes for robust electrical performance.
- Tab length measures 22.7mm ensuring secure connections.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Designed for automotive, agricultural, and industrial machinery applications.
- Ensures excellent contact resistance of max 30 milliohms for optimum performance.
- Features crimp termination for secure and easy wire attachment.
Product Description
TE Connectivity 282109-1 MINI-MIC Series Male Crimp Terminal is an engineered tab-style crimp terminal suitable for wire sizes ranging from 0.75 mm² (17 AWG) to 1.5 mm² (15 AWG). Constructed from tin-plated brass, this contact ensures corrosion resistance, electrical conductivity, and durability required for demanding environments.
This crimp terminal is designed for use with AMP SUPERSEAL 1.5 connector housings, commonly applied in the automotive industry. Its robust design supports a current capacity of 14 amperes, making it ideal for electrical connections in trucks, buses, off-road vehicles, agricultural, and industrial machinery.
With a length of 22.7 mm, the tab contact provides secure mechanical and electrical connection. It features a termination type of crimp, allowing reliable wire attachment that withstands vibration and high temperatures, operating effectively from -40°C up to 125°C.
The MINI-MIC series emphasizes durability and protection against environmental factors, including waterproof capabilities when used with compatible wire seals. The contact plating with tin ensures minimal contact resistance, specified at a maximum of 30 milliohms, contributing to stable electrical performance.
The design includes a sturdy, reliable construction with materials optimized for electrical and mechanical properties. The SUPERSEAL connectors incorporate a double contact spring and secondary lock, ensuring correct insertion and maintaining IP67 sealing standards in appropriate setups. This makes the 282109-1 contact a reliable solution for sensitive automotive sensor devices, oil pressure senders, and water temperature monitors.
Constructed from tin-plated brass for durability and conductivity. Designed for 17 AWG to 15 AWG wire sizes with crimp termination. Suitable for AMP SUPERSEAL 1.5 series connectors used in harsh automotive environments. Supports 14 A current with excellent contact resistance of max 30 mΩ.
Operating temperature range from -40°C to 125°C for extreme conditions. Length of 22.7 mm for secure connection. Compatible with waterproof designs maintaining IP67 rating with proper wire seals. Ideal for automotive, industrial machinery, and agricultural applications.
Explore TE Connectivity's range of high-quality Crimp Terminals and connectors at EnvMart to ensure reliable electrical connections for professional industrial and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 14 amperes, making it suitable for robust electrical performance in various applications.
It is designed for use with wire sizes ranging from 17 AWG (0.75 mm²) to 15 AWG (1.5 mm²).
The maximum operating temperature for this model is 125°C, allowing it to function effectively in high-temperature environments.
The tab length measures 22.7 mm, ensuring secure connections when used with compatible housings.
It features a crimp termination type, which allows for reliable wire attachment that withstands vibration and high temperatures.
This terminal is suitable for use with AMP SUPERSEAL 1.5 connector housings, commonly applied in automotive environments.
The maximum contact resistance is specified at 30 milliohms, contributing to stable electrical performance.
It is constructed from tin-plated brass, which provides corrosion resistance and effective electrical conductivity.
The minimum operating temperature is -40°C, allowing it to operate effectively in extreme cold conditions.
It is designed for automotive, agricultural, and industrial machinery applications, ensuring reliable electrical connections in these sectors.
The country of origin for this crimp terminal is India.
When used with compatible wire seals, it can maintain IP67 sealing standards, providing protection against environmental factors.
