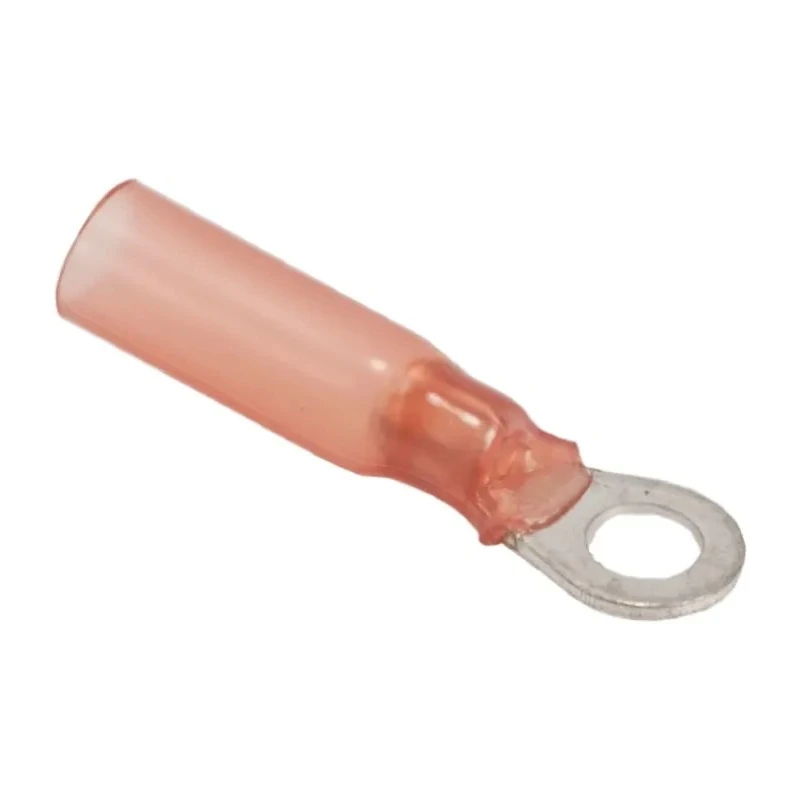

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 22 AWG 16 AWG Wire Size Red 130054
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 130054 |
| Insulation | Insulated |
| Overall Length | 27mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 5.21mm |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper and tin plating for reliable electrical contact.
- Features a durable vinyl insulation sleeve rated 94V-0 for high dielectric strength.
- Serrated inner barrel ensures maximum tensile strength after crimping.
- Funnel entry design facilitates easier wire insertion during installation.
- Suitable for operating temperatures up to 105°C for demanding electrical applications.
- Contains an outer ring diameter of 11.91 mm and inner ring diameter of 5.21 mm for secure stud fit.
- Thickness of 0.79 mm provides robust mechanical strength in connections.
- Designed to accommodate wire sizes from 0.26 mm² to 1.65 mm², equivalent to 22 AWG to 16 AWG.
Product Description
TE Connectivity 130054 PLASTI-GRIP insulated ring terminal is designed for reliable, high-performance electrical connections requiring M6 stud compatibility and wire sizes from 22 AWG to 16 AWG. It features a copper contact with tin plating to provide excellent conductivity and corrosion resistance, encased in a vinyl insulation sleeve that meets a 94V-0 flammability rating and offers superior dielectric strength.
The serrated closed barrel of the ring terminal ensures a secure crimping experience by maximizing electrical contact and mechanical tensile strength. Its funnel-shaped wire entry promotes easy insertion, improving installation efficiency in industrial and commercial electrical wiring applications.
With an outer ring diameter of 11.91 mm and inner ring diameter of 5.21 mm, this terminal is engineered for a tight and stable fit onto an M6 stud. The thickness of the terminal is 0.79 mm, offering robust mechanical durability.
This ring terminal is suitable for environments with maximum operating temperatures up to 105°C, making it ideal for electronics manufacturing, industrial automation, and general electrical installations.
High conductivity copper contact with tin plating for corrosion resistance. 94V-0 rated vinyl insulation sleeve for enhanced dielectric strength. Serrated inner barrel design improves tensile strength after crimping. Funnel entry allows easier wire insertion during assembly.
Designed for wire sizes from 0.26 mm² to 1.65 mm² (22 AWG to 16 AWG). Outer ring diameter of 11.91 mm and inner ring diameter of 5.21 mm for M6 stud compatibility. Terminal thickness of 0.79 mm for reliable mechanical strength.
Maximum operating temperature of 105°C suitable for industrial use.
This TE Connectivity PLASTI-GRIP Ring Terminal is widely used in electrical component manufacturing, power and connector assemblies, electronics repair, and industrial automation setups. It ensures durable and safe wire-to-stud connections in professional electrical environments.
Explore more premium electrical connectors and terminal solutions in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 0.26 mm² to 1.65 mm², equivalent to 22 AWG to 16 AWG.
It is suitable for maximum operating temperatures up to 105°C, making it appropriate for demanding electrical applications.
It features a durable vinyl insulation sleeve rated 94V-0, which provides high dielectric strength.
The outer ring diameter is 11.91 mm, and the inner ring diameter is 5.21 mm, designed for M6 stud compatibility.
The contact is constructed from high conductivity copper with tin plating for reliable electrical contact and corrosion resistance.
The thickness of this terminal is 0.79 mm, providing robust mechanical strength in connections.
It has a funnel entry design that facilitates easier wire insertion, improving installation efficiency.
This terminal meets RoHS standards, ensuring compliance with environmental regulations.
It is part of the PLASTI-GRIP series, known for its reliable electrical connections.
The serrated inner barrel ensures maximum tensile strength after crimping, enhancing the reliability of the connection.
The country of origin for this terminal is India.
It is widely used in electrical component manufacturing, power and connector assemblies, and industrial automation setups.
