| Country of Origin | Taiwan |
|---|---|
| Voltage | 50V dc |
| Capacitance Range | 0.2 pF ‒ 33 pF |
| Brand | Wurth Elektronik |
| Operating Temperature | -55 °C up to + 125 °C |
| Height | 0.5mm |
| Length | 1mm |
| Width | 0.5mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSRF |
| Temperature Coefficient | ±30 ppm/°C |
| Termination | Cu/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | 0.1 pF |
| Capacitance | 3.3pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Dielectric | C0G |
| Suppression Class | Class I |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 25 ‒ 50 V(DC) |
| Sizes | 0201 / 0402 |
| Ceramic | NP0 (Class I) |

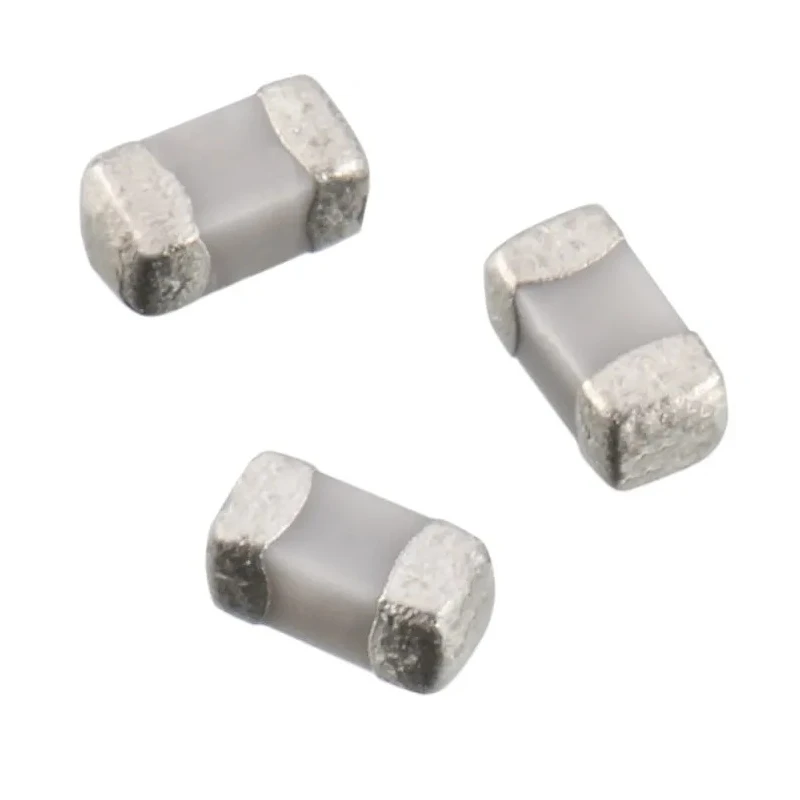

Wurth Elektronik 885392005011 is a 3.3 pF multilayer ceramic capacitor designed for surface mount technology with 50V DC voltage rating and a ceramic C0G dielectric. This component offers a capacitance tolerance of 0.1 pF, making it precise for electronics applications requiring stable capacitance across temperature variations.
Its 0402 package size (1mm × 0.5mm × 0.5mm) ensures compatibility with compact circuit boards and SMT processes. The capacitor features a solder termination type with a Cu/Ni/Sn plating layer, providing reliable mechanical and electrical connections. The product complies with RoHS environmental standards and is produced in Taiwan, Province Of China.
Operating temperature ranges from -55°C to 125°C, supporting a broad range of industrial and commercial environments. The temperature coefficient is ±30 ppm/°C, suitable for stable, sensitive circuits. The capacitors belong to the WCAP-CSRF series, specialized for high frequency applications such as antenna matching and other RF uses.
Manufactured using NP0 (Class I) ceramic material, this capacitor exhibits minimal dielectric losses and exceptional frequency characteristics. It supports voltage ranges from 25 to 50 V DC ensuring safety margin in designs.
This capacitor uses a C0G ceramic dielectric for high frequency stability. The package size is 0402, suitable for SMT assembly. The temperature range supports operation from -55°C to 125°C. The termination is solder type with Cu/Ni/Sn plating for reliable connection.
It is RoHS compliant and manufactured in Taiwan, Province Of China. Recommended for high frequency applications including antenna matching. The series designation is WCAP-CSRF. Dimensions are compact at 1mm length and 0.5mm width and height.
This product is ideal for industrial electronics, telecommunications, automotive electronics (non-automotive standard compliant), and other applications that demand high stability and precision in multilayer ceramic capacitors. Consider browsing similar Wurth Elektronik Multilayer Ceramic Capacitors on EnvMart for extended specifications and related components.
