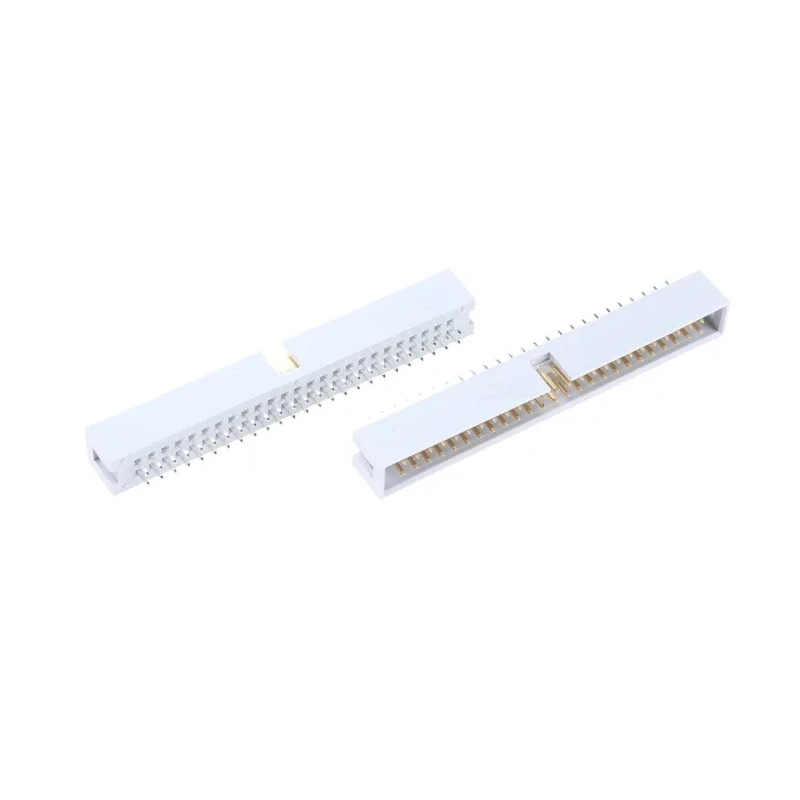

ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 50 Contact Points, 2.54 mm Pitch, 2 Row, Shrouded AWHW 50G-0202-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 50 Contact Points, 2.54 mm Pitch, 2 Row, Shrouded AWHW 50G-0202-T

Name: ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 50 Contact Points, 2.54 mm Pitch, 2 Row, Shrouded AWHW 50G-0202-T
Brand: ASSMANN WSW
SKU: 101166
Price: 1.46 USD
Availability: InStock



Category PCB Header Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AWHW 50G-0202-T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWHW
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold, Nickel
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector features a shrouded design for enhanced protection and reliability.
It supports a current rating of 3A suitable for various electronics applications.
Contact material is brass with gold and nickel plating for superior conductivity and corrosion resistance.
Mounting is through-hole for robust PCB integration.
The header operates within a temperature range of -40°C to 105°C ensuring durability in diverse environments.
The housing is made from polybutylene terephthalate offering excellent electrical insulation and mechanical stability.
It complies with RoHS standards, ensuring environmentally friendly construction.

Product Description

ASSMANN WSW AWHW 50G-0202-T is a professional-grade, straight through hole PCB header featuring 50 male contacts arranged in 2 rows with a 2.54 mm pitch. The shrouded housing provides additional protection against dust and mechanical damage, making it fit for use in rigorous industrial, electronic manufacturing, and commercial PCB assembly contexts.

The connector's brass contacts are plated with gold and nickel, ensuring high conductivity and resistance against corrosion, promoting long-term reliability in demanding electrical applications. Its current rating of 3A supports moderate power transmission across circuits.

The housing material, polybutylene terephthalate, confers strength and excellent electrical insulation, while the connector system is wire-to-board type, facilitating stable and secure connections on printed circuit boards. The through-hole mount type guarantees sturdy mechanical fixation on PCBs.

Operating temperature ranges from -40°C up to 105°C, allowing usage in a broad spectrum of environmental conditions, from cold industrial settings to heated electronics enclosures.

This PCB header conforms to RoHS directives, making it compliant with environmental safety and sustainability requirements relevant in electronics manufacturing. Shrouded two-row straight PCB header ensures reliable electrical connections.

Gold and nickel plated brass contacts provide excellent conductivity and durability. Through-hole mounting supports robust assembly on printed circuit boards. Housing made of polybutylene terephthalate offers mechanical stability and insulation.

Rated current of 3A suitable for various electronic device requirements. Wide operating temperature range (-40°C to 105°C) supports diverse industrial applications. RoHS compliant ensuring environmentally conscious manufacturing standards.

This product is ideal for electronic component manufacturers, assembly lines, and repair facilities requiring reliable, high-quality PCB Headers. Browse EnvMart for a wide range of electronic connectors and related accessories from top brands like ASSMANN WSW.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The current rating of this PCB header is 3A, making it suitable for various electronics applications.

This PCB header has a voltage rating of 250V, which supports its use in a range of electronic devices.

The pitch size of the contacts in this model is 2.54 mm, allowing for standard spacing in PCB applications.

The housing is made from polybutylene terephthalate, while the contacts are brass plated with gold and nickel for enhanced conductivity and corrosion resistance.

This model operates within a temperature range of -40°C to 105°C, making it versatile for various environmental conditions.

It features 50 male contacts arranged in 2 rows, facilitating multiple connections in a compact space.

This model uses through-hole mounting, ensuring robust mechanical fixation on printed circuit boards.

Yes, the AWHW 50G-0202-T is RoHS compliant, adhering to environmental safety and sustainability standards in electronics manufacturing.

It utilizes a wire-to-board connector system, which facilitates stable and secure connections on printed circuit boards.

The orientation of this PCB header is straight, which is standard for many PCB applications.

The termination type for this model is solder, which is commonly used for secure connections in PCB assemblies.

The specific dimensions are not provided, but it features a 2.54 mm pitch and is designed for standard PCB layouts.
