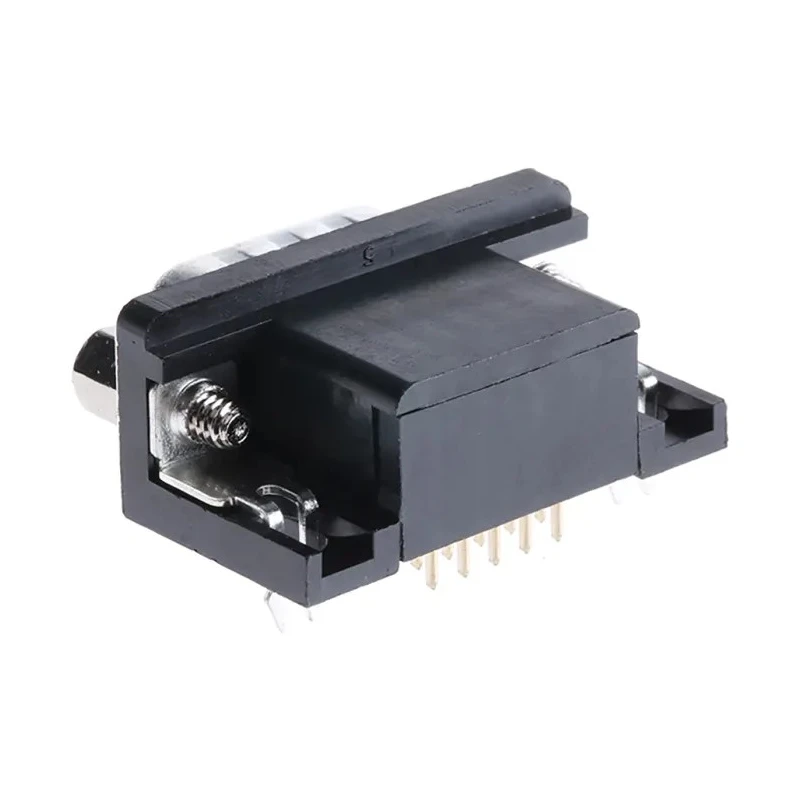

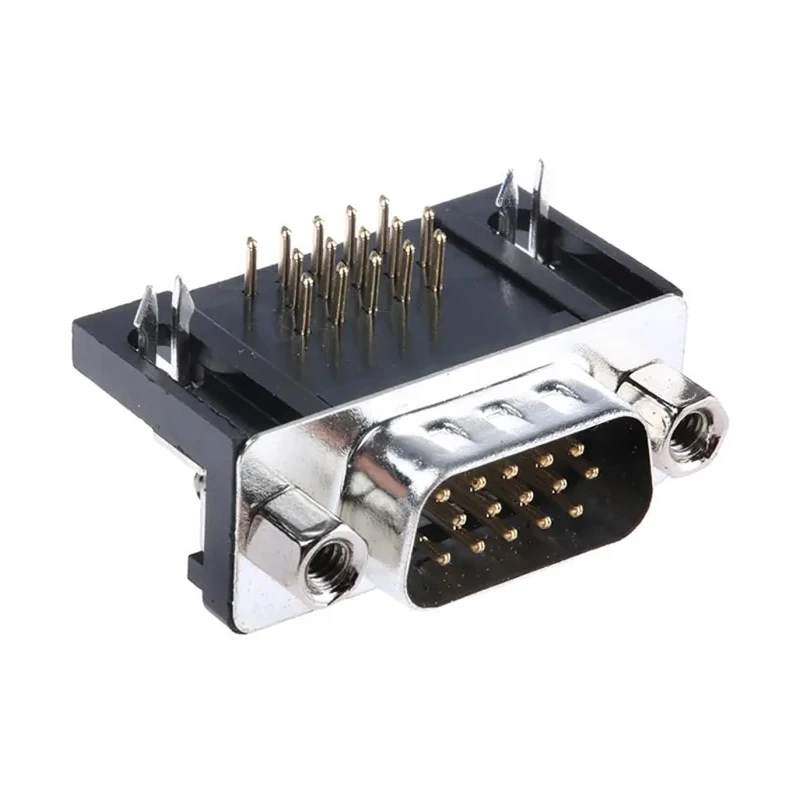

ASSMANN WSW 15 Way Right Angle 2.29 mm Pitch Through Hole D-Sub Connector Male A-HDS 15 A-KG/T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | A-HDS 15 A-KG/T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | A-HDS |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-15 |
Key Features
- This D-Sub connector features 15 contacts designed for secure electronic connections.
- Right angle orientation and through hole mount type suits PCB applications.
- Constructed with brass contacts plated in gold for reliable conductivity.
- Durable polybutylene terephthalate housing sustains operation from -55°C to 105°C.
- Rated for a maximum current of 3A and voltage of 250V for varied electronic uses.
- Compact DS-15 shell size enables high density connections in limited spaces.
- Ideal for industrial, electronic manufacturing, and computing connector applications.
- Contact pitch of 2.29 mm ensures precise alignment and signal integrity.
Product Description
ASSMANN WSW A-HDS 15 A-KG/T is a 15 Way Right Angle Through Hole D-Sub Connector Male designed with a 2.29 mm pitch. The connector is engineered for reliable electronic component interfacing in industrial and commercial electronic assemblies.
This D-Sub connector has a robust polybutylene terephthalate housing that provides excellent mechanical stability and thermal resistance, functioning between -55°C and 105°C. Brass contacts plated with gold further enhance electrical conductivity and corrosion resistance, ensuring durable and stable performance.
Its right angle orientation and through hole mounting facilitate secure and compact integration on printed circuit boards, making it suitable for manufacturing and electronic equipment repair use cases.
The connector supports up to 3A of current and 250V operating voltage, meeting demands in power and signal applications. The DS-15 shell size and 2.29 mm contact pitch support compact, high-density electronic designs.
This D-Sub connector features 15 contacts designed for efficient electronic connections. Right angle orientation and through hole mount type suits printed circuit board applications. Brass contacts with gold plating provide reliable electrical connectivity and corrosion resistance.
Polybutylene terephthalate housing withstands temperatures from -55°C to 105°C for durability. Rated current of 3A and voltage up to 250V cover a broad range of electronic requirements. DS-15 shell size allows compact and high-density connector arrangements.
Contact pitch of 2.29 mm ensures precise signal transmission and contact alignment. Ideal for industrial electronics, manufacturing, computing, and power connector needs. This component is made in China and adheres to high-quality manufacturing standards.
Browse our Electronics Components > D-Sub Connector category for more industrial-grade connectors and related products for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a maximum current of 3A.
It has a voltage rating of 250V, making it suitable for various electronic applications.
The contact pitch of this connector is 2.29 mm, ensuring precise alignment and signal integrity.
The connector features brass contacts plated in gold for reliable conductivity and a polybutylene terephthalate housing for mechanical stability and thermal resistance.
It operates effectively within a temperature range of -55°C to 105°C.
This model is designed for through hole mounting, facilitating secure integration on printed circuit boards.
This connector features a right angle orientation, which is beneficial for space-constrained applications.
The connector is equipped with 15 contacts, designed for efficient electronic connections.
It is classified as a DS-15 shell size, which supports high-density connections in limited spaces.
This model is ideal for industrial electronics, manufacturing, computing, and power connector needs.
It is a male D-Sub connector designed for secure electronic connections in various applications.
The ASSMANN WSW A-HDS 15 A-KG/T is manufactured in China, adhering to high-quality standards.
