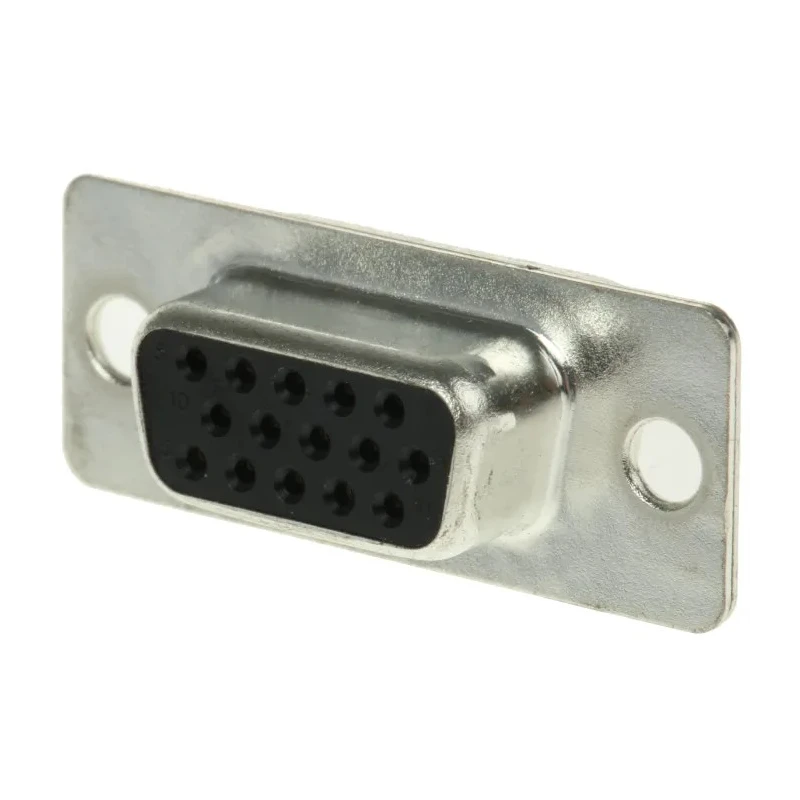

ASSMANN WSW 15 Way Straight Through Hole D-Sub Connector Female 250V 1A Gold over Nickel A-HDF 15 PP/Z
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 1A |
| Model | A-HDF 15 PP/Z |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | A-HDF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DF-15 |
Key Features
- Features a straight orientation with through hole mount type for secure PCB connection.
- Constructed with a polybutylene terephthalate housing for durability.
- Contact material is brass with gold over nickel plating for excellent conductivity and corrosion resistance.
- Operates reliably within a temperature range of -40°C to 105°C.
- Shell size is DF-15, suitable for high density applications.
- Designed for electronic component and power connector applications.
Product Description
ASSMANN WSW A-HDF 15 PP/Z is a robust 15 way straight through hole D-Sub connector, female type, engineered for PCB mounted electronic assemblies. It supports a voltage rating of 250V and current up to 1A, making it suitable for moderate power electronic applications.
The connector features a straight orientation with a through hole mount type, ensuring firm mechanical stability when soldered onto printed circuit boards. Its housing is made from durable polybutylene terephthalate, offering strong resistance to environmental and mechanical stresses.
Contacts are crafted from high-quality brass and finished with gold over nickel plating to provide excellent electrical conductivity combined with corrosion resistance, essential for long-term reliability. The connector’s shell size is DF-15, which is a high density specification allowing compact assembly designs.
This product is designed for use in industrial, laboratory, HVAC, manufacturing, and commercial electronic equipment where reliable signal and power transmission is critical. It operates effectively within a temperature range of -40°C to 105°C, accommodating a wide range of environmental conditions.
Key features include its 15 contact points and female connector gender, optimal for various electronic applications requiring multiple connections. The connector does not come with specific standards or approvals but meets general quality and durability expectations for D-Sub connectors.
Features a straight orientation with through hole mount type for secure PCB connection. Constructed with a polybutylene terephthalate housing for durability. Contact material is brass with gold over nickel plating for excellent conductivity and corrosion resistance.
Operates reliably within a temperature range of -40°C to 105°C. Shell size is DF-15, suitable for high density applications. Designed for electronic component and power connector applications.
This reliable D-Sub Connector is suitable for a variety of industrial and commercial electronic uses. Explore EnvMart’s extensive range of electronics components and connectors to find compatible items and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250V, making it suitable for moderate power electronic applications.
It supports a current capacity of up to 1A, which is appropriate for various electronic applications.
This model operates reliably within a temperature range of -40°C to 105°C, accommodating a wide range of environmental conditions.
The housing is constructed from polybutylene terephthalate, providing strong resistance to environmental and mechanical stresses.
It features 15 contact points, which are optimal for various electronic applications requiring multiple connections.
This connector uses a through hole mount type, ensuring firm mechanical stability when soldered onto printed circuit boards.
The contacts are made from brass and are finished with gold over nickel plating to enhance electrical conductivity and corrosion resistance.
The shell size is DF-15, which is suitable for high density applications, allowing for compact assembly designs.
The connector is a female type, designed for use in various electronic component and power connector applications.
It is designed for use in industrial, laboratory, HVAC, manufacturing, and commercial electronic equipment where reliable signal and power transmission is critical.
The gold over nickel plating on the contacts provides excellent electrical conductivity combined with corrosion resistance, essential for long-term reliability.
The country of origin for this connector is India.
