Recom DC/DC Converter 12V Output, 18-36V Input, 15W Power, Through Hole Mount, 6-Pin RP15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RP15 F DC/DC Converter, 12V dc/, 36V dc Inpu |
| Brand | Recom |
| Efficiency | 85% |
| Length | 50.8mm |
| Model | RP15 |
| Depth | 10.2mm |
| Gross Weight | 27g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | RP15 F |
| Maximum Operating Temperature | 85°C |
| Package Type | 2 x 1 in |
| Minimum Operating Temperature | -40°C |
| MTBF | 2014000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | UL, IEC, CSA |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.6kV dc |
| Output Current 2 | 1.25A |
Key Features
- Through hole mount design with 6 pins for secure PCB integration.
- Wide operating temperature range from -40°C to +85°C ensures stable performance in harsh environments.
- High efficiency of 85% minimizes power loss and improves energy usage.
- Isolation voltage of 1.6 kV DC provides enhanced electrical safety.
- Includes short-circuit protection for reliable operation.

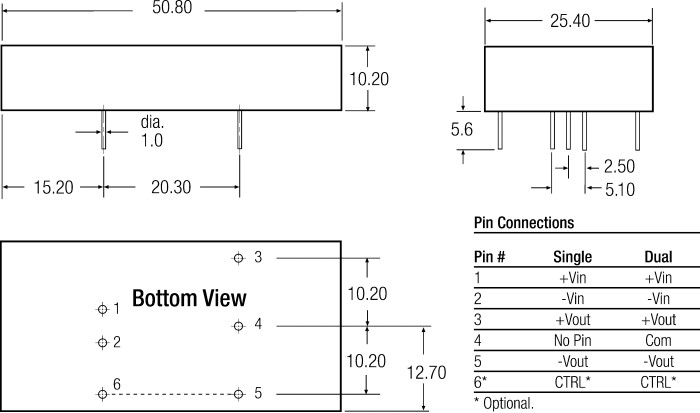

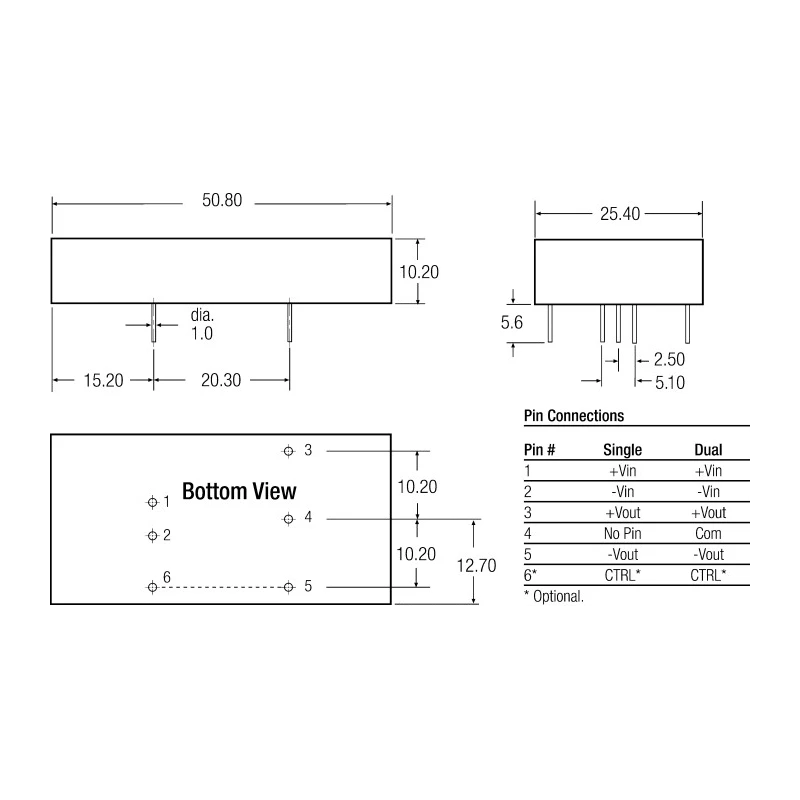

- Compact package size of 50.8mm length, 25.4mm width, and 10.2mm depth.
- Low ripple and noise of 50mV peak-to-peak maintains output signal integrity.
- MTBF of approximately 2,014,000 hours guarantees long service life.
Product Description

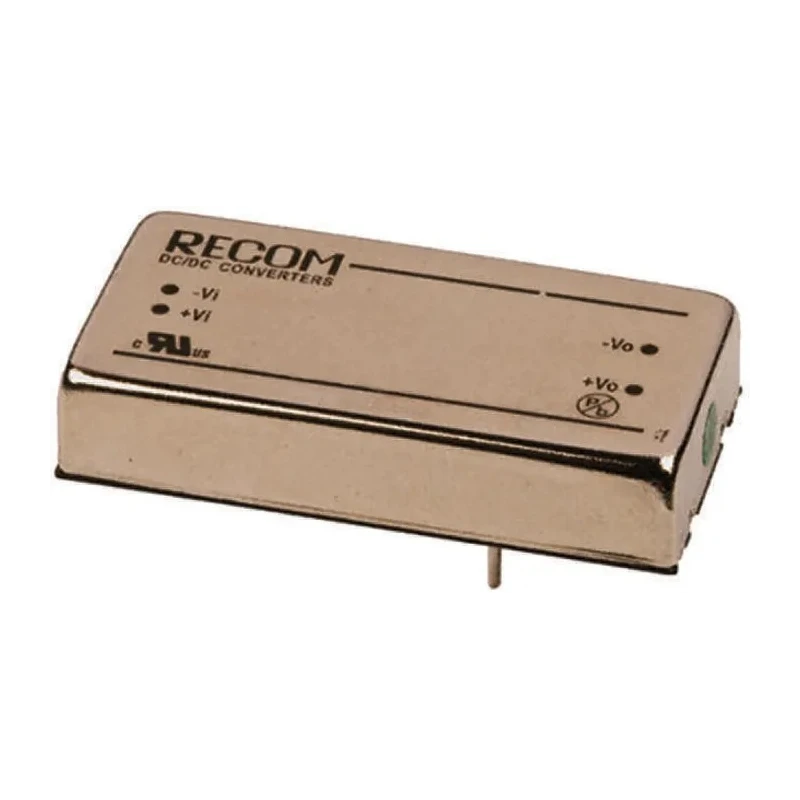

The Recom RP15-2412SF DC/DC Converter is a high-quality power supply component designed to regulate and step down DC voltages from 18 to 36V input levels to a stable 12V output. It delivers a maximum output power of 15 watts with an output current of 1.25A, suitable for powering various circuits and electronic modules with precision thanks to its ±1% line and load regulation.
This through-hole mounted converter features a compact package measuring 50.8mm in length, 25.4mm in width, and 10.2mm in depth, with a lightweight design of approximately 27 grams, reducing mechanical stress on printed circuit boards.
Operating reliably within a wide temperature range from -40°C to +85°C, this module ensures robust performance even in demanding industrial or outdoor environments. It achieves an efficiency rating of 85%, minimizing energy wastage and heat generation during continuous operation.
Electrical isolation of 1.6kV DC between input and output enhances safety, preventing potential damage or electrical hazards in sensitive applications. The unit also incorporates protections such as short-circuit prevention to safeguard connected equipment.
With a Mean Time Between Failures (MTBF) of over two million hours at room temperature, the RP15-2412SF is built for longevity and minimal replacement frequency. Through hole mount design with 6-pin interface. High efficiency of 85% ensures low power loss.
Wide operating temperature range: -40°C to +85°C. Isolation voltage rating of 1.6 kV DC. Low ripple and noise output at 50mV peak-to-peak. Compact dimensions of 50.8mm x 25.4mm x 10.2mm. Short-circuit protection for enhanced reliability.
Applications across telecommunications, industrial networks, military and defense, and medical devices.
This converter is ideal for use in industrial, military, telecommunications, and medical sectors where reliable DC power conversion and strict electrical isolation are imperative. Its efficient design and robust protections deliver dependable service in critical systems.
Explore more specialized DC/DC Converters and power supplies on EnvMart to find components tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V DC.
This converter delivers a maximum output power of 15 watts.
The dimensions of this unit are 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
It has an efficiency rating of 85%, which helps minimize energy loss.
The operating temperature range is from -40°C to +85°C.
This converter features a through-hole mount design with a 6-pin interface.
The isolation voltage is rated at 1.6 kV DC, enhancing electrical safety.
The output current rating is 1.25A.
The ripple and noise level is 50mV peak-to-peak, maintaining output signal integrity.
This model is suitable for applications in telecommunications, industrial networks, military and defense, and medical devices.
It includes short-circuit protection for reliable operation and enhanced safety.
The MTBF is approximately 2,014,000 hours, indicating a long service life.
