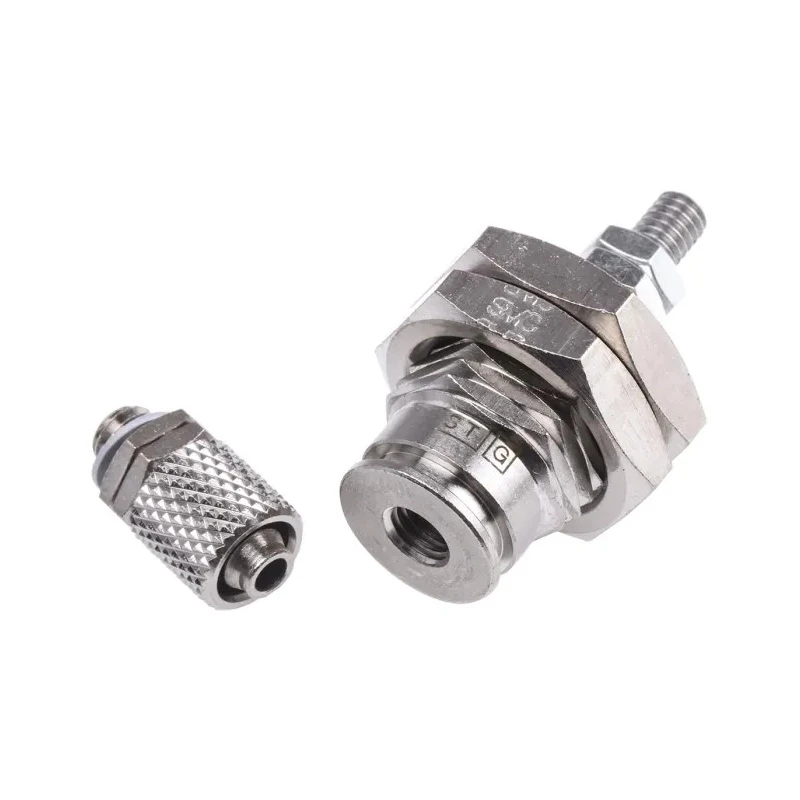

SMC 5 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body CJPB10-5H6Z

SMC CJPB10-5H6Z pneumatic piston rod cylinder is a high-quality, single acting actuator specially designed for panel mounting with a durable brass body. It offers a precise stroke length of 5 mm and utilizes a spring return rod type to ensure consistent and reliable actuation in pneumatic systems.

Constructed with brass, this cylinder is robust and suitable for demanding industrial environments, withstanding operating temperatures up to 70°C. The unit features a non-cushioned, threaded rod-end style for simple mechanical integrations without the need for lubrication, minimizing operating costs and maintenance.

The cylinder achieves a maximum piston speed of 500 mm/s, accommodating efficient motion control requirements. Operating pressure is versatile, with a minimum of 2 bar and a maximum of 7 bar designed to meet different pneumatic circuit specifications. Stroke tolerance is tightly controlled at +1.0 mm to assure accuracy in applications.

Typical uses include industrial automation, fluid power systems, manufacturing machinery, and other pneumatic control setups requiring compact actuators with panel mount capability. The single acting, spring return function ensures fail-safe positioning and ease of integration.

SMC’s CJP series cylinders are known for their reliability in pneumatic actuation and are widely used across numerous industrial, manufacturing, and mechanical equipment applications where precision and durability are critical.

The cylinder is single acting with spring return, ensuring reliable actuation. Brass body construction offers excellent durability and corrosion resistance. Panel mount design enables easy and secure installation. Stroke length is precisely 5 mm with a tolerance of +1.0 mm for accurate movement.

Maximum operating temperature up to 70°C suitable for various industrial environments. Non-cushioned design and threaded rod-end style provide straightforward operation. Maximum piston speed rating of 500 mm/s for efficient actuation.

Operating pressure ranges from 2 bar minimum to 7 bar maximum, adapted for different diameters. Lubrication is not required, reducing maintenance demands. Designed for industrial pneumatic applications including fluid power and automation systems.

This product is part of EnvMart's Pneumatic Cylinders category, ideal for engineers and procurement departments sourcing dependable pneumatic actuators.
