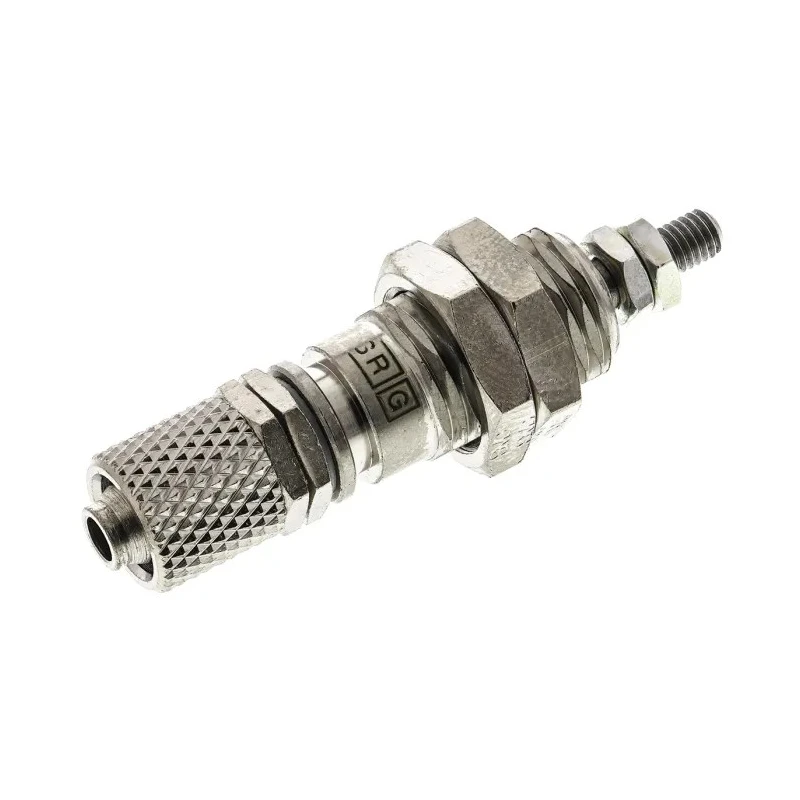

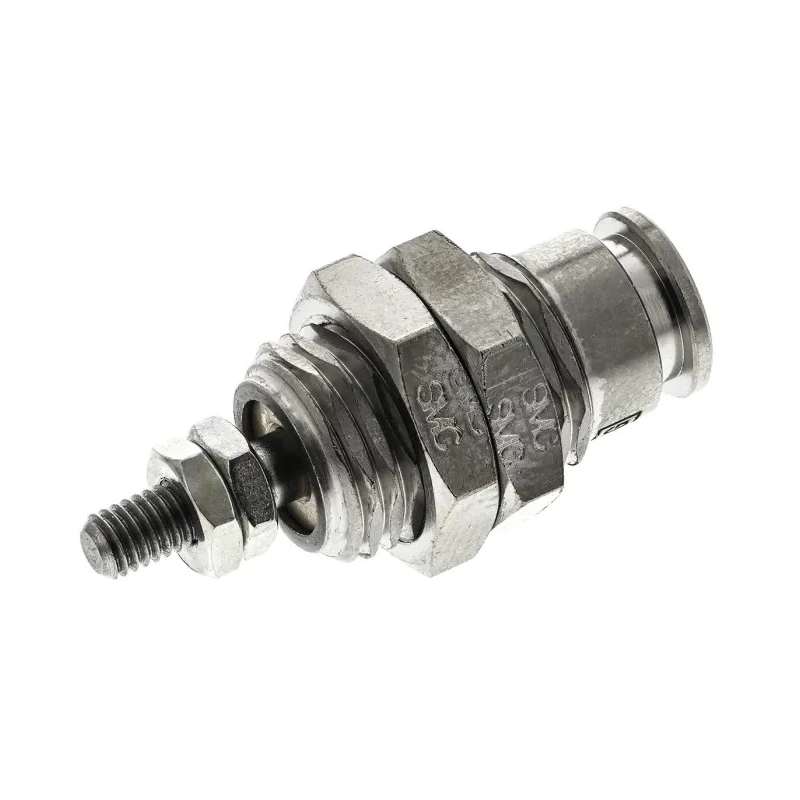

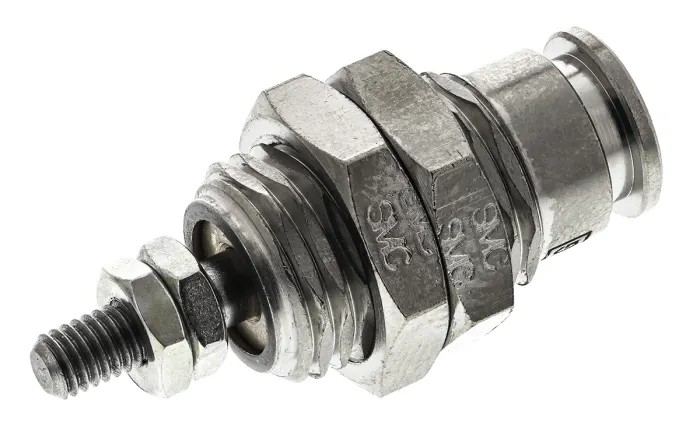

SMC 5 mm Pneumatic Piston Rod Cylinder Panel Mount Brass Body Single Acting CJPB6-5H6Z

SMC CJPB6-5H6Z pneumatic piston rod cylinder from the CJP Series is a compact single acting actuator featuring a 5 mm stroke length and a 27.5 mm overall length. Constructed with a durable brass body for enhanced corrosion resistance, this cylinder is designed for panel mounting, providing ease of installation in industrial pneumatic systems.

The single acting spring return mechanism provides dependable rod retraction without the need for external force. This model supports a metric threaded piston rod compatible with industry-standard fittings and features a non-cushioned design for simple and reliable actuation.

Suitable for use in environments with operating temperatures up to 70°C, this cylinder does not require lubrication, minimizing ongoing maintenance requirements. It operates effectively at pressures up to 7 bar with a proof pressure of 10.5 bar, assuring safety and reliability under industrial conditions.

The stroke tolerance is +1.0 mm, and the maximum piston speed can reach up to 500 mm/s. This cylinder is ideal for various industrial automation, manufacturing, and fluid power applications where compact, efficient pneumatic actuation is required.

Single acting operation with spring return provides reliable automatic rod retraction. Compact 27.5 mm body length suitable for miniature pneumatic systems. Panel mount type for easy installation in industrial assemblies.

Brass body material ensures corrosion resistance and durability. Metric piston rod thread standard facilitates compatibility with standard fittings. Maximum operating temperature up to 70°C for a wide range of environments.

Non-cushioned design for straightforward pneumatic applications. Proof pressure rated at 10.5 bar with operating pressure max 7 bar. Lubrication not required, reducing maintenance needs.

This SMC pneumatic piston rod cylinder is a high-quality component tailored for industrial pneumatic automation, HVAC systems, manufacturing lines, and laboratory equipment. Its design supports reliable and efficient fluid power control, making it a valuable asset in engineering applications.
