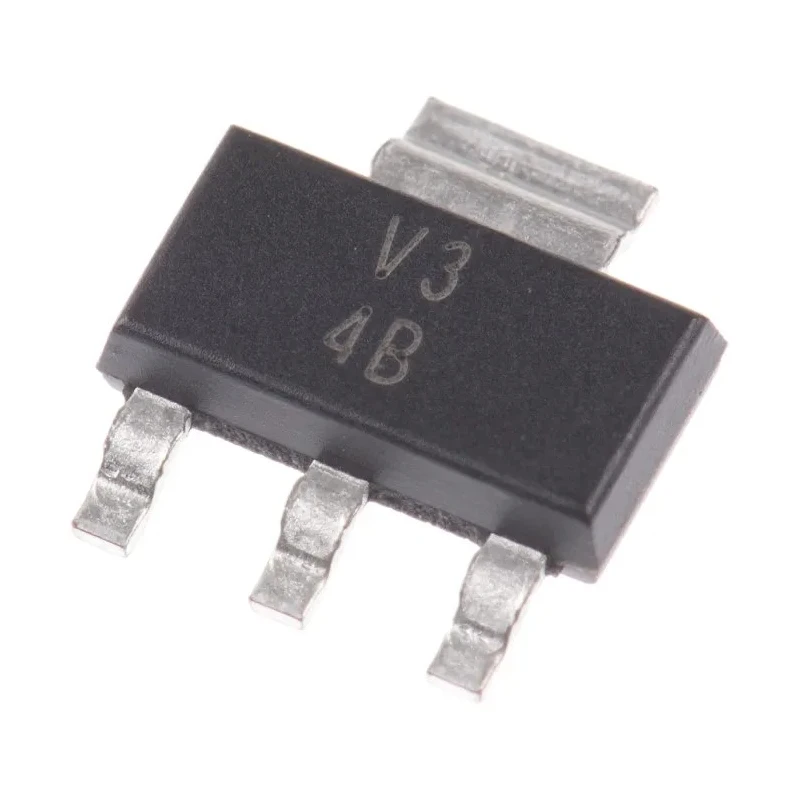

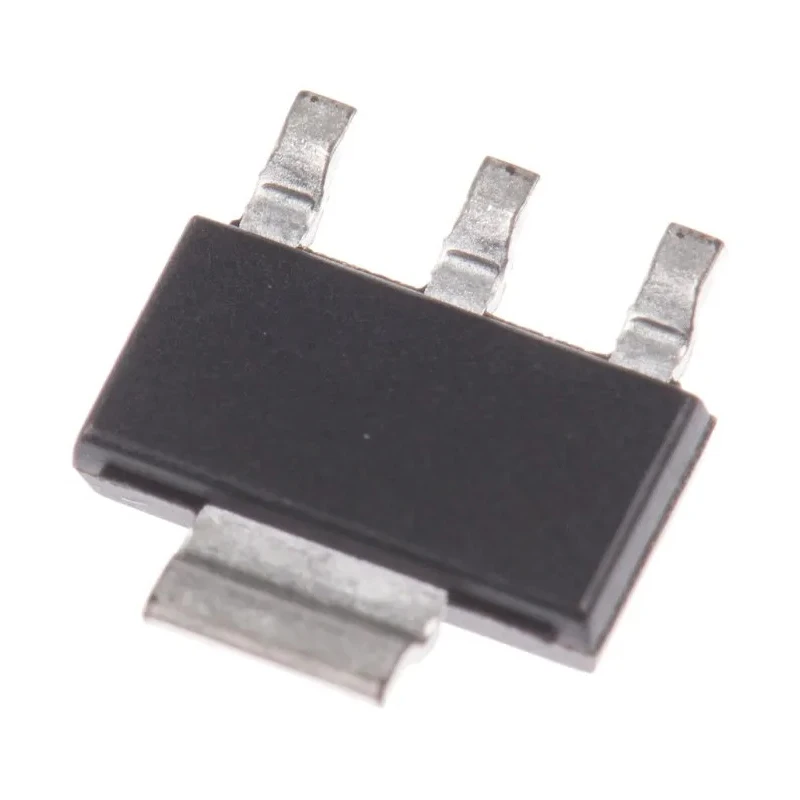

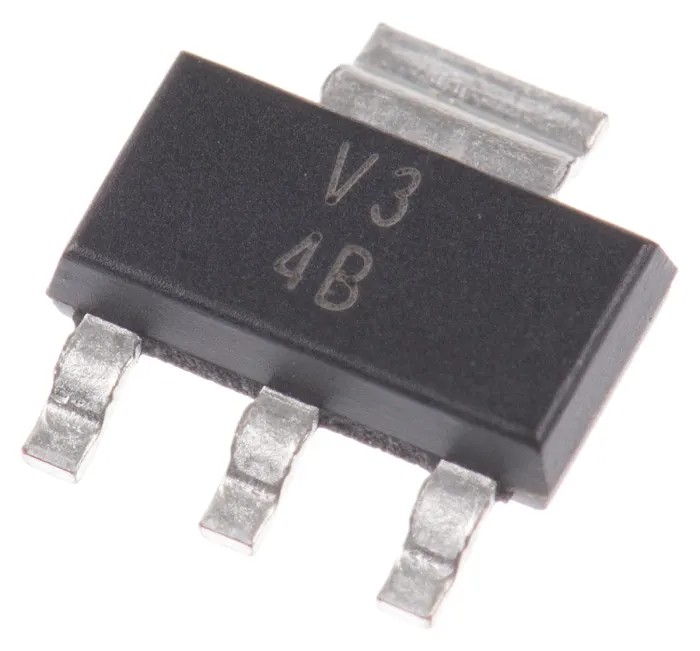

Texas Instruments TLV1117-33CDCY Low Dropout Voltage Regulator 15V 600-800mA SOT-223 4-Pin TLV1117-33CDCY
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments TLV1117-33CDCY, Voltage Regulator 15V SOT-223 4-Pin |
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | TLV1117-33CDCY |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | TLV1117 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 15V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 4.7V |
| Pin Count | 4 |
Key Features
- Operates with a maximum input voltage of 15V and minimum input voltage of 4.7V.
- Features a low quiescent current of 5mA ensuring energy efficiency.
- Maximum operating temperature rating of 125°C suitable for industrial environments.
- Positive polarity configuration ideal for regulated power supply designs.
- Designed without automotive standards but suitable for various electronic applications.
- Series TLV1117 ensures compatibility with related power management solutions.
Product Description
Texas Instruments TLV1117-33CDCY is a high-performance low dropout (LDO) linear voltage regulator designed to provide stable output voltage for electronic circuits requiring 600mA to 800mA current capability. It is housed in a compact SOT-223 4-pin surface mount package, which makes it ideal for compact PCB layouts.
The device supports a maximum input voltage of 15V and a minimum input voltage of 4.7V, ensuring reliable operation across a wide range of power conditions. With a low quiescent current of only 5mA, this regulator offers efficient power management and reduced heat dissipation.
Featuring a positive polarity and designed without specific automotive standards compliance, the TLV1117-33CDCY is robust with a maximum operating temperature up to 125°C, suitable for demanding industrial, consumer electronics, and commercial applications.
The physical dimensions are 6.5mm in length, 3.5mm in width, and 1.6mm in height, facilitating integration into space-constrained designs. This product is part of the TLV1117 series, renowned for excellent line regulation, low noise output, and high power supply ripple rejection, making it suitable for power management IC applications.
Operates with maximum input voltage of 15V and minimum input of 4.7V. Compact SOT-223 surface mount packaging with 4 pins. Low quiescent current of 5mA ensures energy-efficient operation. High maximum operating temperature of 125°C for reliability.
Positive polarity voltage regulator suitable for multiple applications. Part of the TLV1117 series optimized for power management. Ideal for use in electronic components, power management ICs, and semiconductor applications.
This voltage regulator is widely applicable in industrial machines, laboratory instruments, electronic components manufacturing, HVAC controls, and general electrical and semiconductor uses.
Browse EnvMart for more electronic semiconductor components and Voltage Regulators by Texas Instruments and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 15V.
The minimum input voltage required is 4.7V.
It features a low quiescent current of 5mA, ensuring energy efficiency during operation.
The maximum operating temperature rating is 125°C, making it suitable for industrial environments.
This voltage regulator has dimensions of 6.5mm in length, 3.5mm in width, and 1.6mm in height.
It is housed in a compact SOT-223 4-pin surface mount package.
This model features a positive polarity configuration, suitable for regulated power supply designs.
It is widely applicable in industrial machines, laboratory instruments, electronic components manufacturing, HVAC controls, and general electrical uses.
It is part of the TLV1117 series, which is optimized for power management, ensuring compatibility with related solutions.
This voltage regulator has a pin count of 4.
The low dropout feature allows for stable output voltage even when the input voltage is close to the output voltage, enhancing efficiency in power management applications.
This model is designed without specific automotive standards compliance, but it is suitable for various electronic applications.
