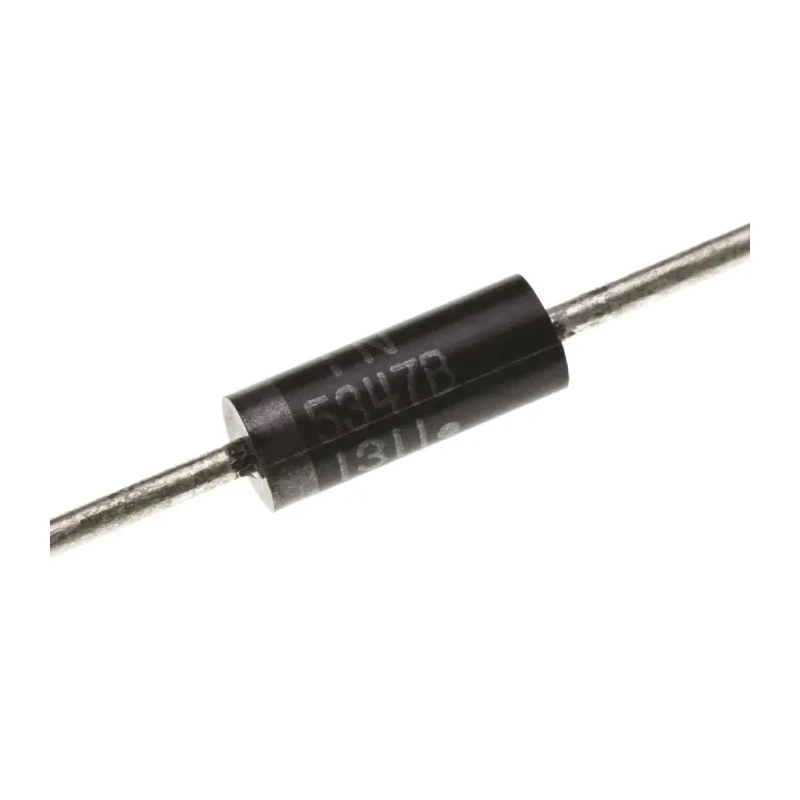

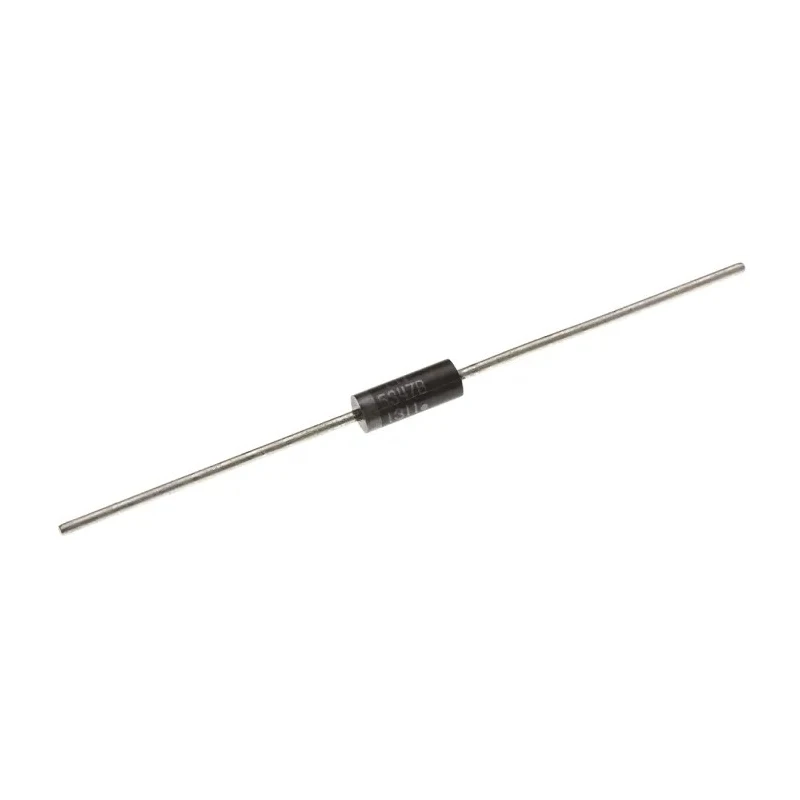

onsemi Zener Diode DO-15 10 V 5 W Through Hole 2-Pin Voltage Regulator 1N5347BRLG
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5347BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 125mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
Key Features
- Designed for reliable voltage regulation in electronic circuits.
- Compact DO-15 package with axial leads for easy mounting.
- Nominal Zener voltage of 10 volts with 5% tolerance for precise control.
- Maximum power dissipation of 5 watts ensures durable performance.
- Operates within a temperature range of -65°C to 200°C.
- Maximum reverse leakage current of 5 microamperes minimizes power loss.
- Test current rated at 125 milliamps for standard testing.
- Industrial-grade diode ideal for voltage stabilization and regulation applications.
Product Description
onsemi 1N5347BRLG Zener Diode DO-15 10 V 5 W is a high-quality semiconductor component designed for voltage regulation and stabilization in diverse electronic and industrial circuits. This single-element diode features a through-hole mount type with a compact DO-15 axial lead package, facilitating simple and reliable board integration.
With a nominal Zener voltage of 10 V and a tight 5% tolerance, it provides consistent voltage regulation. Its maximum power dissipation rating of 5 watts enables it to handle significant load conditions without performance degradation. The device operates effectively in extreme temperature environments, from -65°C up to 200°C, making it suitable for demanding industrial applications.
The diode is designed with corrosion-resistant external surfaces and silicon-oxide passivated junctions to ensure long-term reliability and stability. The maximum reverse leakage current is limited to 5 microamperes, promoting energy efficiency in circuits. Testing is conducted at a test current of 125 mA, adhering to industry-standard verification protocols.
This 1N53 series diode from onsemi represents a robust solution for voltage regulation needs, tailored for industrial usage, power electronics, and electronic equipment requiring precise voltage control. The pin count is two, and the package dimensions include a length of 8.89 mm and height of 3.68 mm.
Applications include power supplies, voltage reference circuits, and general electronic component protection. The product is made in China and complies with relevant quality standards.
Designed for reliable voltage regulation in electronic circuits. Compact DO-15 package with axial leads for easy mounting. Nominal Zener voltage of 10 volts with 5% tolerance for precise control. Maximum power dissipation of 5 watts ensures durable performance.
Operates within a temperature range of -65°C to 200°C. Maximum reverse leakage current of 5 microamperes minimizes power loss. Test current rated at 125 milliamps for standard testing. Industrial-grade diode ideal for voltage stabilization and regulation applications.
Corrosion-resistant construction with silicon-oxide passivated junction. Manufactured in China as part of the trusted 1N53 series from onsemi.
Explore a wide range of semiconductor components and voltage regulation devices in the Electronics & Electricals category at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 10 volts with a tolerance of 5%.
It has a maximum power dissipation rating of 5 watts, allowing it to handle significant load conditions.
This diode operates effectively within a temperature range of -65°C to 200°C.
The maximum reverse leakage current is limited to 5 microamperes, which helps minimize power loss.
It features a through-hole mount type, making it easy to integrate into electronic circuits.
The package dimensions include a length of 8.89 mm and a height of 3.68 mm.
The test current rated for this diode is 125 milliamps, adhering to industry-standard testing protocols.
The maximum Zener impedance is 2 ohms, which contributes to its voltage regulation capabilities.
It is a single-element diode configuration, designed for voltage regulation applications.
This diode is suitable for applications such as power supplies, voltage reference circuits, and electronic component protection.
It belongs to the 1N53 series of Zener diodes, known for their voltage regulation capabilities.
This model is manufactured in China, ensuring compliance with relevant quality standards.
