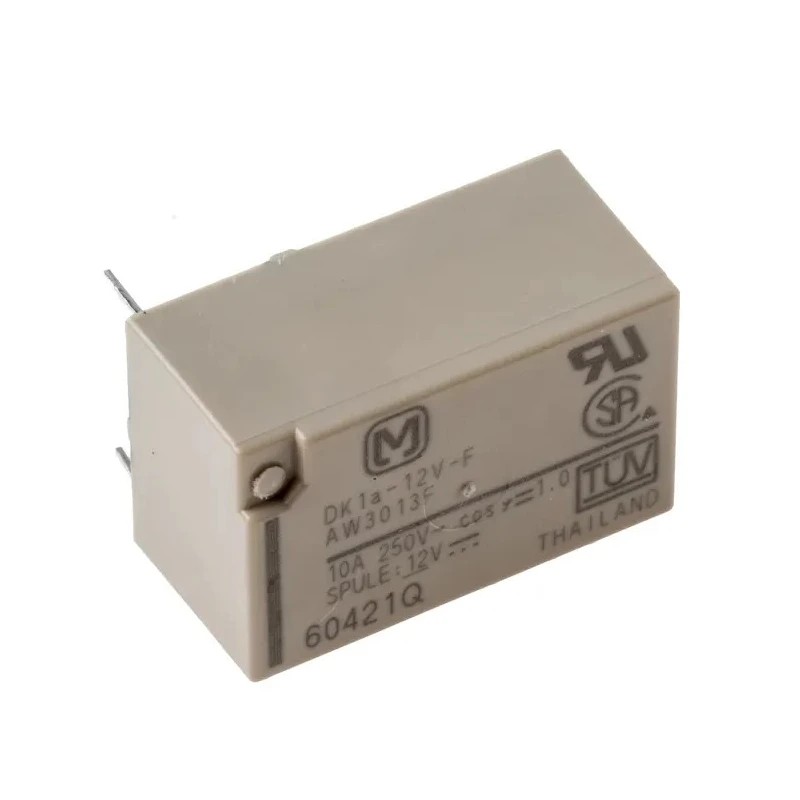

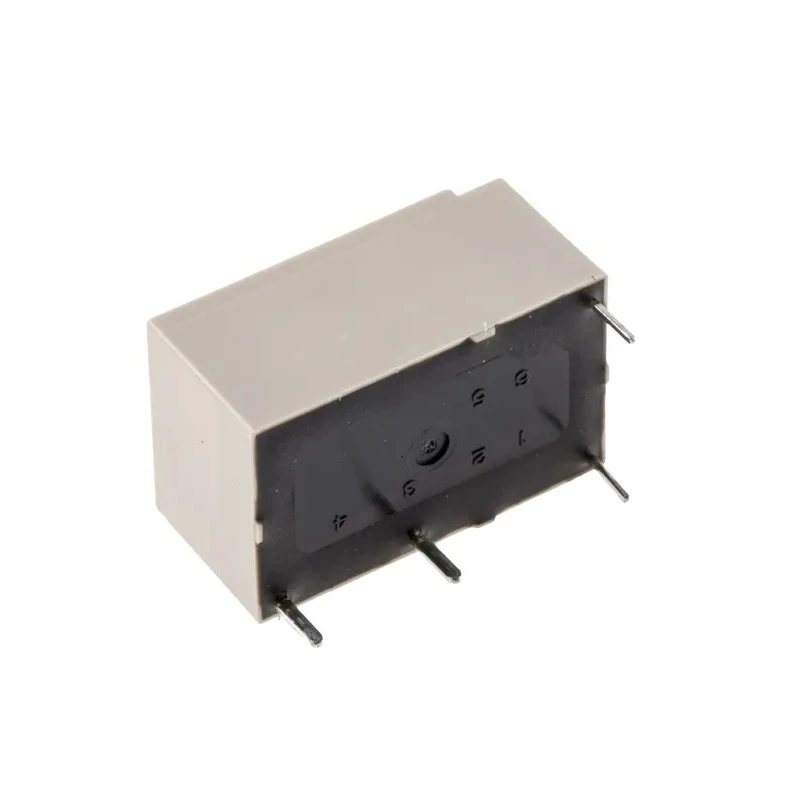

Panasonic PCB Power Relay 12V dc Coil 10A Switching Current SPST DK1A-12V-F
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 9.7mm |
| Length | 20mm |
| Model | DK1A-12V-F |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| High Sensitivity | 200 mW nominal operating power |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Panasonic Non-Latching Relay, 10A Switching CurrentBrand | Panasonic |
Key Features
- This power relay features a SPST contact configuration ideal for precise switching tasks.
- Its compact PCB mount design ensures easy integration into electronic circuits.
- The gold plated contacts provide excellent conductivity and corrosion resistance.
- Operates efficiently between -40°C to 65°C temperature range for versatile environmental use.
- The coil resistance is 720 ohms and requires only 200mW coil power for activation.
- Designed with a sealed construction that allows automatic washing and enhanced durability.
- Typical applications include industrial machinery, PLCs, temperature controllers, timers, and home appliances.
- High surge withstand voltage up to 10,000V between contact and coil for robust performance.
Product Description
Panasonic DK1A-12V-F is a PCB mount miniature power relay featuring a 12V dc coil and 10A switching current with an SPST contact configuration. This compact relay measures 20mm in length, 12.5mm in width, and 9.7mm in height.
Designed for high capacity and sensitivity, it operates with only 200mW nominal coil power. The gold plated contacts ensure reliable electrical connectivity and durability under varying environmental conditions.
Its sealed construction allows automatic washing, making it suitable for industrial, automation, and home appliance applications. It withstands operating temperatures ranging from -40°C to 65°C, supporting wide temperature tolerance.
This power relay provides a switching voltage rating of 125V dc and 125V ac for versatile circuit use. The coil resistance of 720 ohms delivers consistent operation with minimal power consumption. High surge withstanding voltage up to 10,000V enhances relay reliability in demanding electrical environments.
Typical use cases include power switching in PLCs, temperature controllers, timers, and industrial machinery. Its miniature size facilitates space-saving designs for electronic control assemblies. Country of origin is Thailand, assuring international manufacturing standards.
Choose Panasonic DK1A-12V-F for dependable, high-capacity PCB power relay applications in electronics, industrial automation, and home appliances. Explore more Power Relays and electronics components in the EnvMart catalog for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DK1A-12V-F relay has a switching current rating of 10A.
This power relay operates with a coil voltage of 12V dc.
The dimensions of this relay are 20mm in length, 12.5mm in width, and 9.7mm in height.
The relay features a Single Pole Single Throw (SPST) contact configuration.
It operates efficiently within a temperature range of -40°C to 65°C.
The coil resistance for this relay is 720 ohms.
This relay is designed for PCB mounting.
The relay requires a nominal coil power of 200mW for activation.
The maximum switching voltage for DC applications is 125V.
The contacts of this relay are made of gold plated material, ensuring good conductivity.
This relay complies with RoHS standards.
Typical applications include industrial machinery, PLCs, temperature controllers, and timers.
