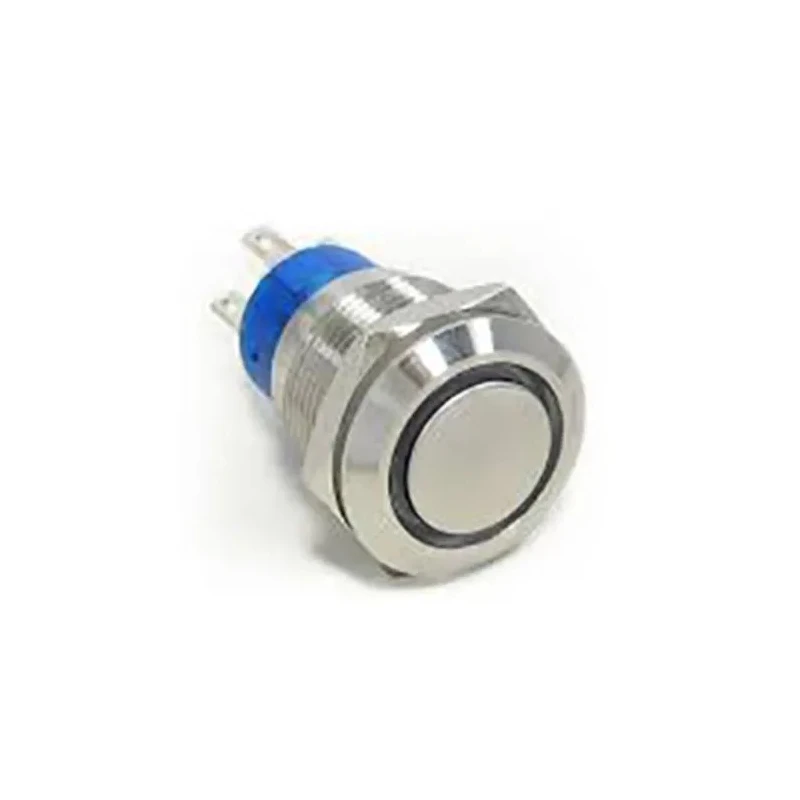

TE Connectivity Series Illuminated Push Button Switch Momentary Panel Mount 22.2 mm Cutout DPDT Contact Configuration AV22
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Contact Configuration | DPDT |
| Switch Configuration | DPST |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, REACH Compliant, UL (E46765) |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a vandal-proof design with a rear mounting jam nut for secure installation.
- It operates with a momentary action and dual-pole double-throw contact configuration.
- The green LED provides clear status indication and enhanced visibility.
- Built for durability, it has an IP67 rating ensuring protection against dust and water ingress.
- Suitable for use in control equipment, elevators, escalators, and instrumentation.
- Designed to meet EU ELV, REACH, and UL (E46765) compliance standards.
- Wire lug terminals provide reliable electrical connections.
- The actuator has a silver color and round style for ergonomic operation.
Product Description
TE Connectivity AV2220E624Q04 AV22 Series illuminated push button switch is a new, momentary type panel-mount switch with a 22.2 mm cutout, featuring DPDT contact configuration and green LED illumination. This switch is engineered for industrial security and reliability, offering a vandal-proof housing with rear mounting jam nut for firm panel installation.
Built to endure harsh environments, the switch carries an IP67 ingress protection rating, making it dust-tight and resistant to water immersion. It supports electrical operation at 250 V AC/DC and a contact current of 3 A, suitable for controlling diverse industrial equipment.
This series is compliant with EU ELV, REACH regulations, and holds UL (E46765) certification, ensuring safety and environmental conformity. The silver actuator is round shaped for ease of use, while wire lug terminals facilitate secure connection to panel wiring.
Typical applications include control and communications equipment, elevator and escalator systems, and instrumentation where reliable switch actuation and status indication with LED are essential.
The switch features a vandal-proof design with a rear mounting jam nut for secure installation. It operates with a momentary action and dual-pole double-throw contact configuration. The green LED provides clear status indication and enhanced visibility.
Built for durability, it has an IP67 rating ensuring protection against dust and water ingress. Suitable for use in control equipment, elevators, escalators, and instrumentation. Designed to meet EU ELV, REACH, and UL (E46765) compliance standards.
Wire lug terminals provide reliable electrical connections. The actuator has a silver color and round style for ergonomic operation. Supports contact voltages up to 250 V AC/DC with a contact current rating of 3 A. Explore the TE Connectivity AV22 Series at EnvMart for reliable industrial push button switches tailored to your panel mounting needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual-pole double-throw (DPDT) contact configuration, allowing for versatile switching applications.
The switch requires a panel cutout size of 22.2 mm for proper installation.
It has an IP67 rating, ensuring it is dust-tight and resistant to water immersion.
The switch supports a contact voltage of up to 250 V AC/DC and a contact current rating of 3 A.
It uses wire lug terminals for reliable electrical connections.
The switch features a green LED for clear status indication and enhanced visibility.
The actuator is round in style and is silver in color, designed for ergonomic operation.
This model is compliant with EU ELV, REACH regulations, and holds UL (E46765) certification.
It operates with a momentary action, meaning it only remains active while being pressed.
Typical applications include control equipment, elevators, escalators, and instrumentation where reliable switch actuation is essential.
This switch is designed for panel mounting, ensuring secure installation with a rear mounting jam nut.
The country of origin for this switch is India.
