Glenair MWDM 100 Way Cable D-Sub Connector Male/Female MWDM2L-31S-6E5-18B
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Glenair |
| Current | 3A |
| Model | MWDM2L-31S-6E5-18B |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Beryllium Copper Alloy |
| Series | MWDM |
| Termination Type | Pre-Wired |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 100 |
| Contact Gender | Male/Female |
| Connector Gender | Male/Female |
| Glenair MWDM 31 Way Straight Panel Mount D-Sub Connector FemaleBrand | Glenair |
Key Features
- Features 100 high-density contacts for reliable connectivity.
- Rated for 3 Amp current capacity ensuring efficient power transmission.
- Aluminium housing provides robust mechanical protection and durability.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Pre-wired termination type with 450mm (18 inches) color-coded wiring for ease of installation.
- Beryllium Copper Alloy contacts with gold over nickel plating for superior conductivity and corrosion resistance.
- Designed with male/female connector gender for versatile cable connections.
- Meets MWDM series standards for commercial off-the-shelf micro-D plug and socket connectors.
Product Description

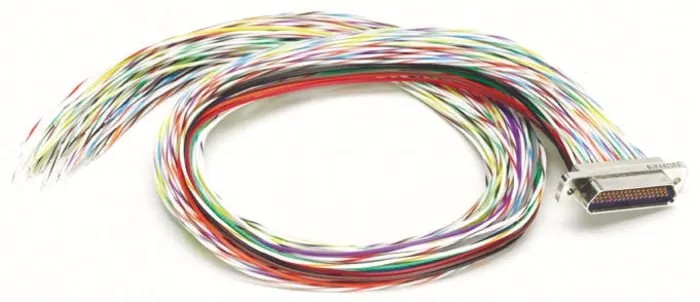

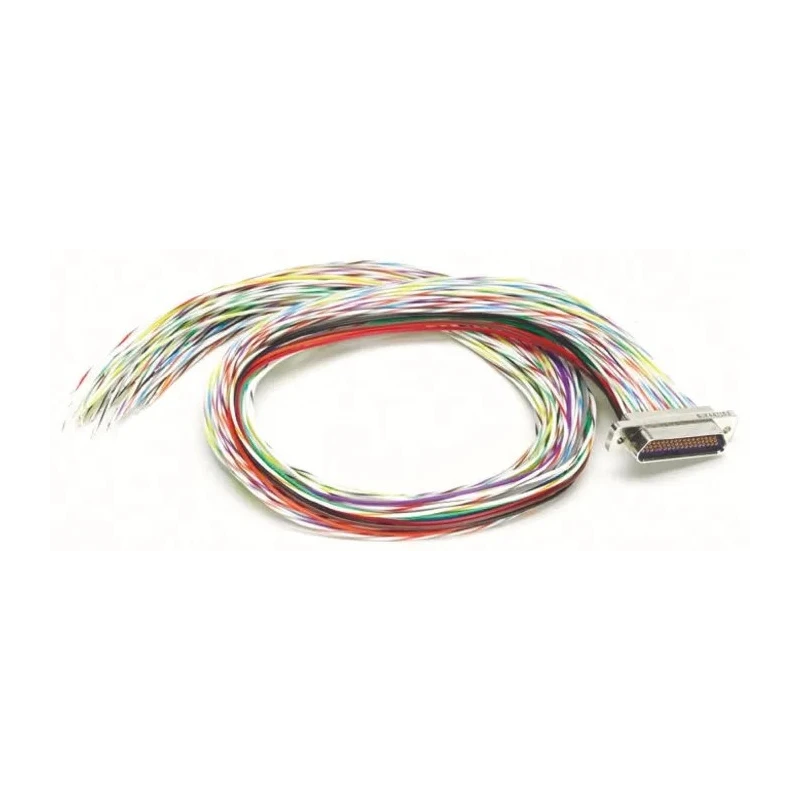

Glenair MWDM2L-31S-6E5-18B Cable D-Sub Connector Male/Female from the MWDM series is a commercial off-the-shelf (COTS) micro-D plug and socket connector designed for high reliability and performance in extreme environments. This product features 100 contacts arranged in a high-density .050 inch pitch configuration, rated for 3 Amps of current, and terminated with pre-wired 26 AWG pigtail wires of 450mm (18 inches) length with color-coded insulation for easy identification.
The connectors use gold-plated TwistPin contacts made of beryllium copper alloy, providing low contact resistance and excellent durability with robust wire attachment and gas-tight crimp sleeves. These micro-D connectors have aluminium housings with nickel plating and liquid crystal polymer (LCP) insulators, enabling operation in temperatures from -55°C up to 150°C, making them suitable for harsh commercial and military environments.
Environmental sealing includes epoxy and interfacial seals to protect against moisture and contaminants. The rugged design ensures outstanding resistance to shock and vibration, essential for aerospace, military, land and sea platforms, industrial electronics, and telecommunication systems.
100 high-density contacts for compact design. 3 Amp current rating for power efficiency. Aluminium housing with nickel plating offers mechanical strength and corrosion resistance. Gold over nickel plating on contacts for reliable electrical connections.
Operating temperature range from -55°C to 150°C for harsh conditions. Pre-wired 26 AWG color-coded pigtail wire terminations ease installation. Epoxy and interfacial sealing provide environmental protection.
The Glenair MWDM series connectors excel in industrial, aerospace, military, and telecommunications applications that demand high-performance, reliable interconnections under extreme vibration and environmental stress. This product combines micro-D size with robust materials and manufacturing to provide durable, precision cable connection solutions.
Explore Glenair products and similar high-quality D-Sub Connectors in the EnvMart Electronics Components category for your industrial and commercial connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current capacity of 3 Amps, ensuring efficient power transmission.
It operates reliably in temperatures ranging from -55°C to 150°C, making it suitable for harsh environments.
This connector features 100 high-density contacts arranged in a compact design.
The housing is made of aluminium with nickel plating, while the contacts are made of beryllium copper alloy with gold over nickel plating for enhanced conductivity and corrosion resistance.
It features a pre-wired termination type with 26 AWG pigtail wires that are 450mm (18 inches) in length, color-coded for easy identification.
Yes, it is suitable for aerospace, military, industrial electronics, and telecommunication systems that require high-performance interconnections.
It includes epoxy and interfacial seals to protect against moisture and contaminants, enhancing its reliability in harsh conditions.
The connector features a male/female gender design, allowing for versatile cable connections.
The gold over nickel plating on the contacts provides superior conductivity and corrosion resistance, ensuring reliable electrical connections.
The specific dimensions of the connector are not provided in the available data. Please refer to the manufacturer's specifications for detailed measurements.
This connector is manufactured in the United Kingdom.
It is designed for cable mounting, facilitating easy integration into various applications.
