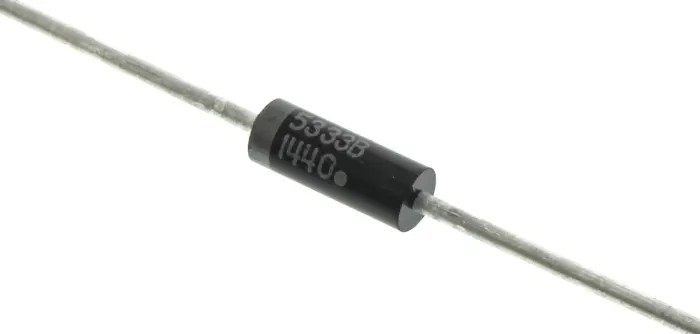

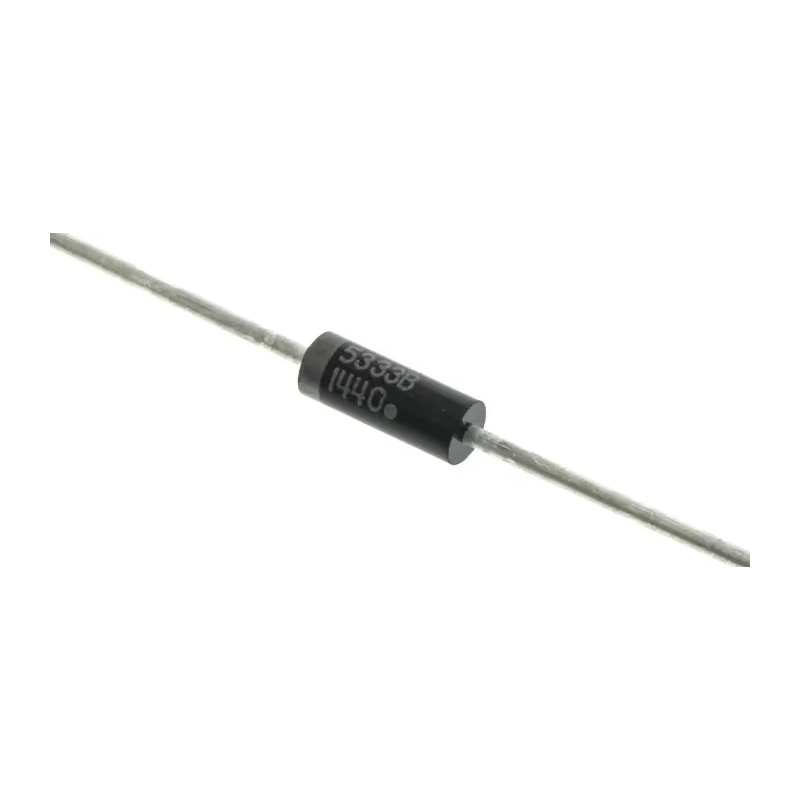

onsemi Zener Diode 3.3 V 5 W Through Hole 2-Pin DO-15 1N5333BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5333BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 380mA |
| Maximum Reverse Leakage Current | 300μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3Ω |
Key Features
- Single diode configuration designed for voltage regulation.
- Offers a maximum power dissipation rating of 5 watts.
- Nominal zener voltage of 3.3 volts with ±5% tolerance.
- Constructed with a corrosion-resistant molded thermosetting plastic package.
- Features tight voltage regulation and low impedance for superior performance.
- Designed for through hole mounting with 2 pins in a DO-15 package.
- Operating temperature range from -65°C to 200°C.
- Maximum reverse leakage current of 300 μA and zener impedance of 3 ohms.
Product Description
onsemi 1N5333BRLG Zener Diode is a single element device embodied in a DO-15 through hole package with a nominal zener voltage of 3.3 V and a maximum power dissipation of 5 W. This axial leaded diode series offers tight voltage regulation with a ±5% tolerance and features a molded, corrosion-resistant thermosetting plastic package suitable for harsh environmental conditions.
The device's robust construction uses silicon-oxide passivated junctions that enhance voltage stability and provide low maximum zener impedance of 3 ohms, making it highly efficient as a voltage regulator diode. It supports a test current of 380 mA with maximum reverse leakage current limited to 300 μA.
Designed for through hole mounting with two pins, the 1N5333BRLG is ideal for industrial electronics applications requiring reliable voltage regulation, including power supply circuits, voltage references, and signal conditioning. Operating temperature range spans from -65°C to 200°C, supporting diverse industrial operating environments.
The corrosion-resistant molded package and readily solderable leads ensure durability and ease of integration on PCB assemblies. The 3.68 mm height and 8.89 mm length package dimensions make it suitable for compact assemblies where space is a concern.
Single diode configuration designed for voltage regulation. Provides a maximum power dissipation of 5 watts ensuring robust performance. Nominal Zener voltage of 3.3 V with ±5% voltage tolerance for precision. Corrosion resistant molded thermosetting plastic package enhances longevity.
Through hole mount type with 2 pins in a DO-15 package for easy installation. Operating temperature range from -65°C to 200°C supports harsh environments. Maximum reverse leakage current of 300 μA and zener impedance of 3 Ω.
Test current rating of 380 mA ensuring stable device operation. Leads are readily solderable, providing assembly convenience. Ideal for industrial and power electronics applications requiring stable voltage reference. Explore more Zener Diodes and semiconductor components at EnvMart for industrial, manufacturing, and electronic design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 3.3 volts with a tolerance of ±5%.
It has a maximum power dissipation rating of 5 watts.
This diode is packaged in a DO-15 type and is designed for through hole mounting with 2 pins.
The operating temperature range spans from -65°C to 200°C, making it suitable for diverse industrial environments.
The maximum reverse leakage current is limited to 300 μA.
It supports a test current rating of 380 mA.
The maximum Zener impedance is 3 ohms, contributing to its efficiency as a voltage regulator.
It features a corrosion-resistant molded thermosetting plastic package, enhancing its longevity in harsh environments.
It offers tight voltage regulation, making it highly efficient for applications requiring stable voltage references.
The dimensions are 3.68 mm in height and 8.89 mm in length, suitable for compact assemblies.
It is ideal for industrial electronics applications requiring reliable voltage regulation, such as power supply circuits and voltage references.
The country of origin for the 1N5333BRLG is India.
