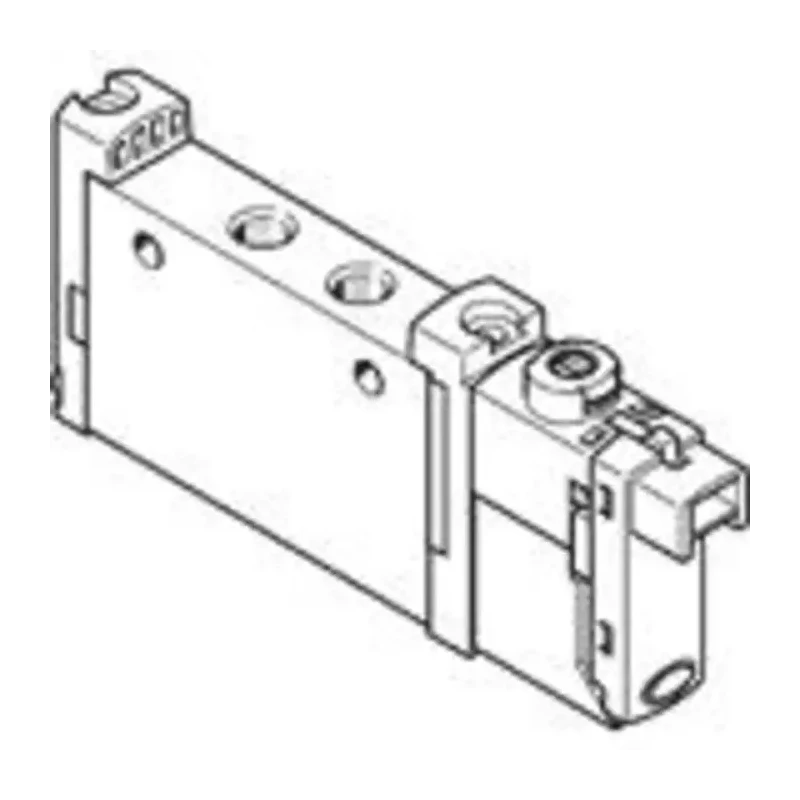

Festo Pneumatic Solenoid Valve 5/2 Solenoid Metric VUVG Series 24V DC Aluminium Alloy Body VUVG-L10-M52-MT-M5-1H2L-W1
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVG-L10-M52-MT-M5-1H2L-W1 |
| Width | 10mm |
| Mount Type | In-Line |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 2 |
| Port Size | M5 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 190L/min |
| Standards/Approvals | cULus, RoHS |
| Connection Thread Standard | Metric |
| Minimum Pilot Pressure | 3bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Manifold Block |
| Solenoid Type | Single |
| Port Gender | Male |
| Solenoid Power Consumption | 1W |
Key Features
- Constructed with an aluminium alloy body for durability and lightweight performance.
- Operates at 24V DC with a solenoid power consumption of 1W.
- Five ports with M5 metric connection threads and male port gender.
- Maximum operating pressure up to 8 bar and maximum flow rate of 190 L/min.
- Valve function is 5/2 with two positions, ideal for pneumatic control applications.
- Sealed with nitrile rubber (NBR) to ensure leak-free operation.
- Capable of operating between -5°C to 60°C temperature range.
- In-line mount type with manifold block electrical connection for efficient installation.
Product Description
Festo VUVG-L10-M52-MT-M5-1H2L-W1 Pneumatic Solenoid Valve 5/2 Solenoid Metric from the VUVG Series is engineered for industrial pneumatics requiring reliable, precise control of air flow with manifold mounting capability. Operating at 24V DC and constructed with an aluminium alloy body, this valve supports pneumatic applications across manufacturing, automation, HVAC, and fluid power systems.
The valve includes five ports featuring M5 metric thread and a male port gender configuration. It utilizes a nitrile rubber (NBR) seal ensuring robustness against wear and leak prevention. The valve’s dual-position 5/2 function, with internal pilot air support and mechanical spring reset, is suitable for controlling double-acting cylinders or similar pneumatic actuators.
This solenoid valve maintains operational integrity across temperatures from -5°C to 60°C and supports maximum operating pressures up to 8 bar with a maximum flow rate of 190 L/min, ensuring it meets demanding performance requirements. The manifold block electrical connection type facilitates simplified connection and installation within pneumatic control manifolds.
Constructed with durable aluminium alloy body material. Operates efficiently at 24V DC with 1W solenoid power consumption. Equipped with 5 ports; M5 connection thread standard and male port gender. Valve function 5/2 with 2 positions for versatile pneumatic control.
Sealed with nitrile rubber (NBR) for reliable sealing performance. Mount type is in-line, ideal for manifold assemblies. Operational temperature range from -5°C to 60°C. Maximum operating pressure of 8 bar with a maximum flow rate of 190 L/min.
Certified to cULus and RoHS standards.
This valve is ideal for use in industrial automation, mechanical and fluid power tools, pneumatic control systems, and manufacturing processes requiring precise valve actuation. Designed and manufactured in Germany, it ensures high-quality and robust pneumatic performance.
Explore the full range of Pneumatic Solenoid Valves and pneumatic components at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
This solenoid valve operates at a voltage of 24V DC.
The maximum flow rate for this valve is 190 L/min.
It utilizes nitrile rubber (NBR) for sealing, ensuring leak-free operation.
The valve can operate within a temperature range of -5°C to 60°C.
This unit has five ports with M5 metric connection threads.
The actuation type of this valve is solenoid.
The valve function is 5/2 with two positions, suitable for controlling double-acting cylinders.
It features a manifold block electrical connection type for efficient installation.
The body of this solenoid valve is constructed from aluminium alloy.
This model is certified to cULus and RoHS standards.
The minimum pilot pressure required is 3 bar.
