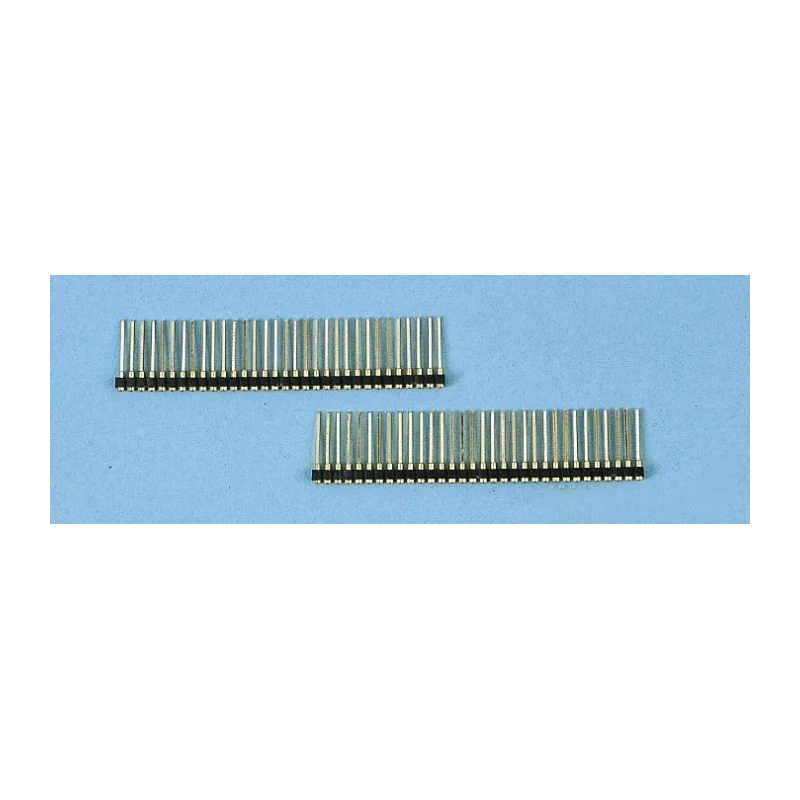

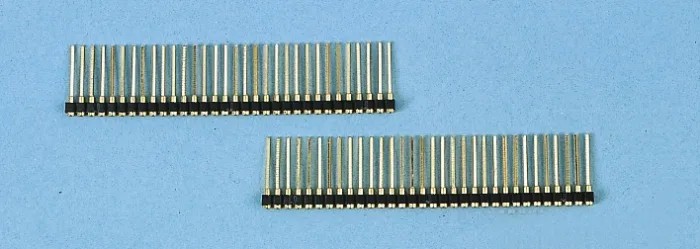

E-TEC SIB Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SIB-120-S003-55

Free Delivery in India | Lowest Global Shipping Charges

E-TEC SIB Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SIB-120-S003-55

Name: E-TEC SIB Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SIB-120-S003-55
Brand: E-TEC
SKU: 99943
Price: 34.66 USD
Availability: InStock



Category PCB Socket Brand E-TEC Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	E-TEC
Orientation	Straight
Current	1A
Model	SIB-120-S003-55
Mount Type	Through Hole
Housing Material	Plastic
Contact Material	Beryllium Copper Alloy
Series	SIB
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	2.54mm

Key Features

The socket supports a current rating of 1 ampere for reliable electrical performance.
It is constructed from durable plastic housing material, ensuring long-term mechanical stability.
The contact material is a beryllium copper alloy with gold plating to promote excellent conductivity and corrosion resistance.
Designed for through hole mounting with straight orientation compatible with board-to-board connector systems.
Operating temperature ranges from -55°C minimum to 125°C maximum, suitable for demanding electronic applications.
The stacking height is precisely 2.54 mm facilitating compact PCB design.
This solder termination type socket belongs to the SIB series and features female contact gender for wire-to-board connections.
No specific standards or approvals are indicated for this product.

Product Description

The E-TEC SIB-120-S003-55 is a professional-grade straight through hole PCB socket designed for secure and effective wire-to-board connections in electronic assemblies.

Featuring 20 gold-plated contacts arranged in a single row with a 2.54 mm pitch, it offers reliable conduction and corrosion resistance. The housing is crafted from high-quality plastic that ensures mechanical durability and electrical insulation.

Suitable for use with printed circuit boards requiring through hole mounting, this socket supports a current rating of 1 ampere and operates efficiently within the temperature range of -55°C to 125°C, making it ideal for industrial, commercial, and laboratory electronics applications.

The connector system type is board-to-board, with female contact gender assuring compatibility with wrapping wire connections. Its compact stacking height of 2.54 mm allows for efficient space utilization on PCB layouts.

This socket is part of E-TEC's SIB series, known for performance and durability in demanding electronic component applications. The socket supports a current rating of 1 ampere for reliable electrical performance. It is constructed from durable plastic housing material, ensuring long-term mechanical stability.

The contact material is a beryllium copper alloy with gold plating to promote excellent conductivity and corrosion resistance. Designed for through hole mounting with straight orientation compatible with board-to-board connector systems.

Operating temperature ranges from -55°C minimum to 125°C maximum, suitable for demanding electronic applications. The stacking height is precisely 2.54 mm facilitating compact PCB design. This solder termination type socket belongs to the SIB series and features female contact gender for wire-to-board connections.

No specific standards or approvals are indicated for this product.

This product is essential for electronic component manufacturers, industrial assembly, and repair professionals who require reliable connections with standardized pin spacing and mechanical robustness.

Explore more PCB Sockets and electronic components on EnvMart to find the perfect fit for your technical needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This socket supports a current rating of 1 ampere, ensuring reliable electrical performance.

The operating temperature range for this model is from -55°C to 125°C, making it suitable for demanding electronic applications.

The contact pitch size is 2.54 mm, which facilitates compact PCB design and compatibility with standard pin spacing.

The housing is made from durable plastic, while the contacts are constructed from a beryllium copper alloy with gold plating for excellent conductivity and corrosion resistance.

This model features 20 contacts arranged in a single row, designed for effective wire-to-board connections.

The socket uses a solder termination type, which is standard for secure connections in electronic assemblies.

This socket is designed with a straight orientation, compatible with board-to-board connector systems.

The stacking height of this model is precisely 2.54 mm, allowing for efficient space utilization on PCB layouts.

This model supports a board-to-board connector system, making it suitable for various electronic applications.

The socket is manufactured in India.

The contact gender of this socket is female, designed for wire-to-board connections.

No specific standards or approvals are indicated for the E-TEC SIB-120-S003-55 socket.
