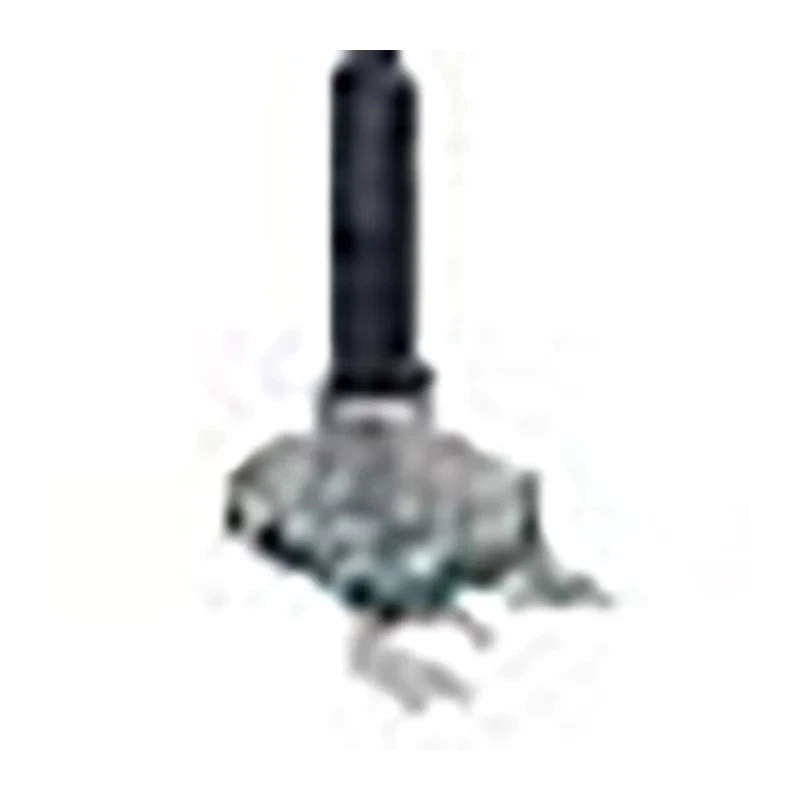

Bourns PEC16 Series Incremental Rotary Encoder 5V DC, 24 PPR, Quadrature Signal, Solid Shaft 6 mm
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | PEC16 |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | PEC16 |
| Overall Width | 16mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 6mm |
| Overall height | 17.7mm |
| Shaft Type | Solid |
| Terminal type | PCB Terminal |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 31.5mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 100rpm |
| Output Signal Type | Quadrature |
Key Features
- Compact design with long operational life and high reliability.
- Provides 24 pulses per revolution for accurate position feedback.
- Supports a maximum rotational speed of 100 RPM.
- Equipped with a solid 6 mm shaft and panel mount type configuration.
- Features PCB terminal connections for easy integration.
- Operating temperature range from -30°C to 70°C with IP40 ingress protection.
- Low cost compared to optical encoders without sacrificing performance.
- Suitable for industrial automation, motion control, and sensor applications.
Product Description
The Bourns PEC16-4220F-S0024 is a precision incremental rotary encoder designed for industrial and automation applications requiring reliable and accurate rotational position feedback. Operating at 5V DC, this rotary encoder delivers a quadrature signal output with 24 pulses per revolution, making it ideal for precise speed and position sensing tasks.
The encoder features a solid 6 mm shaft and is designed for panel mount installation, ensuring stable mounting in control gear and sensor assemblies. Its compact construction offers a balance between durability and ease of integration in automated systems.
Operating reliably within a temperature range of -30°C to 70°C, the encoder has an IP40 ingress protection rating that protects it from solid particles. The PCB terminal interface simplifies wiring and connection to control electronics.
Designed to withstand tough industrial environments, this encoder provides high reliability with a long operational life. Compared to optical encoders, the PEC16 series is cost-effective while maintaining performance standards.
Compact design with long operational life and high reliability. 24 pulses per revolution for high positional accuracy. Maximum speed rating of 100 RPM ensures suitability for moderate-speed applications. Solid 6 mm shaft construction for robust mechanical coupling.
Panel mount configuration facilitates secure installation in sensor assemblies. PCB terminal type simplifies electrical interfacing. Operating temperature range from -30°C up to 70°C for versatile environmental tolerance.
IP40 rating protects against solid particulate ingress. Complies with RoHS directives ensuring environmental safety.
This rotary encoder is widely used in industrial automation, manufacturing machinery, robotics, and motion control systems requiring precise incremental position measurements. Its combination of durability, accuracy, and cost-efficiency makes it an excellent choice for various sensor and control applications.
Explore more sensors and motion control solutions in the Electronics & Electricals category on EnvMart for high-quality, reliable components.
Explore more products in our Rotary Encoders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of the Bourns PEC16 series incremental rotary encoder is 100 RPM.
This model provides a quadrature signal output, delivering 24 pulses per revolution for accurate position feedback.
The operating temperature range for the Bourns PEC16-4220F-S0024 is from -30°C to 70°C.
It features a panel mount configuration, allowing for secure installation in sensor assemblies and control gear.
The shaft diameter of this model is 6 mm, designed for solid shaft applications.
It is equipped with PCB terminal connections, simplifying the wiring and integration process.
The encoder has an IP40 ingress protection rating, which protects it from solid particles.
This model complies with RoHS directives, ensuring environmental safety and compliance.
The overall dimensions are 16 mm in width, 17.7 mm in height, and 31.5 mm in depth.
It is suitable for industrial automation, manufacturing machinery, robotics, and motion control systems requiring precise incremental position measurements.
This encoder provides 24 pulses per revolution, enabling precise speed and position sensing tasks.
The Bourns PEC16-4220F-S0024 utilizes incremental encoder technology for reliable position feedback.
