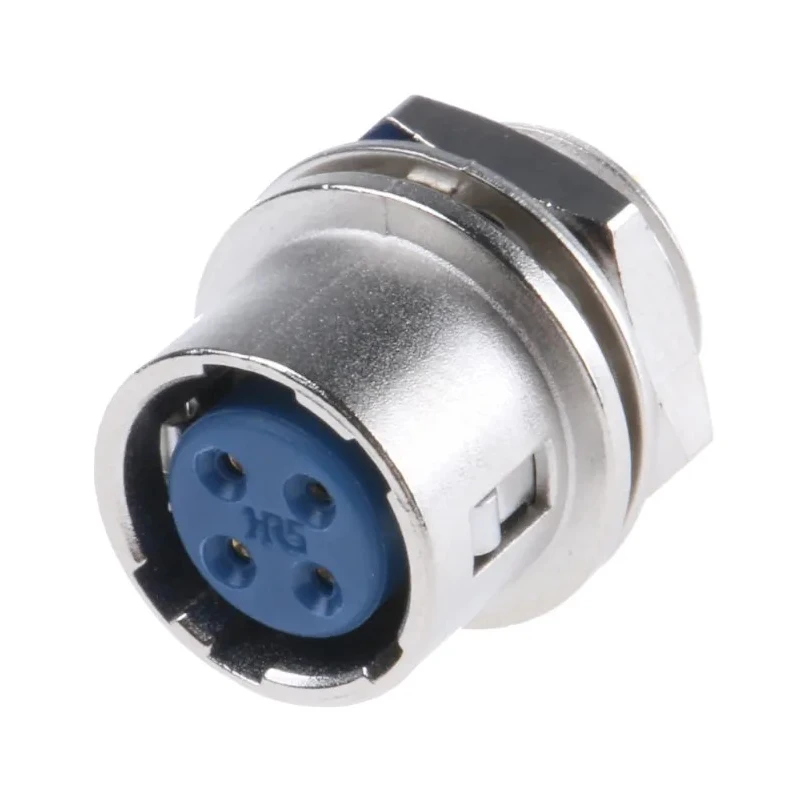

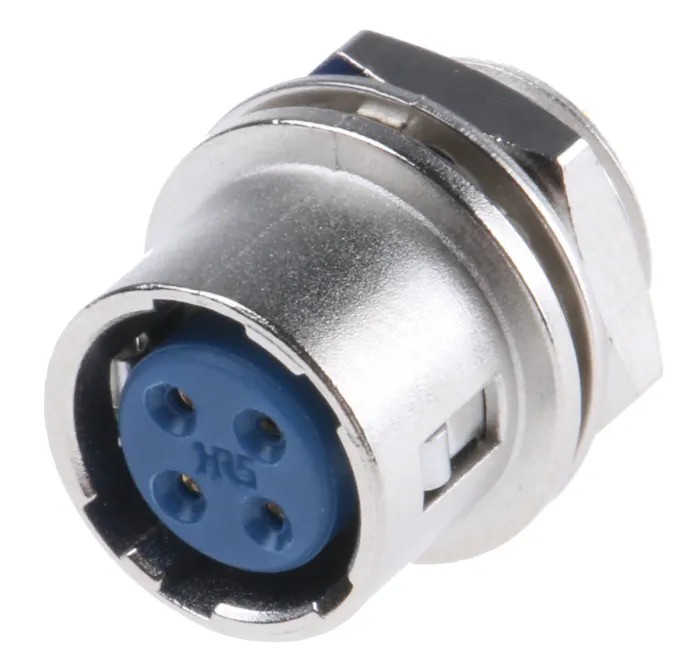

Hirose Miniature Circular Connector, 4 Contacts, Panel Mount Socket Female, Push-Pull Latching, 150-200V AC, 2A HR10

Free Delivery in India | Lowest Global Shipping Charges

Hirose Miniature Circular Connector, 4 Contacts, Panel Mount Socket Female, Push-Pull Latching, 150-200V AC, 2A HR10

Name: Hirose Miniature Circular Connector, 4 Contacts, Panel Mount Socket Female, Push-Pull Latching, 150-200V AC, 2A HR10
Brand: Hirose
SKU: 99750
Price: 15.59 USD
Availability: InStock



Category Industrial Circular Connector Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	150.0, 200.0V ac
Brand	Hirose
Orientation	Straight
Current	2A
Model	HR10
Mount Type	Panel Mount
Housing Material	Brass, Nickel Alloy
Contact Material	Beryllium Phosphor Bronze
Series	HR10
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Pole Format	4
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Female
Shell Size	11 mm
Mating Type	Push Pull
Connector Size	Miniature
Plug/Socket	Socket
4 way video push pull panel mount skt,2ABrand	Hirose

Key Features

The connector features a brass and nickel alloy housing for durability.
It supports a maximum voltage of up to 200 V AC and a current rating of 2 A.
Contacts are made from beryllium phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
Suitable for operating temperatures ranging from -25°C to 85°C.

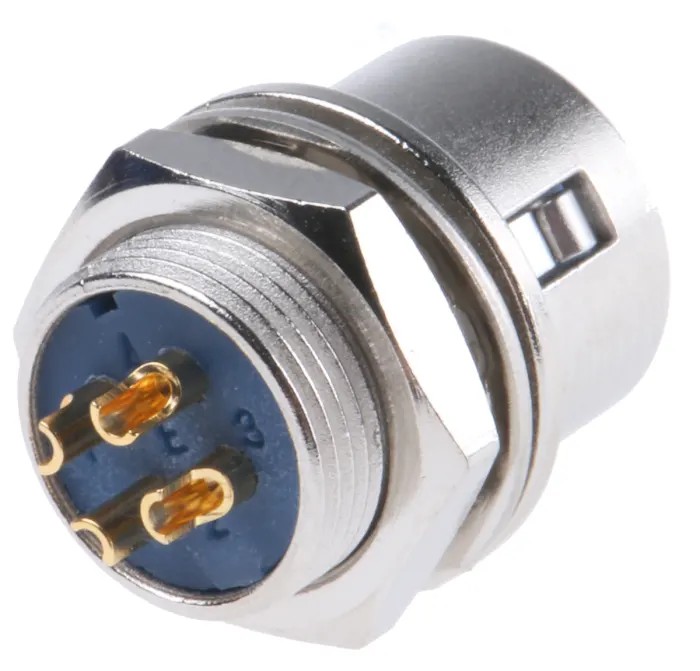

Solder bucket termination type ensures secure cable connection.
Compact miniature size with 11 mm shell size fits space-constrained applications.
Designed with a five key polarization system to prevent connection errors.
Quick connect and disconnect aided by the push-pull latching system.

Product Description

Hirose HR10-7R-4S(73) circular connector is a subminiature industrial connector offering high reliability and durability for electronic and electrical applications. This panel mount socket features a compact design with 4 contacts and a straight orientation suitable for dense installations.

Built with brass and nickel alloy housing, the connector withstands harsh environments and supports continuous operation from -25°C up to 85°C. The contacts are crafted from beryllium phosphor bronze with gold plating, ensuring excellent electrical conductivity and corrosion resistance for stable signal transmission.

The connector supports a voltage rating of up to 200 V AC and a current capacity of 2 A, making it suitable for low power industrial and instrumentation equipment. Its solder bucket termination provides a secure and reliable soldered cable connection suitable for permanent installations.

Featuring Hirose's push-pull latching mechanism with a five key polarization system, the connector offers quick mating and unmating while preventing misconnections, enhancing operational safety and ease of maintenance.

This miniature connector with an 11 mm shell size is ideal for use in industrial, laboratory, manufacturing, and instrumentation applications where space saving and dependable connectivity is essential.

The connector features a brass and nickel alloy housing for durability. It supports a maximum voltage of up to 200 V AC and a current rating of 2 A. Contacts are made from beryllium phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.

Suitable for operating temperatures ranging from -25°C to 85°C. Solder bucket termination type ensures secure cable connection. Compact miniature size with 11 mm shell size fits space-constrained applications. Designed with a five key polarization system to prevent connection errors.

Quick connect and disconnect aided by the push-pull latching system. Explore the extensive range of Hirose connectors and electronic components at EnvMart for high-quality, reliable industrial solutions.

Explore more products in our Industrial Circular Connector category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector supports a maximum voltage of up to 200 V AC and a current rating of 2 A.

It features a brass and nickel alloy housing, and the contacts are made from beryllium phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.

The connector is suitable for operating temperatures ranging from -25°C to 85°C.

This model is designed with a push-pull latching system that allows for quick mating and unmating while preventing misconnections.

It uses a solder bucket termination type, ensuring a secure and reliable soldered cable connection suitable for permanent installations.

The connector has a compact miniature size with an 11 mm shell size, making it suitable for space-constrained applications.

This connector features 4 contacts and is designed as a female socket.

The connector has a straight orientation, which is suitable for dense installations.

It is suitable for use in industrial, laboratory, manufacturing, and instrumentation applications where reliable connectivity is essential.

It is designed with a five key polarization system to prevent connection errors, enhancing operational safety.

The connector is manufactured in India.

This connector belongs to the HR10 series by Hirose.
