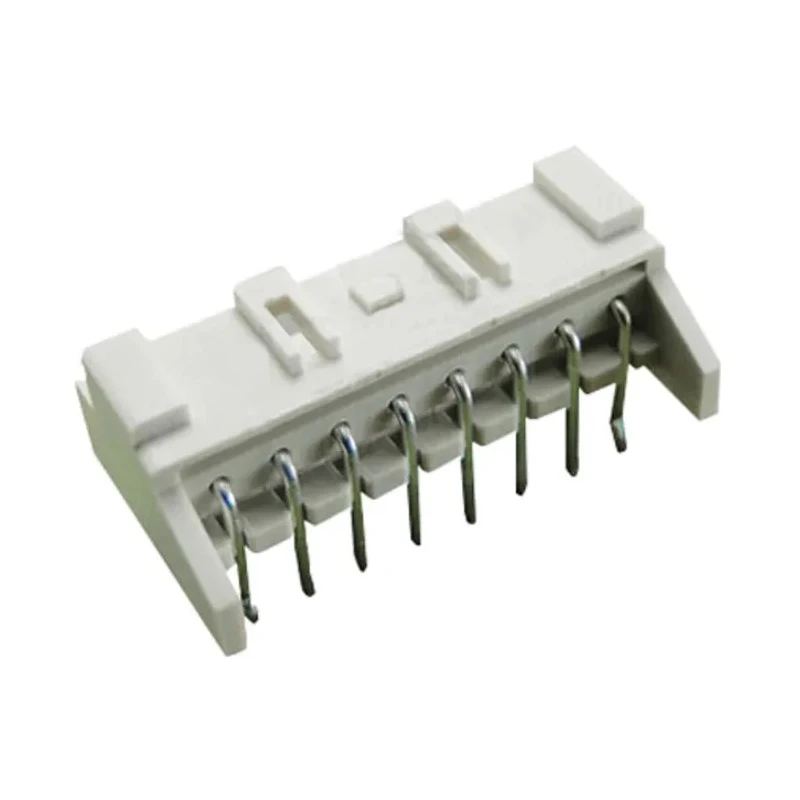

JST XA Series Right Angle Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S08B-XASK-1 (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XA Series Right Angle Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S08B-XASK-1 (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S08B-XASK-1 (LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	XA
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with copper alloy contacts plated with tin for durability.
Supports a voltage rating of 250V and current carrying capacity of 3A.
Designed with locking ramp and polarization bosses to ensure secure, accurate PCB insertion.
Glass filled PA66 nylon housing reduces solder cracking risks during assembly.
Operates reliably in temperatures from -55°C to 105°C.
Through hole mount type with a right-angle orientation for space-saving PCB layouts.
Male contact gender suitable for wire-to-board connector applications.
Designed and manufactured in Japan ensuring high quality standards.

Product Description

JST S08B-XASK-1 (LF)(SN) Right Angle Through Hole PCB Header is a shrouded 8-contact connector with 2.5 mm pitch and a single row configuration, designed for secure and reliable wire-to-board connections in electronic assemblies.

This connector features a locking ramp device that prevents disconnection caused by vibration or during assembly, along with insertion guides and polarization bosses that facilitate easy and precise mating to printed circuit boards. The housing is made from glass filled PA66 nylon, a material known for its excellent resistance to solder cracking, enhancing durability and assembly reliability.

With a current rating of 3A and a voltage tolerance of 250V, this component supports a wide range of electronic applications requiring stable electrical performance. Its operating temperature range of -55°C to 105°C allows it to function effectively in demanding environmental conditions.

The right-angle orientation and through-hole mounting make it suitable for compact PCB layouts, improving space usage without compromising connection integrity. The male copper alloy contacts are tin plated to ensure corrosion resistance and stable conductivity.

Durable copper alloy contacts with tin plating provide reliable electrical performance. Shrouded housing with locking mechanism ensures secure connections and vibration resistance. Insertion guides and polarization prevent incorrect insertion and facilitate assembly.

Glass filled PA66 nylon housing reduces solder cracking risks during manufacturing. Wide operating temperature range from -55°C to 105°C for diverse applications. Right angle, through hole mount ideal for space-efficient PCB designs.

Rated at 250V and 3A for robust electrical current handling. Manufactured in Japan, reflecting high-quality standards.

This JST XA Series PCB header connector is ideal for use in industrial electronics, telecommunications, instrumentation, and consumer electronics requiring secure wire-to-board connections with high reliability. It supports applications in fields such as manufacturing equipment, automation systems, and electronic device assembly.

Explore the range of JST connectors and related components available at EnvMart to ensure optimal component compatibility and quality for your electronic design and manufacturing needs.

Explore more products in our PCB Headers category.
