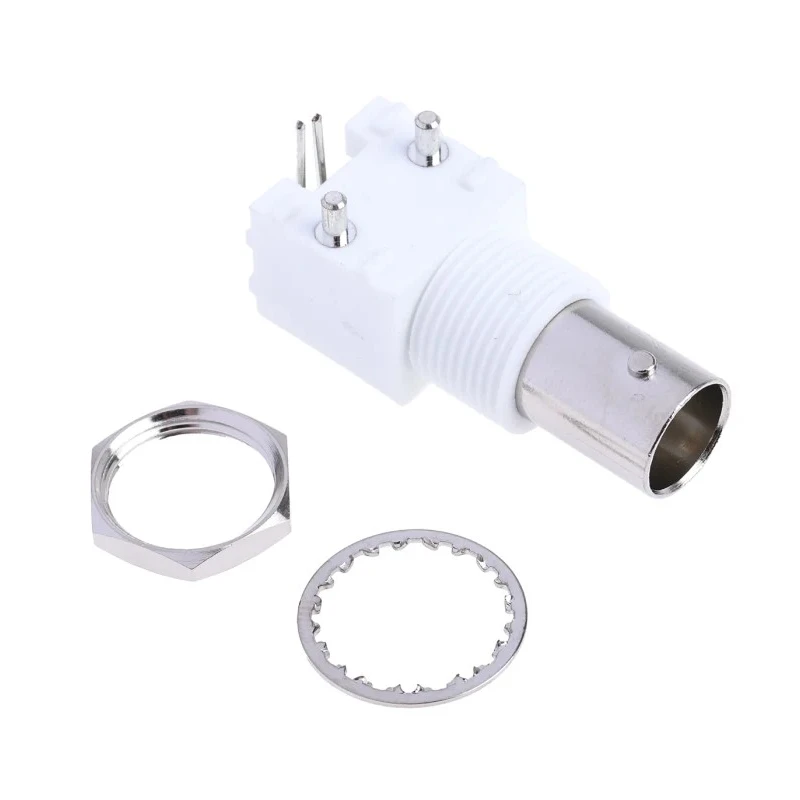

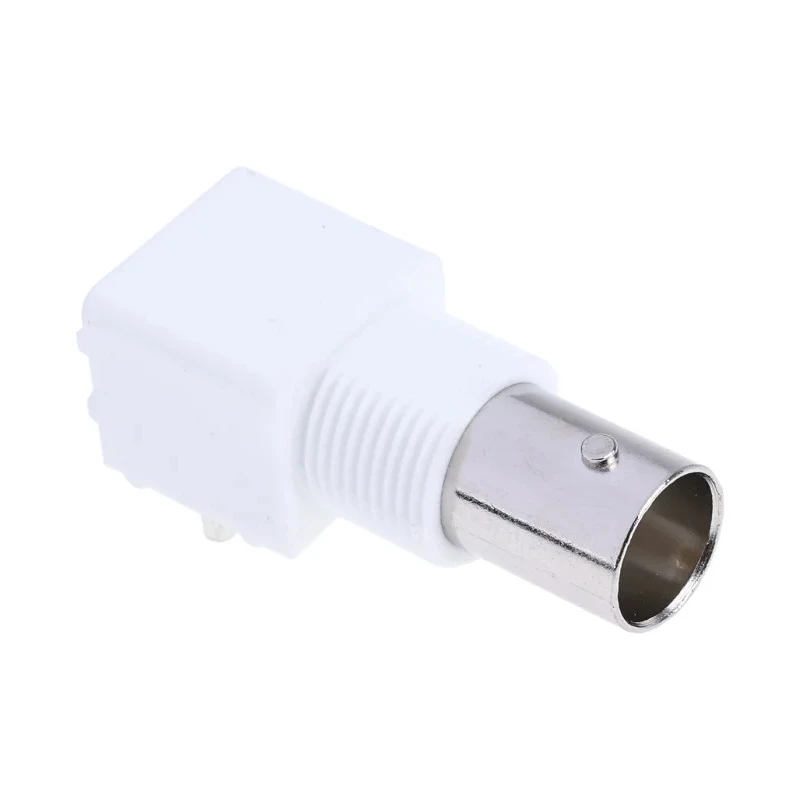

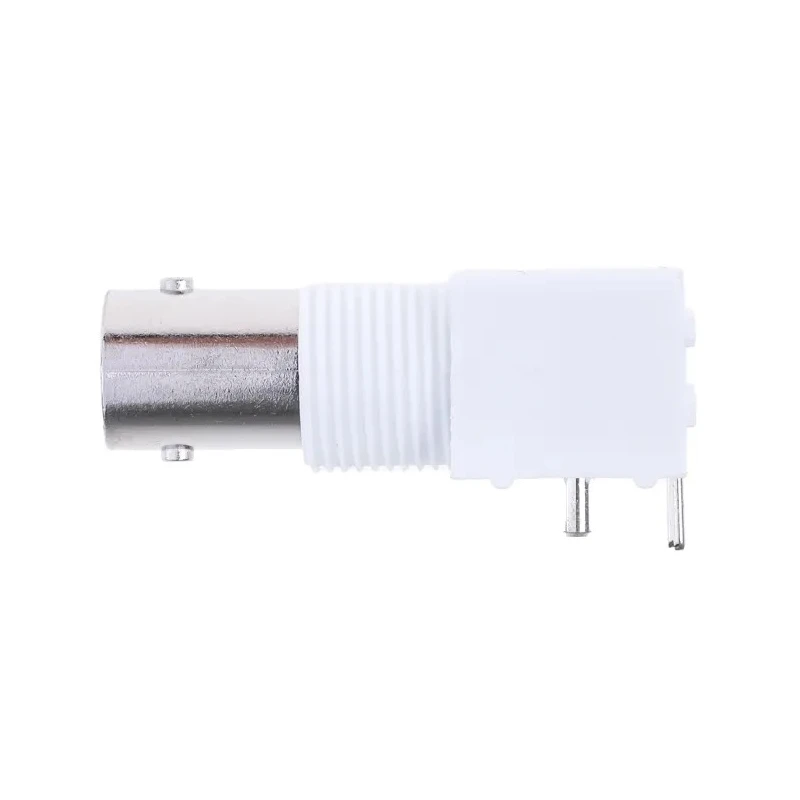

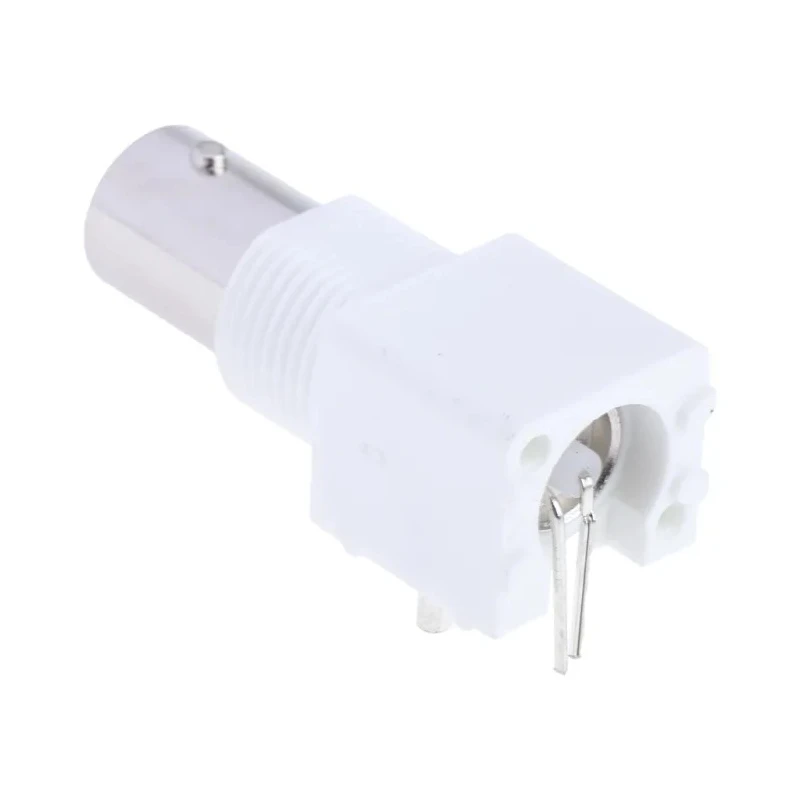

RS PRO BNC Series Coaxial Connector PCB Female Right Angle, 75 Ω, Solder Termination 546-5115
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-5115 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO, jack PCB Mount, 75Ω, Solder Termination, Right Angle BodyBrand | RS PRO |
Key Features
- Designed for PCB mounting with a low profile for space efficiency.
- Gold-plated contact ensures excellent conductivity and long service life.
- Features a robust nickel-plated body with PTFE insulation for increased reliability.
- Operates up to 1 GHz frequency with normal polarity and phosphor bronze contact material.
- Bulkhead mounting suitable for panel and chassis installation.
- Resistant to temperatures ranging from -40°C to 60°C for versatile environments.
- Right angle orientation allows for compact wiring and ease of use.
Product Description
RS PRO 546-5115 BNC Series Coaxial Connector PCB Female is a high-quality right angle Coaxial Connector designed for PCB mounting applications. This connector supports a 75 Ω impedance and operates reliably up to 1 GHz frequency, making it suitable for RF signal transmission. The solder termination type ensures a secure and lasting connection to printed circuit boards.
The connector features a nickel-plated robust body combined with gold-plated center pin contacts crafted from phosphor bronze to maximize conductivity and durability. PTFE insulation material enhances operational reliability, even in demanding industrial environments.
Designed with a bulkhead mount, this BNC connector securely fits onto panels or chassis, enabling efficient setups in telecom, medical equipment, CCTV, satellite communications, and cable modem applications. Its right angle design and low profile contribute to space-saving installations and simplified wiring schemes.
Designed for PCB mounting with a low profile for space efficiency. Gold-plated contact ensures excellent conductivity and long service life. Features a robust nickel-plated body with PTFE insulation for increased reliability.
Operates up to 1 GHz frequency with normal polarity and phosphor bronze contact material. Bulkhead mounting suitable for panel and chassis installation. Resistant to temperatures ranging from -40°C to 60°C for versatile environments.
Right angle orientation allows for compact wiring and ease of use.
This RS PRO connector is ideal for industrial and commercial applications including RF signal transmission in telecommunications, broadcast media, and testing equipment. It adheres to high manufacturing standards ensuring consistent performance and longevity in professional settings.
Explore more coaxial and PCB connectors in our extensive RS PRO product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably up to 1 GHz frequency, making it suitable for RF signal transmission.
It features a solder termination type, ensuring a secure and lasting connection to printed circuit boards.
The connector supports a 75 Ω impedance, which is standard for many RF applications.
The body is nickel-plated, with gold-plated center pin contacts made from phosphor bronze, and PTFE insulation for enhanced reliability.
It is resistant to temperatures ranging from -40°C to 60°C, allowing for versatile use in various environments.
This BNC connector is designed for PCB mounting and features a bulkhead mount suitable for panel and chassis installation.
It has a right angle orientation, which contributes to compact wiring and ease of use in installations.
It is ideal for applications in telecommunications, broadcast media, testing equipment, CCTV, satellite communications, and cable modems.
The contact material is phosphor bronze, which is known for its excellent conductivity.
This connector is classified as a standard size, making it compatible with various setups.
This model is a female connector, designed for use with compatible male connectors.
