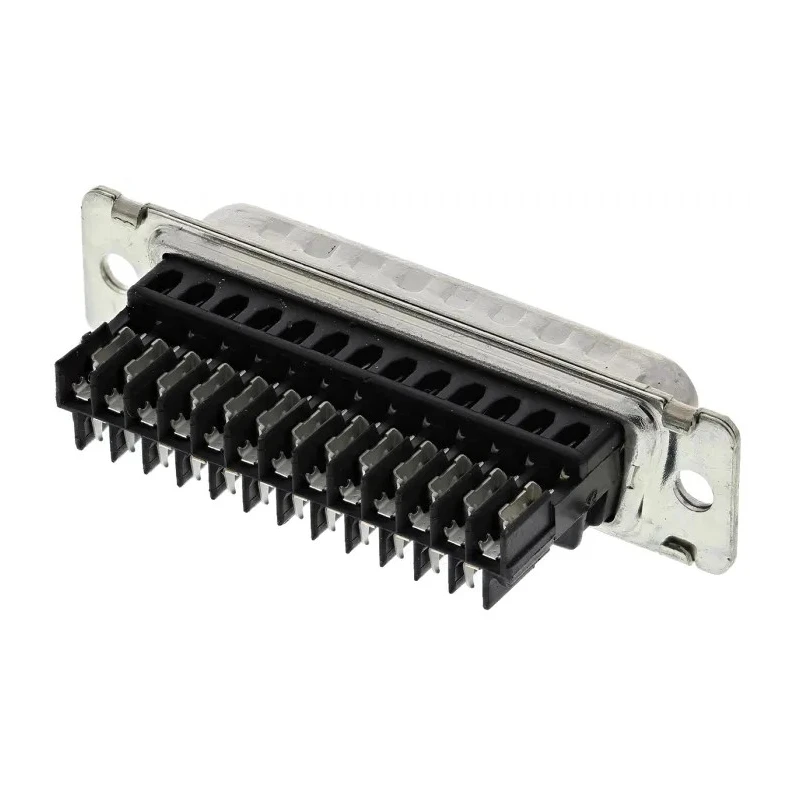

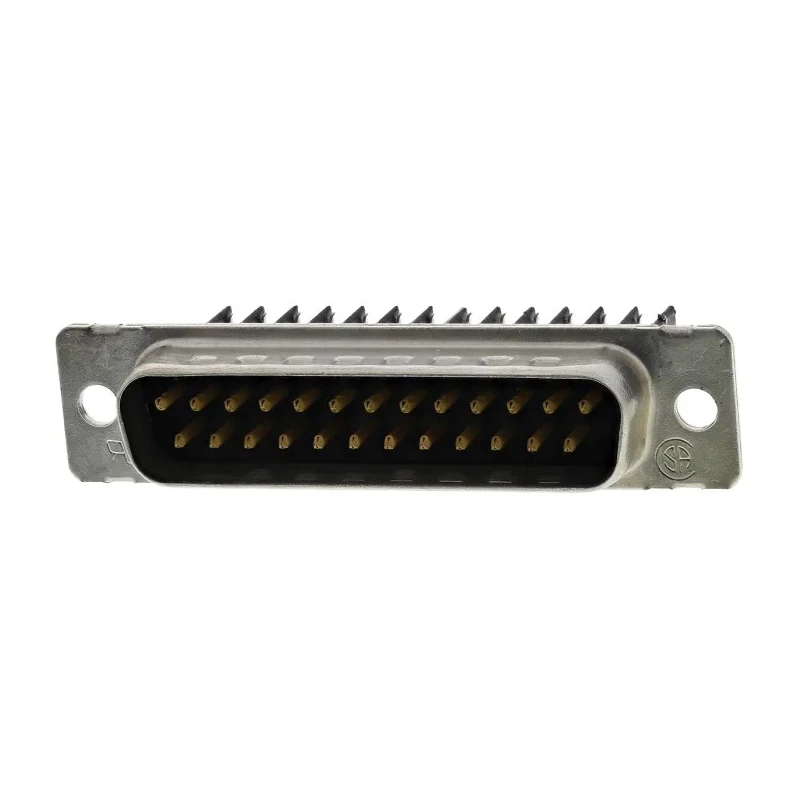

TE Connectivity Amplimite HDE-20 25 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male 1-745496-7

TE Connectivity 1-745496-7 Amplimite HDE-20 25 Way Straight 2.76 mm Pitch Cable D-Sub Connector Male is a high-quality electrical connector designed for reliable interfacing in electronic components and systems. It features 25 electrical contacts spaced at a 2.76 mm pitch, providing accurate signal integrity suitable for demanding industrial environments.

The metal shell is made of tin-plated steel, providing a durable protective housing with corrosion resistance and mechanical strength. The black thermoplastic insert meets the 94V-0 fire retardant standard, assuring safety under electrical load conditions.

Contacts are made from phosphor bronze and feature gold plating over nickel at the mating end and tin plating on the crimping end. This provides exceptional electrical conductivity and resistance to wear and corrosion over extended service life.

The connector is designed with a straight orientation and cable mount type with IDC termination, facilitating quick and reliable cable connections for discrete wire or jacketed cable assemblies.

Operating temperature ranges from -55°C up to 105°C enable use in harsh industrial, manufacturing, and laboratory settings.

This Amplimite HDE-20 series mates compatibly with HDP and HD-20 series board mount D-sub connectors, enabling flexible system configurations. Metal shell provides mechanical protection and EMI shielding, ensuring signal quality and device protection.

Applications include electronic instrumentation, power and signal connectors in control systems, telecommunications, and precision industrial equipment where robust, dependable connections are required.

Features a 25-contact configuration with 2.76 mm pitch for precise signal transmission. Constructed with a steel housing and gold over nickel plated phosphor bronze contacts for excellent corrosion resistance. Supports operating temperatures from -55°C to 105°C for versatile industrial applications.

Utilizes IDC termination type ensuring secure and efficient cable mounting. Designed with straight orientation and cable mount for convenient assembly. Suitable for mating with HDP and HD-20 board mount D-sub connectors.

Offers a robust metal shell complying with 94V-0 rating ensuring fire retardance. Contact plating provides gold mating ends and tin crimping ends for optimal conductivity.

Choose TE Connectivity Amplimite HDE-20 connectors for your electronic assembly needs with confidence. Browse related D-Sub Connectors and electronic components in the EnvMart catalog for compatible solutions.
