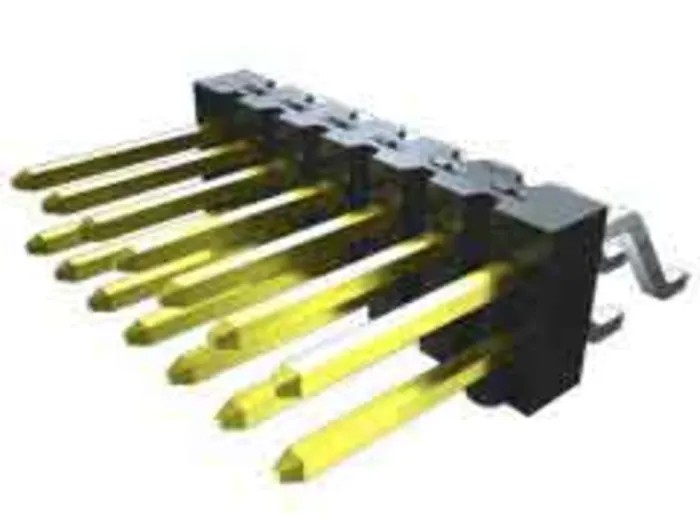

Samtec Pin Header 6 Contacts, 2.54 mm Pitch, 2 Row Unshrouded Surface Mount TSM-103-01-S-DV-P-TR

Samtec TSM-103-01-S-DV-P-TR pin header is a high-quality electronic component specialized for board-to-board connection applications within electronic assemblies and industrial equipment. This pin header features 6 male phosphor bronze contacts plated with gold, ensuring excellent electrical conductivity and corrosion resistance. The housing is made of Liquid Crystal Polymer, which provides high mechanical strength and thermal resistance.

The pins are arranged in 2 rows with a precise 2.54 mm pitch, a standard measurement facilitating compatibility with numerous PCB layouts and connectors. The component is unshrouded and has a straight orientation, designed for surface mount technology (SMT), allowing for efficient automated soldering onto printed circuit boards.

It supports electrical currents up to 4A and voltages up to 475V, making it suitable for a wide range of electronic circuit applications. The operating temperature range from -55°C to 125°C enables reliable performance in harsh industrial and commercial environments. The mating pin length of 5.84 mm ensures secure and stable connector mating with Samtec sockets or compatible components.

The termination type is solder, using mixed technology optimized for surface mount processes. The contact system employs a .025" (0.635 mm) square post design that facilitates easy mating and provides consistent electrical contact.

This pin header is applicable in industrial automation, electronic instrumentation, telecommunications, computing hardware, and other electronic manufacturing uses. Its design enables efficient PCB assembly and robust connector stability while maintaining compact form factor requirements.

Provides 6 male phosphor bronze contacts plated with gold for excellent conductivity. Features a 2.54 mm pitch and 2-row arrangement for compact PCB design integration. Constructed with a durable Liquid Crystal Polymer housing for thermal and mechanical stability.

Supports a current rating of 4A and voltage rating up to 475V for robust electrical performance. Operates reliably within a temperature range of -55°C to 125°C suitable for varied industrial environments. Surface mount termination ensures compatibility with automated PCB assembly processes.

Mating pin length measures 5.84 mm to ensure secure mechanical and electrical connections. Designed specifically for surface mount applications with options to facilitate manufacturing processing.

This Samtec PCB Pin Header is a vital component for electronics manufacturing, offering durability, reliable performance, and compatibility with standard PCB layouts. Explore more in our Electronics Components section at EnvMart.
