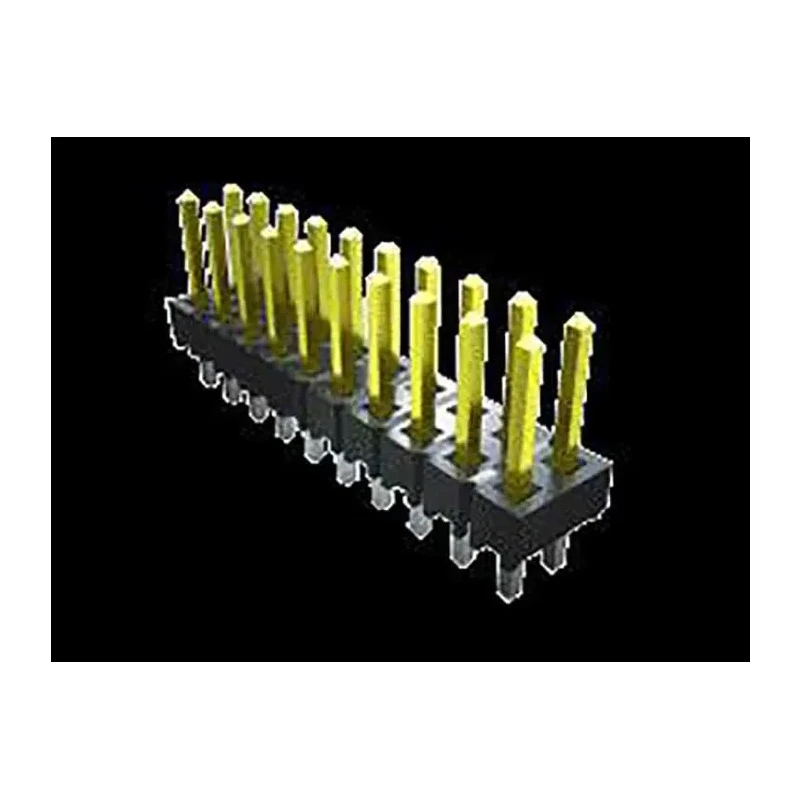

Samtec Pin Header 20 Contacts 2.54 mm Pitch 2 Row Unshrouded Through Hole Board-to-Board Connector TSW-110-07-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.3A |
| Model | TSW-110-07-S-D |
| Mount Type | Through Hole |
| Special Features | Many options for optimizing cost and performance with platings and ruggedizing features |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Features 20 male phosphor bronze contacts plated with gold for reliability.
- Constructed with durable polybutylene terephthalate housing.
- Supports current up to 4.3 A and voltage rating of 550 V.
- Operates reliably within temperature range from -55°C to 125°C.
- Pin pitch and row pitch are 2.54 mm, suitable for standard PCB layouts.
- Provides solder termination with a tail pin length of 2.54 mm and mating pin length of 5.84 mm.
- Unshrouded design offers ease of access and inspection for connectors.
- Ideal for industrial, electronics manufacturing, and PCB assembly applications.
Product Description
The Samtec TSW-110-07-S-D is a high-quality straight through hole pin header designed for board-to-board electronic connections. This component features 20 male contacts arranged in two rows with a 2.54 mm pitch, enabling precise and reliable connections in complex PCB assemblies.
Manufactured with a polybutylene terephthalate housing, the pin header provides enhanced durability and mechanical stability. The phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance, supporting currents up to 4.3 A and voltages up to 550 V.
Operating reliably in harsh environments, it has a wide temperature range from -55°C to 125°C. The unshrouded design facilitates easy access for soldering and maintenance while maintaining secure connections through a solder termination style.
Each tail pin extends 2.54 mm for effective through-hole mounting, and the mating pins measure 5.84 mm, providing secure interfacing with matching connectors. With numerous plating and ruggedizing feature options, this pin header can be optimized for cost and performance in varied industrial, electronics manufacturing, and assembly contexts.
Features 20 male phosphor bronze contacts plated with gold for reliability. Constructed with durable polybutylene terephthalate housing. Supports current up to 4.3 A and voltage rating of 550 V. Operates reliably within temperature range from -55°C to 125°C.
Pin pitch and row pitch are 2.54 mm, suitable for standard PCB layouts. Provides solder termination with a tail pin length of 2.54 mm and mating pin length of 5.84 mm. Unshrouded design offers ease of access and inspection for connectors.
Ideal for industrial, electronics manufacturing, and PCB assembly applications. Offers versatile options for cost optimization and ruggedizing features with plating selections.
This Samtec TSW Series pin header is widely used in industrial electronics, telecommunications, and automated manufacturing for effective electrical board interfacing. It ensures reliable performance in demanding environmental and electrical conditions.
Explore more pin headers and PCB connectors available via EnvMart for comprehensive electronic component solutions.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4.3 A.
The voltage rating for this pin header is 550 V.
It operates reliably within a temperature range from -55°C to 125°C.
This model features 20 male contacts arranged in two rows.
The pin pitch and row pitch are both 2.54 mm, suitable for standard PCB layouts.
It is constructed with a polybutylene terephthalate housing and features phosphor bronze contacts plated with gold.
This model utilizes a solder termination style with a tail pin length of 2.54 mm.
The mating pin length is 5.84 mm.
This connector is designed as unshrouded, which offers ease of access and inspection.
It is ideal for industrial, electronics manufacturing, and PCB assembly applications.
The country of origin for this pin header is India.
There are many options for optimizing cost and performance with various platings and ruggedizing features.
