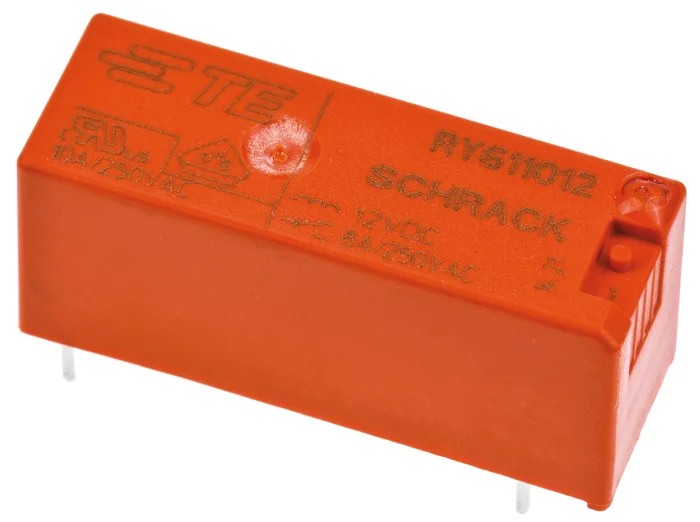

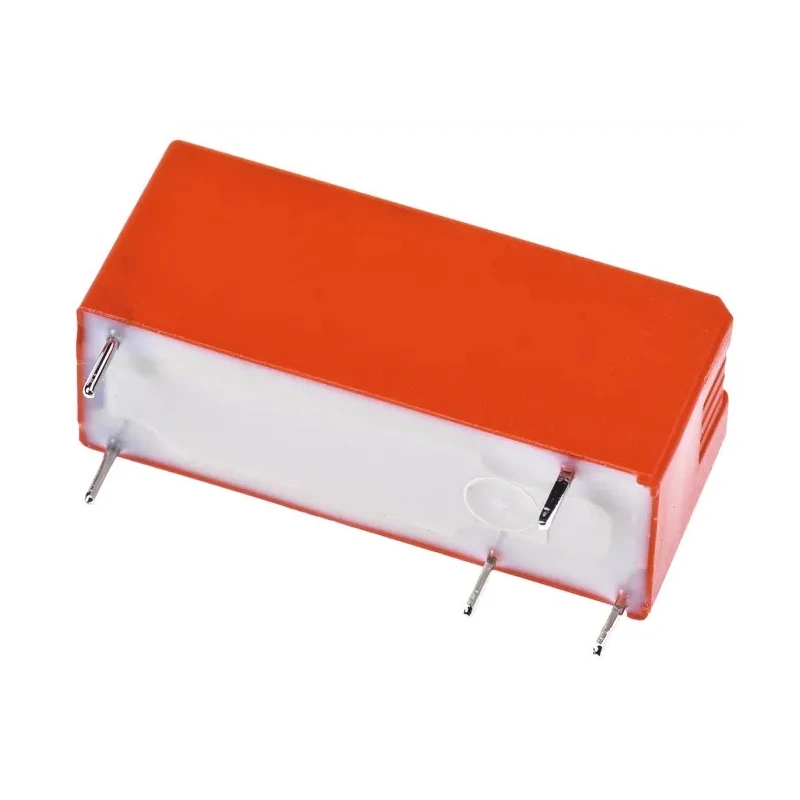

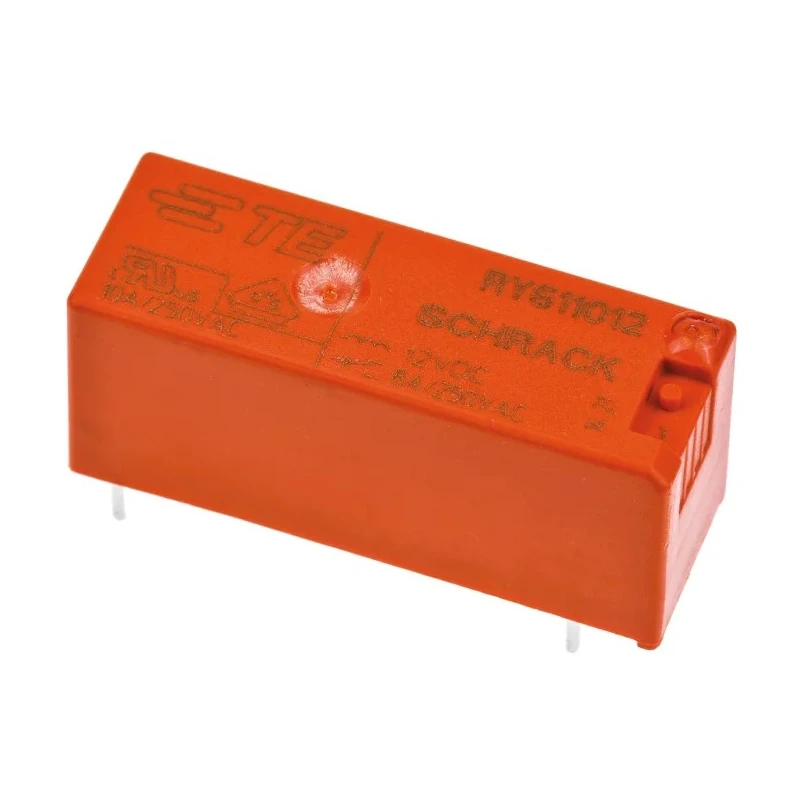

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current SPDT RY611012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY611012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 627Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Designed for PCB mount with solder terminal type.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Switching voltage rated at 400V AC with coil resistance of 627 ohms.
- Contact material made from silver alloy ensuring durability and conductivity.
- Low coil power consumption of 250mW enhances energy efficiency.
- Meets RoHS, VDE, and IEC 60335-1 standards for safety and compliance.
- Suitable for industrial, automation, and electrical applications requiring reliable power relay switching.
Product Description
TE Connectivity RY611012 is a PCB power relay designed for high performance and durability in electrical and automation systems. Featuring a 12V DC coil and capable of switching currents up to 8A, this SPDT (Single Pole Double Throw) relay is ideal for precise control in various industrial environments.
This relay mounts directly onto printed circuit boards and utilizes solder type terminals for secure electrical connections. It operates effectively within a wide temperature range of -40°C to 70°C, ensuring reliability under varied conditions.
Constructed with silver alloy contacts, the relay guarantees excellent conductivity and resistance to wear. The coil resistance is 627 ohms with a coil power consumption of only 250mW, contributing to efficient energy usage.

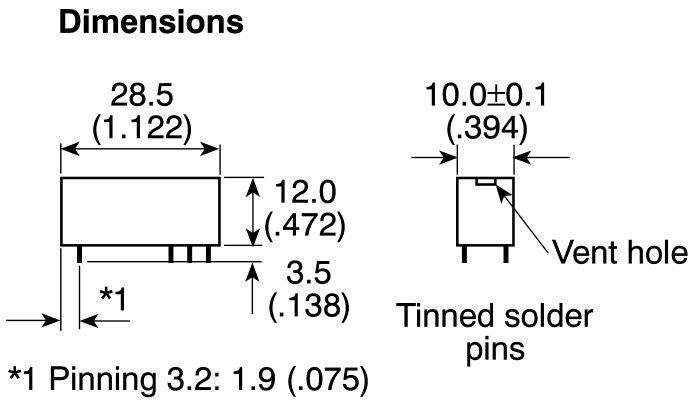

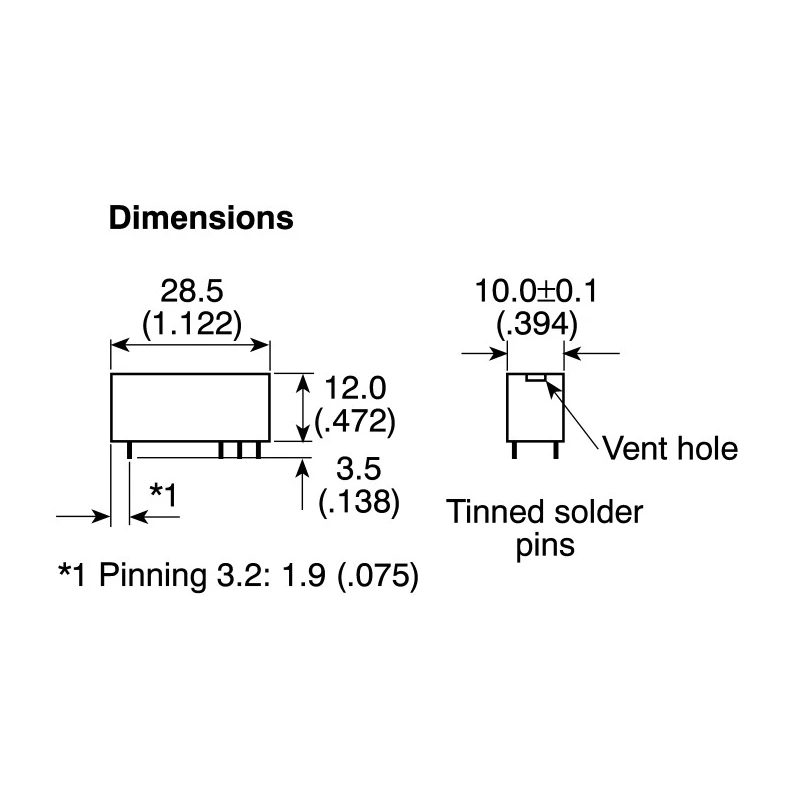

Dimensions include a height of 12.3mm, width of 28.5mm, and depth of 10.1mm, with an 8mm creepage and clearance distance that supports safety and insulation requirements. The relay supports a switching AC voltage up to 400V AC facilitating use in numerous electrical circuits.
Certified for RoHS compliance and approved by VDE and IEC 60335-1 standards, the RY611012 relay assures quality and safety for industrial, laboratory, manufacturing, and automation applications. Originating from the Czech Republic, this relay is a dependable choice for engineers and designers seeking compact, efficient PCB relays.
Designed for PCB mount with solder terminal type. Operates reliably in temperatures ranging from -40°C to 70°C. Switching voltage rated at 400V AC with coil resistance of 627 ohms. Dimensions approximately 12.3mm height, 28.5mm width, and 10.1mm depth.
Contact material made from silver alloy ensuring durability and conductivity. Low coil power consumption of 250mW enhances energy efficiency. Meets RoHS, VDE, and IEC 60335-1 standards for safety and compliance. Suitable for industrial, automation, and electrical applications requiring reliable power relay switching.
Explore our wide range of relays and Power Relays at EnvMart for industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A.
This model operates with a coil voltage of 12V DC.
The dimensions of the relay are approximately 12.3mm in height, 28.5mm in width, and 10.1mm in depth.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay operates reliably in temperatures ranging from -40°C to 70°C.
The coil resistance of this relay is 627 ohms.
The maximum switching voltage is rated at 400V AC.
It utilizes solder type terminals for secure electrical connections.
The contacts are made from silver alloy, ensuring good conductivity and durability.
It meets RoHS, VDE, and IEC 60335-1 standards for safety and compliance.
The coil power consumption is 250mW, contributing to energy efficiency.
This relay originates from the Czech Republic.
