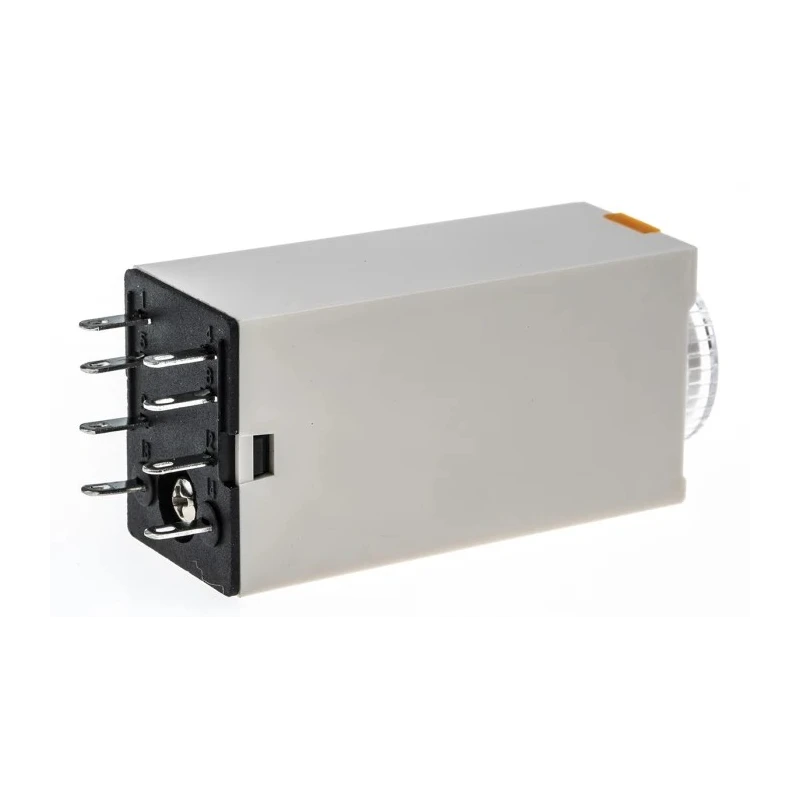

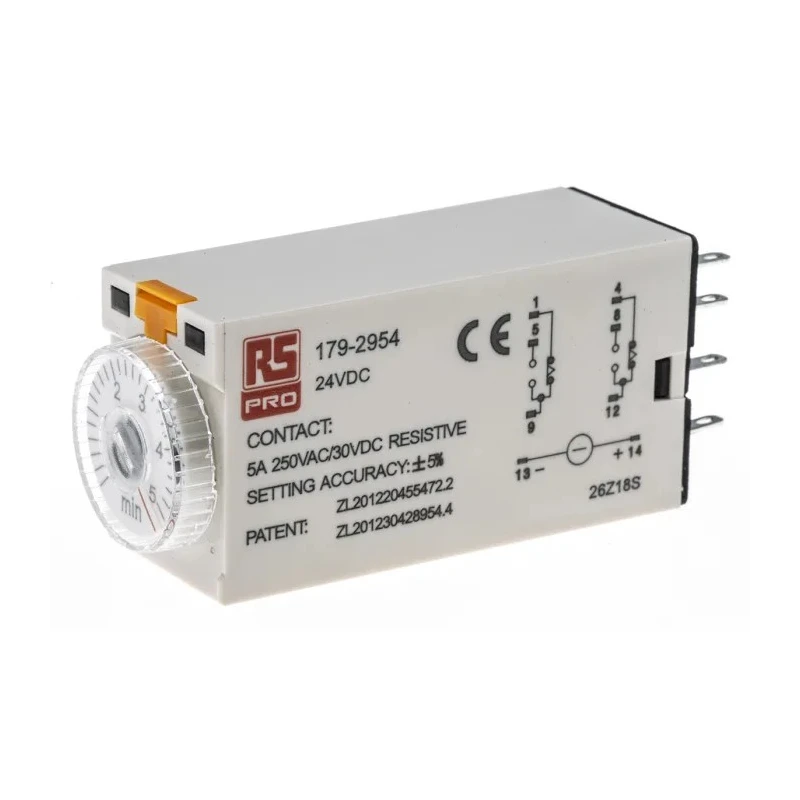

RS PRO TKB Series Timer Relay, 2-Contact, 24 V dc AC Voltage, 0.2 to 5 Min Time Range, 1-Function, DPDT Contact 179-2954
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 53mm |
| Model | 179-2954 |
| Mode | ON Delay |
| Width | 21.5mm |
| Series | TKB |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.2 to 5 min |
| Terminal type | 8-Pin |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 5A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 24V ac |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
Key Features
- Equipped with 2 contacts and 1 timer function for precise timing operations.
- Operates with ON Delay mode using an easy-to-adjust dial mechanism.
- Compact design with a length of 53 mm and width of 21.5 mm for space-saving installation.
- Suitable for use in electrical control systems and automation applications.
- Built with an 8-pin terminal type for secure connectivity.
- Designed to operate between -10°C to 55°C, conforming to RoHS standards.

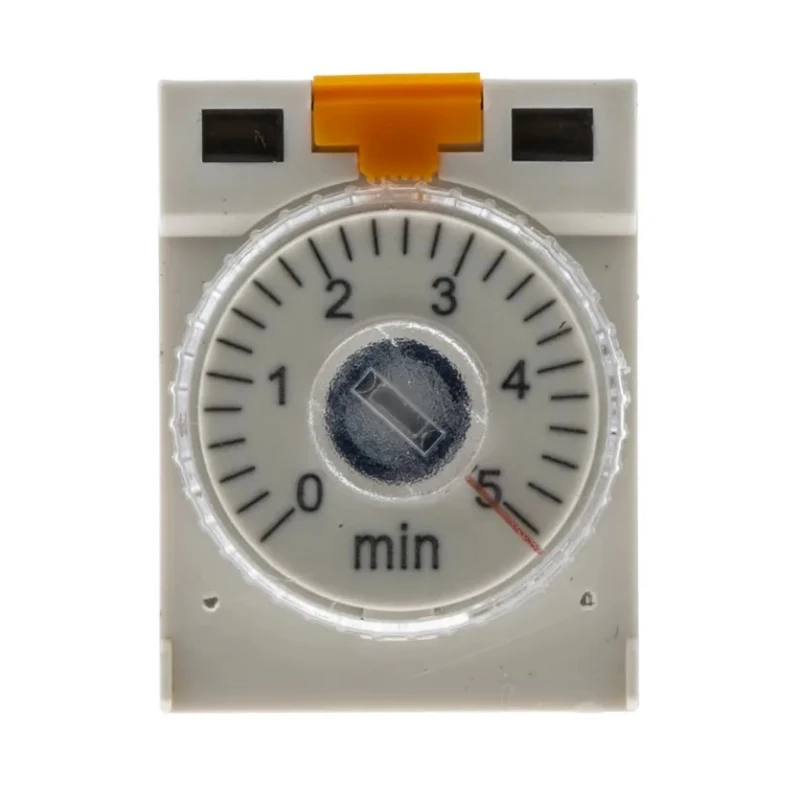

- Includes analogue dial display for clear timing adjustments.
- Manufactured as part of the TKB series for reliable timer relay performance.
Product Description
RS PRO 179-2954 Timer Relay is a high-quality industrial timer relay designed for precise time control in automation and electrical control systems. This timer relay features a dual power supply capability, operating on 24 V dc and 24 V ac, and provides a timing range from 0.2 to 5 minutes. It includes a DPDT (Double Pole Double Throw) contact configuration with 2 contacts, supporting current ratings up to 5A, making it suitable for various industrial switching applications.
The device is equipped with an 8-pin plug-in terminal type and an analogue dial display for intuitive timing adjustments. The ON Delay mode allows the relay to delay its activation after the input has been energized, controlled via the dial adjustment. Its compact dimensions of 53 mm length and 21.5 mm width enable efficient use of panel space in electrical cabinets.
Designed to operate reliably in environments ranging from -10°C to 55°C, the RS PRO 179-2954 timer relay complies with RoHS requirements, ensuring environmental safety. It is a member of the TKB series, known for durable and consistent performance.
This timer relay is suitable for applications in industrial automation, manufacturing control systems, HVAC control, and various electrical control and monitoring systems. It provides accurate timing, simple installation, and robust operation for professional and technical users.
Equipped with 2 contacts and 1 timer function for precise timing operations. Operates with ON Delay mode using an easy-to-adjust dial mechanism. Compact design with a length of 53 mm and width of 21.5 mm for space-saving installation.
Suitable for use in electrical control systems and automation applications. Built with an 8-pin terminal type for secure connectivity. Designed to operate between -10°C to 55°C, conforming to RoHS standards. Includes analogue dial display for clear timing adjustments.
Manufactured as part of the TKB series for reliable timer relay performance.
This product is a reliable choice for industrial and electrical professionals seeking a precision timer relay for their control circuits. Explore more Timer Relay and relay components at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer relay has a time range of 0.2 to 5 minutes, allowing for precise timing operations in various applications.
It features a DPDT (Double Pole Double Throw) contact configuration with 2 contacts, supporting current ratings up to 5A.
This model operates on both 24 V dc and 24 V ac supply voltages, providing flexibility for different electrical systems.
It is designed to operate reliably in environments ranging from -10°C to 55°C.
The timing adjustment is made using an easy-to-use dial mechanism, allowing for intuitive control of the timing settings.
The dimensions of this unit are 53 mm in length and 21.5 mm in width, making it compact for installation in electrical panels.
It is built with an 8-pin terminal type for secure connectivity in electrical installations.
This model conforms to RoHS standards, ensuring it meets environmental safety requirements.
It is suitable for use in industrial automation, manufacturing control systems, HVAC control, and various electrical control and monitoring systems.
This timer relay includes 1 timer function, specifically operating in ON Delay mode.
The RS PRO TKB Series Timer Relay is manufactured in China.
Compatible sockets for the 8-pin terminal are 121-7802 or 121-7803, which come supplied with a metal clip.
