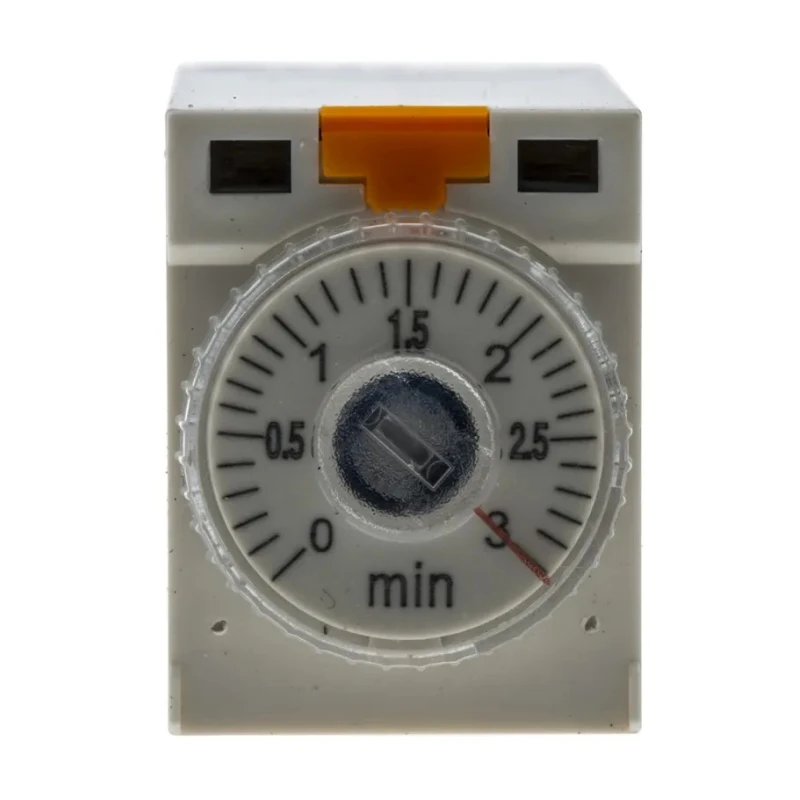

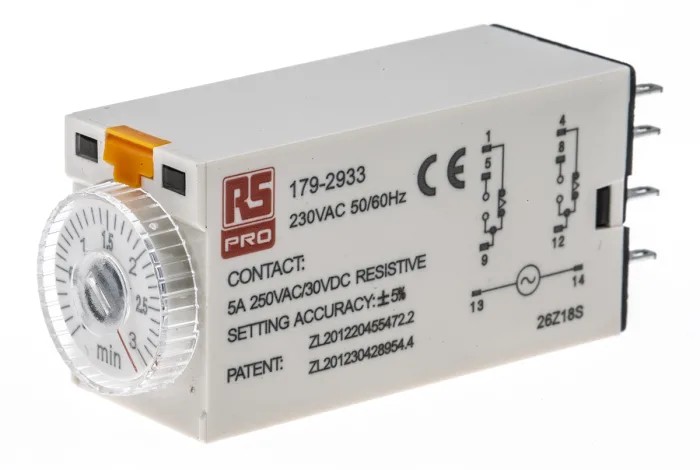

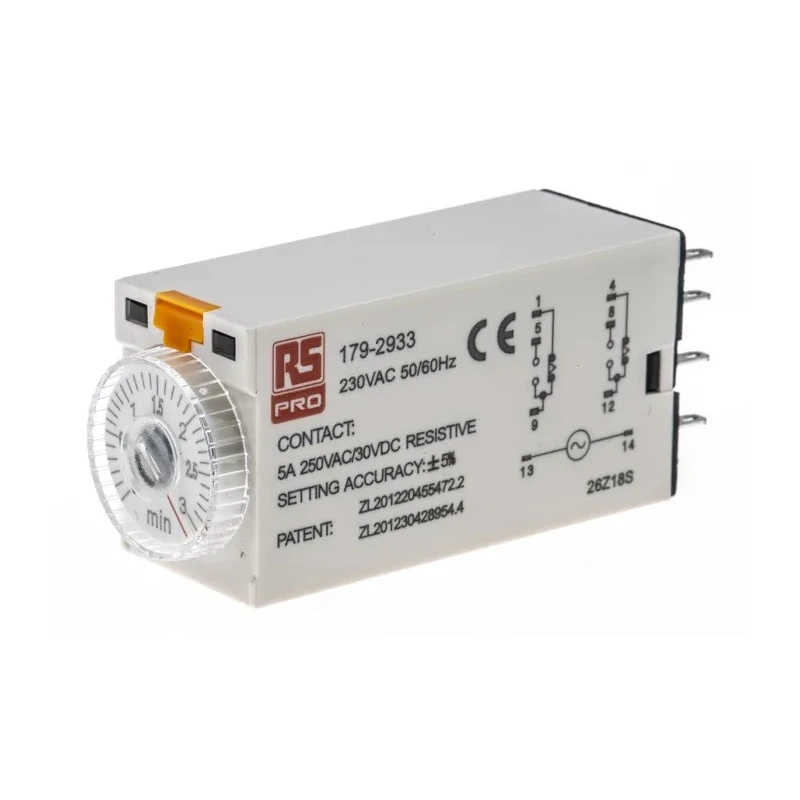

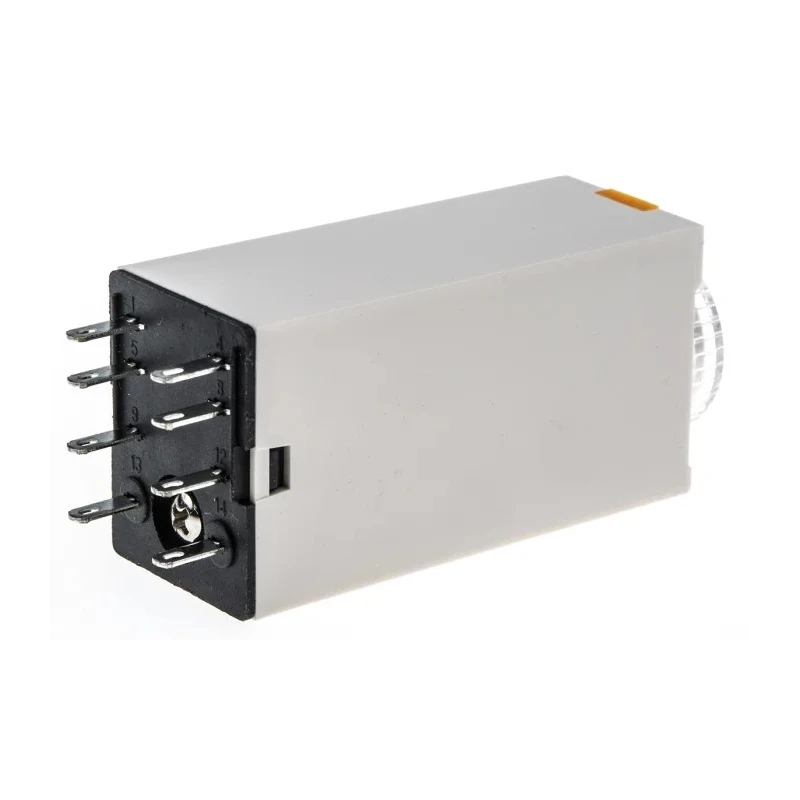

RS PRO TKB Series Timer Relay, 2-Contact, DPDT Switch Configuration, 230V AC, 0.1 to 3 min, 1-Function 179-2933
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 53mm |
| Model | 179-2933 |
| Mode | ON Delay |
| Width | 21.5mm |
| Series | TKB |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | 8-Pin |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Timing Adjustment | Dial |
| Supply AC Voltage | 230V ac |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
Key Features
- Equipped with an 8-pin plug-in terminal for easy installation.
- Timing is adjustable via a precise analogue dial display.
- Operational temperature range from -10°C to 55°C ensures suitable performance in varied environments.
- Compact dimensions of 53mm length and 21.5mm width facilitate space-saving applications.
- Contact current rating of 5A with switching voltage up to 250V AC.
- Conforms to RoHS standards, ensuring environmental compliance.
- Designed for industrial and automation control systems requiring reliable time-delay functionality.
- Suitable sockets for this series include RS Stock numbers 121-7802 or 121-7803 with metal clip supply.
Product Description
The RS PRO 179-2933 Timer Relay is a reliable and compact accessory designed for precise time delay control applications in industrial, electrical, and automation systems. It operates at 230V AC supply voltage and features a 0.1 to 3-minute time range with a single ON delay function, providing consistent timing operations.
This model is configured with a double pole double throw (DPDT) contact configuration and supports a contact current up to 5A with switching voltage rated at 250V AC, suitable for a wide range of relay control tasks.
The device incorporates an 8-pin plug-in terminal type which simplifies installation and maintenance processes. Timing adjustments are facilitated through an analogue dial, offering ease of use and fine control over timing parameters.
Designed to operate within a temperature range of -10°C to 55°C, this timer relay remains reliable under diverse environmental conditions. Its compact form factor with dimensions 53mm in length and 21.5mm in width allows integration even in limited spaces.
The RS PRO 179-2933 timer relay complies with RoHS standards for environmental safety and originates from China. Suitable compatible sockets for easy mounting include RS Stock No. 121-7802 and 121-7803, both supplied with metal clips for secure fixing.
This timer relay is ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial electrical applications that require precise and dependable timing control.
Equipped with an 8-pin plug-in terminal for easy installation. Timing adjustable via analogue dial display. Operational temperature range from -10°C to 55°C. Compact size: 53mm length by 21.5mm width. Contact current rated at 5A and switching voltage up to 250V AC.
DPDT contact configuration for versatile switching. RoHS compliant for environmental safety. Compatible with sockets RS 121-7802 and 121-7803.
Choose RS PRO Timer Relays for efficient and dependable timing control in your industrial and electrical automation needs. Explore the full RS PRO catalogue at EnvMart for more quality electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range from 0.1 to 3 minutes.
It has a switching voltage rated at 250V AC.
The contact current rating is 5A.
It features a double pole double throw (DPDT) contact configuration.
The operational temperature range is from -10°C to 55°C.
Timing adjustments are made via a precise analogue dial display.
This model has compact dimensions of 53mm in length and 21.5mm in width.
It is equipped with an 8-pin plug-in terminal for easy installation.
Compatible sockets include RS Stock numbers 121-7802 and 121-7803, both supplied with metal clips.
The supply voltage for this model is 230V AC.
It conforms to RoHS standards for environmental compliance.
It is designed for use in industrial automation, electrical control panels, HVAC systems, and manufacturing processes that require precise timing control.
