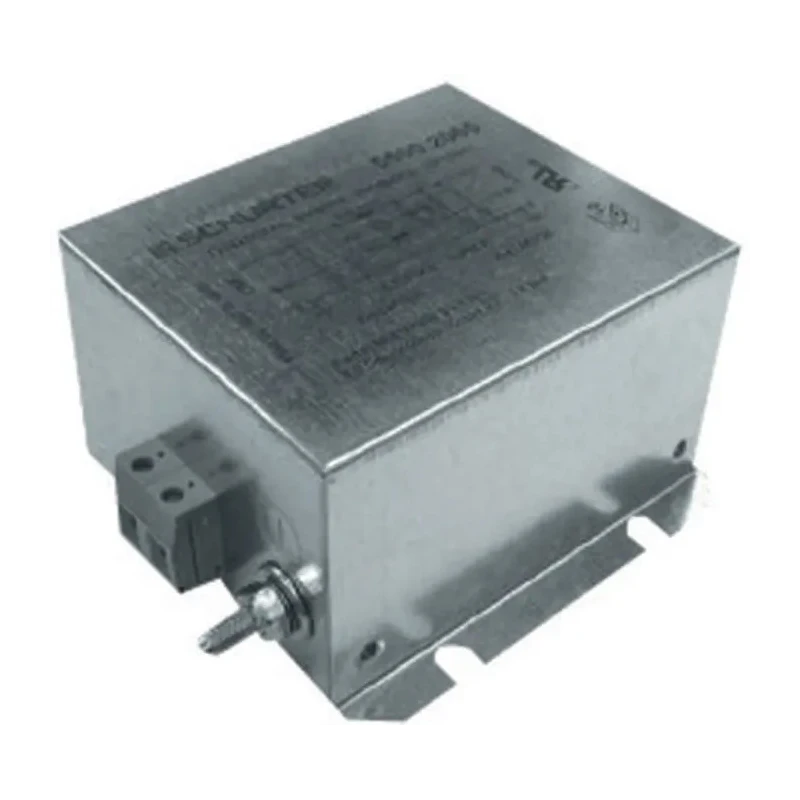

Schurter Flange EMC Filter 20A 250V AC 60Hz 1 Phase Screw Termination FMAB 5500.2065
Specifications
| Country of Origin | Slovakia |
|---|---|
| Brand | Schurter |
| Height | 58mm |
| Length | 137mm |
| Depth | 106mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | FMAB |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 10nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 5.2mA |
| Maximum Voltage | 250V ac |
| Inductance | 2mH |
| Termination Style | Screw |
| Power Loss | 4.6W |
Key Features
- Rated for maximum current of 20 amperes.
- Maximum voltage rating of 250 volts AC at 60 Hz.
- Single phase filter with one stage protection.
- Flange mount type with screw termination style.
- Capacitance value of 10 nanofarads for effective noise suppression.
- Inductance of 2 millihenries for attenuation of interference.
- Operates within temperature range of -25°C to 100°C.
- Leakage current specified at 5.2 milliamperes.
Product Description
Schurter 5500.2065 is a high-quality flange EMC filter designed for installation on FMAB chassis. This single phase filter supports a maximum current of 20 A and a maximum voltage of 250 V AC at 60 Hz, ideal for protecting electronic equipment from mains supply interference. It features screw termination and flange mounting for secure and reliable installation.
The filter’s capacitance of 10 nF combined with inductance of 2 mH provide effective suppression of unwanted electromagnetic disturbances between 10 kHz and 300 MHz. It maintains a leakage current of 5.2 mA and power loss of only 4.6W, thus ensuring energy-efficient operation.
Constructed for durability, this filter operates reliably within a temperature range from -25°C to 100°C. Its compact dimensions of 137 mm length, 106 mm depth, and 58 mm height allow for convenient chassis mounting close to the mains supply point of entry, which optimizes interference protection.
These mains filters meet Class 1 protection criteria delivering symmetric and asymmetric attenuation. The device is produced in Slovakia, supporting international standards including EN 133200, UL1283, IEC 60950, and VDE 0565 (note that according to source approval status is listed as No).
Well-suited for industrial and commercial applications, such as power electronics, electrical equipment manufacturing, and HVAC systems, this filter enhances system reliability by mitigating EMI noise and protecting sensitive components.
Rated for maximum current of 20 amperes. Maximum voltage rating of 250 volts AC at 60 Hz. Single phase filter with one stage protection. Flange mount type with screw termination style. Capacitance value of 10 nanofarads for effective noise suppression.
Inductance of 2 millihenries for attenuation of interference. Operates within temperature range of -25°C to 100°C. Leakage current specified at 5.2 milliamperes. Power loss is low at 4.6 watts ensuring efficient operation.
Dimensions: Length 137mm, Depth 106mm, Height 58mm. Provides Class 1 symmetrical and asymmetrical attenuation from 10 kHz to 300 MHz. Explore more power line filters in the Electronics Components category at EnvMart for enhanced EMI protection solutions.
Explore more products in our EMC Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating is 20 amperes.
It has a maximum voltage rating of 250 volts AC.
The operating frequency is 60 Hz.
The dimensions are 137 mm in length, 106 mm in depth, and 58 mm in height.
It features a flange mount type with screw termination style.
The capacitance value is 10 nanofarads.
The inductance is 2 millihenries.
The leakage current is specified at 5.2 milliamperes.
It operates within a temperature range of -25°C to 100°C.
The power loss is low at 4.6 watts.
It is well-suited for industrial and commercial applications, including power electronics, electrical equipment manufacturing, and HVAC systems.
It complies with international standards including EN 133200, UL1283, IEC 60950, and VDE 0565.
