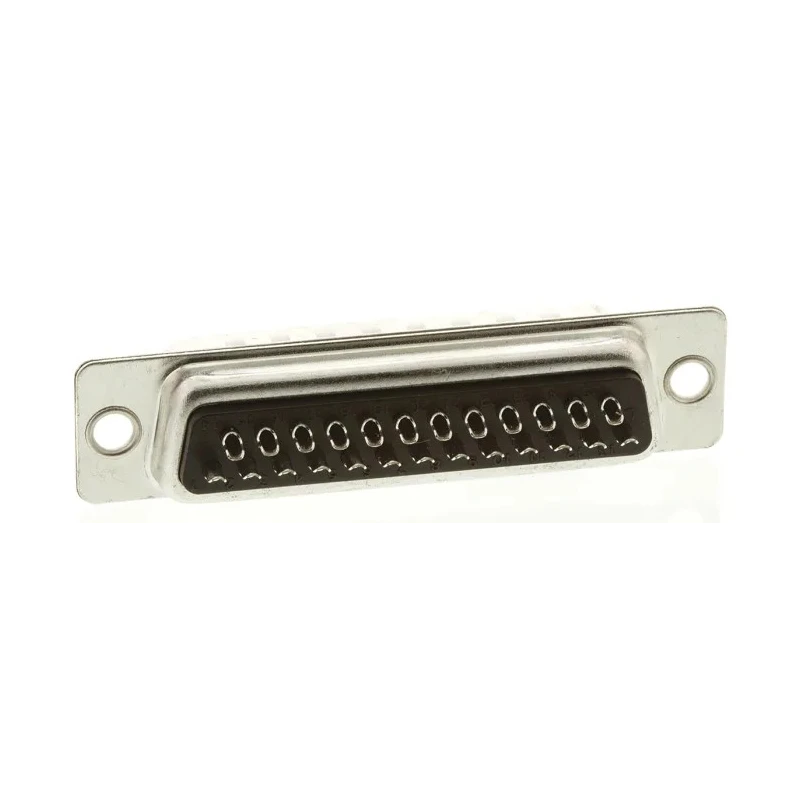

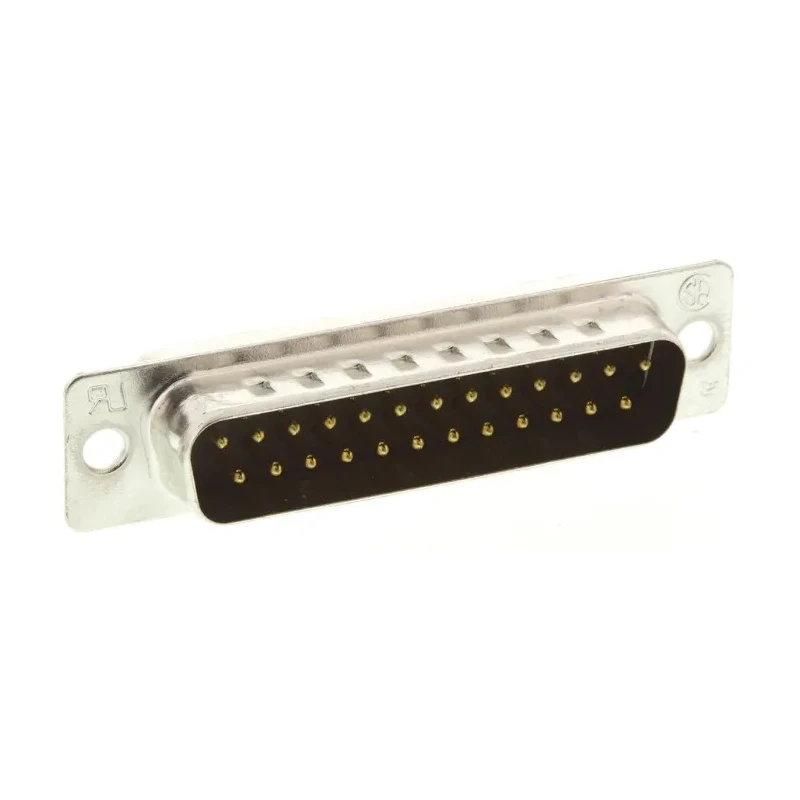

TE Connectivity Amplimite HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male 5-747912-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Amplimite HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male 5-747912-2

Name: TE Connectivity Amplimite HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male 5-747912-2
Brand: TE Connectivity
SKU: 98497
Price: 6.94 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	250.0V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Series	AMPLIMITE HD-20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	B

Key Features

This D-Sub connector features 25 contacts with a 2.77 mm pitch for efficient connectivity.
The connector has a panel mount type with a straight orientation, suitable for robust installations.
It supports a current rating of 3A and a voltage of 250V for standard electronic component use.
The housing is made of durable steel, offering strength and EMI shielding capabilities.
Contacts are brass with gold over nickel plating, ensuring excellent conductivity and corrosion resistance.
The connector operates reliably in temperatures ranging from -55°C to 105°C.
Termination is by solder, with male connector gender and D-sub shell size B.
It is manufactured under the AMPLIMITE HD-20 series and made in China.

Product Description

TE Connectivity 5-747912-2 Amplimite HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male is a high-density D-Sub connector designed for electronic components and communication data interfaces. It provides a robust connection with its panel mount style and straight orientation, suitable for mounting on control panels and electronic enclosures.

This connector features 25 contacts arranged with a 2.77 mm pitch in a durable steel housing that delivers full electromagnetic interference (EMI) shielding and electrostatic discharge (ESD) insulation, essential for reliable electronic performance in industrial and laboratory environments.

The contacts are brass materials plated with gold over nickel, enhancing electrical conductivity and resistance to corrosion. The connector supports up to 3 amperes current and 250 volts operation, functioning efficiently within a temperature range of -55 to 105 degrees Celsius.

Its solder termination type and male contact gender make it compatible with a variety of cabling and board mount components such as HDE, HDF, HDP, and HD-20 series connectors. The product is ideal for use in communication equipment, industrial controls, and electronic instrumentation.

This D-Sub connector includes a steel shell with tin plating for corrosion protection. The black 94V-0 rated thermoplastic insert provides flame retardance and insulation quality. The design offers 65% higher contact density compared to standard HD-20 connectors, thus saving space.

It is compatible with a wide range of accessories, including crimp contacts, screw retainers, locking posts, and latching mechanisms. The connector is suitable for use in industrial manufacturing, data communication systems, and assembly of electronic devices.
