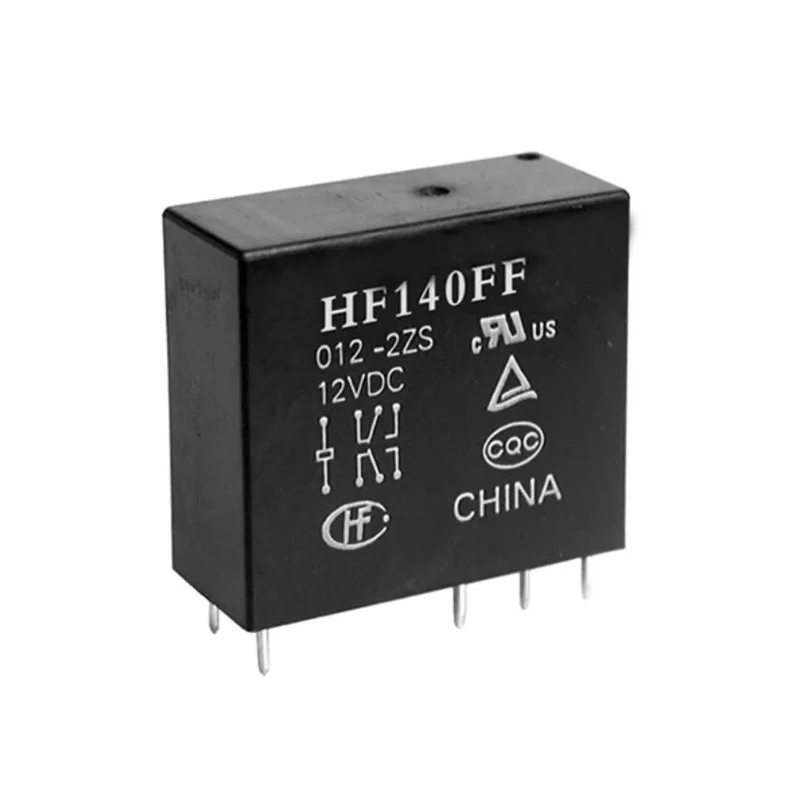

Hongfa Europe GMBH PCB Power Relay 5V DC Coil 10A Switching Current DPST HF140FF/005-2HTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.3mm |
| Length | 29mm |
| Model | HF140FF/005-2HTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF140FF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 47Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 530mW |
Key Features
- Operates with a coil voltage of 5V DC for low power consumption.
- Features a DPST contact configuration suitable for multiple circuit control.
- Switching current rating of 10A supports medium power loads.
- Designed with silver alloy contacts for enhanced electrical endurance.
- Compact dimensions with 29mm length, 26.3mm height, and 13mm width.
- Operating temperature range from -40°C to 85°C ensures robustness in various environments.
- Coil resistance of 47Ω and coil power rating of 530mW deliver efficient switching performance.
- Isolation voltage between coil and contacts rated at 5kVAC for operational safety.
Product Description
Hongfa Europe GMBH HF140FF/005-2HTF is a PCB power relay featuring a 5V DC coil and a switching current capacity of 10A in a DPST contact configuration designed for PCB mounting. This miniature intermediate type power relay offers a high electrical endurance with silver alloy contacts, ensuring reliable long-term operation.
The relay operates efficiently with a coil resistance of 47Ω and coil power consumption of 530mW, suitable for low power activation circuits. Its compact size with dimensions of 29mm length, 26.3mm height, and 13mm width makes it an excellent choice for space-constrained PCB designs.
The device withstands a wide operating temperature range from -40°C to 85°C, making it robust across various industrial environments. With an isolation voltage between coil and contacts at 5kVAC and high surge voltage resistance up to 10kV, this relay ensures safe operation against electrical disturbances.
The product complies with RoHS environmental standards and is built for high mechanical endurance with a life expectancy of 10 million cycles. It is resistant to vibration, shock, and abrasion.
Operates on a 5V DC coil voltage with low power consumption. DPST contact configuration allows simultaneous control of two circuits. 10A switching current capacity supports moderate power applications. Silver alloy contact for superior electrical endurance and reliability.
Compact form factor suitable for PCB mounting applications. Wide operating temperature range from -40°C to 85°C for harsh environments. Coil power of 530mW and coil resistance of 47Ω. High isolation voltage (5kVAC) for coil to contact safety.
Surge withstand voltage up to 10kV. RoHS compliant ensuring environmental safety. Applications include automotive, household appliances, industrial machinery, and telecommunications. This relay is ideal for industrial, automotive, household appliance control, telecommunication equipment, and various machinery requiring reliable switching action.
Explore more Power Relays and electrical components in our comprehensive category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 10A, making it suitable for medium power loads.
This model operates with a coil voltage of 5V DC, which allows for low power consumption.
The relay has compact dimensions of 29mm in length, 26.3mm in height, and 13mm in width.
It features a DPST (Double Pole Single Throw) contact configuration, allowing control of two circuits simultaneously.
The operating temperature range is from -40°C to 85°C, enabling it to function in various environments.
The coil resistance is 47Ω, which contributes to its efficient switching performance.
The contacts are made of silver alloy, which enhances electrical endurance and reliability.
The isolation voltage between the coil and contacts is rated at 5kVAC, ensuring operational safety.
The coil power consumption is rated at 530mW, which is suitable for low power activation circuits.
This relay complies with RoHS environmental standards, ensuring it meets safety and environmental regulations.
The relay can withstand a surge voltage of up to 10kV, providing protection against electrical disturbances.
It is suitable for applications in automotive, household appliances, industrial machinery, and telecommunications.
