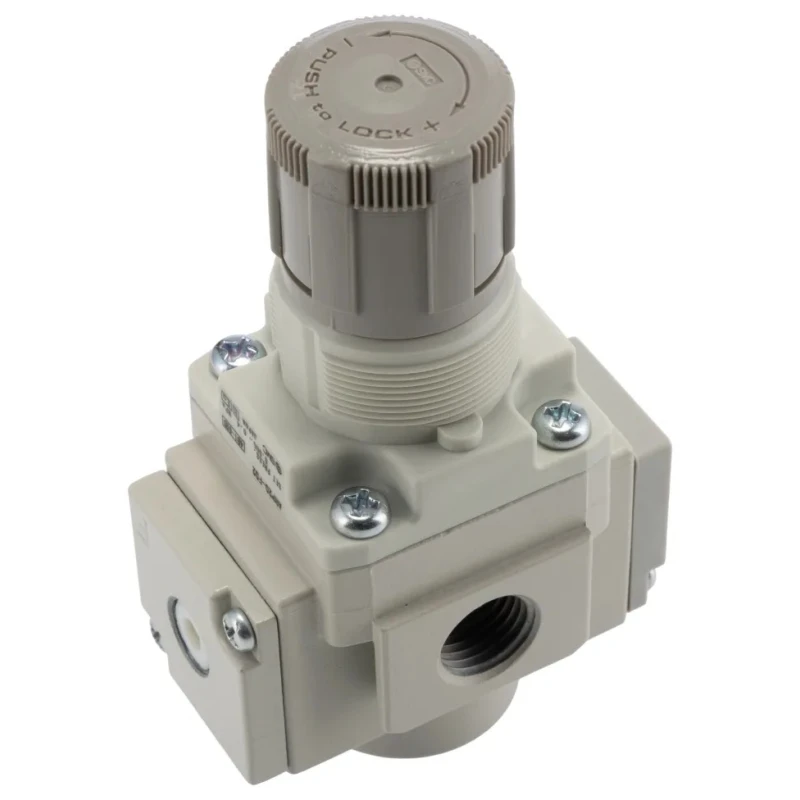

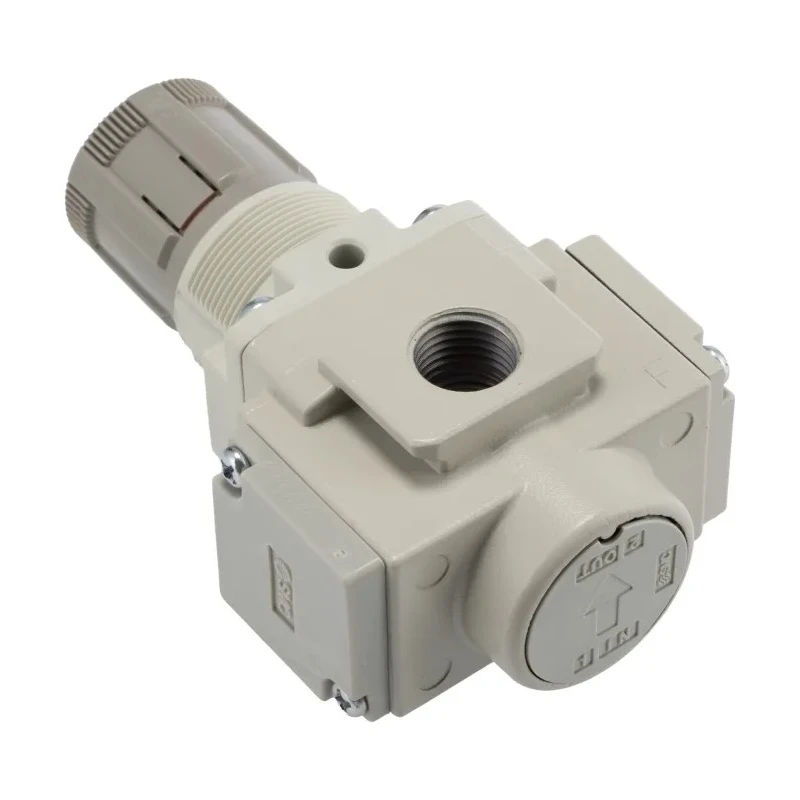

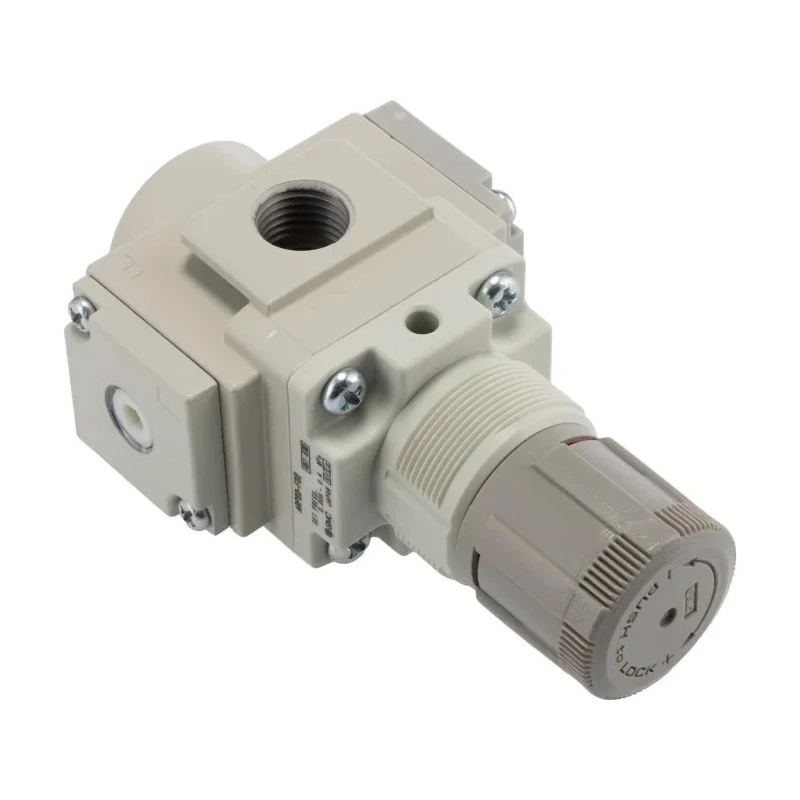

SMC Type G Pneumatic Regulator 1/4 in Outlet Size 0.05 Bar Minimum Operating Pressure ARP20

Free Delivery in India | Lowest Global Shipping Charges

SMC Type G Pneumatic Regulator 1/4 in Outlet Size 0.05 Bar Minimum Operating Pressure ARP20



Category Pneumatic Regulators Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Model	ARP20
Series	ARP20
Maximum Operating Temperature	60°C
Outlet Size	1/4 in
Standards/Approvals	RoHS
Minimum Operating Pressure	0.05bar
Outlet Type	Type G

Key Features

This regulator offers a set pressure range of 0.005 to 0.4 MPa for fine pressure adjustments.
It features sensitivity within 0.2% full scale for stable response at small signal variations.
Repeatability is maintained within ±1% full scale for consistent pressure output.
The maximum operating pressure is 0.7 MPa, protecting downstream components effectively.
Proof pressure reaches 1.2 MPa, allowing transient tolerance during testing.
The maximum medium temperature the device can handle is 60 °C, suitable for warm industrial environments.
Designed for use with air as the medium only, ensuring compatibility with compressed air systems.
Suitable for machine-tool pneumatic control loops and assembly-line actuators and valves.

Product Description

SMC ARP20 Pneumatic Regulator is a high-precision device featuring a 1/4 inch Type G outlet port designed to control and stabilize air pressure in compressed air systems. This regulator supports fine adjustments with a set pressure range from 0.005 to 0.4 MPa and excellent sensitivity of 0.2% full scale, providing stable responses to small signal changes. The instrument demonstrates repeatability within ±1% full scale, ensuring consistent output pressure over time.

Constructed to withstand a maximum operating pressure of 0.7 MPa, the ARP20 protects downstream components from pressure damage. It also offers proof pressure of 1.2 MPa allowing tolerance to transient pressure spikes during system testing. The regulator operates effectively up to temperatures of 60 °C, making it suitable for installation in warm workshop environments.

Designed exclusively for use with air as the pressure medium, this pneumatic regulator is widely employed in industrial applications such as machine-tool pneumatic control loops, assembly line actuators and valves, laboratory compressed-air regulation, secondary pressure staging within pneumatic panels, and pneumatic testing rigs requiring precise pressure management.

This regulator delivers precise and stable pressure control within the defined operational range. Its compact design supports installation in constrained spaces and automated control panels. Variants with backflow control are available to suit specific process requirements.

Pressure indication is provided via SI units with clear nameplate and gauge markings denoting MPa. The product complies with RoHS standards, confirming environmental compliance.

With its robust performance characteristics and versatility, the SMC ARP20 pneumatic regulator is an essential component for pneumatic systems demanding accurate pressure regulation. It is manufactured in Japan, reflecting high-quality production standards. Explore additional Pneumatic Regulators and related pneumatic components in the industrial tools category at EnvMart.
