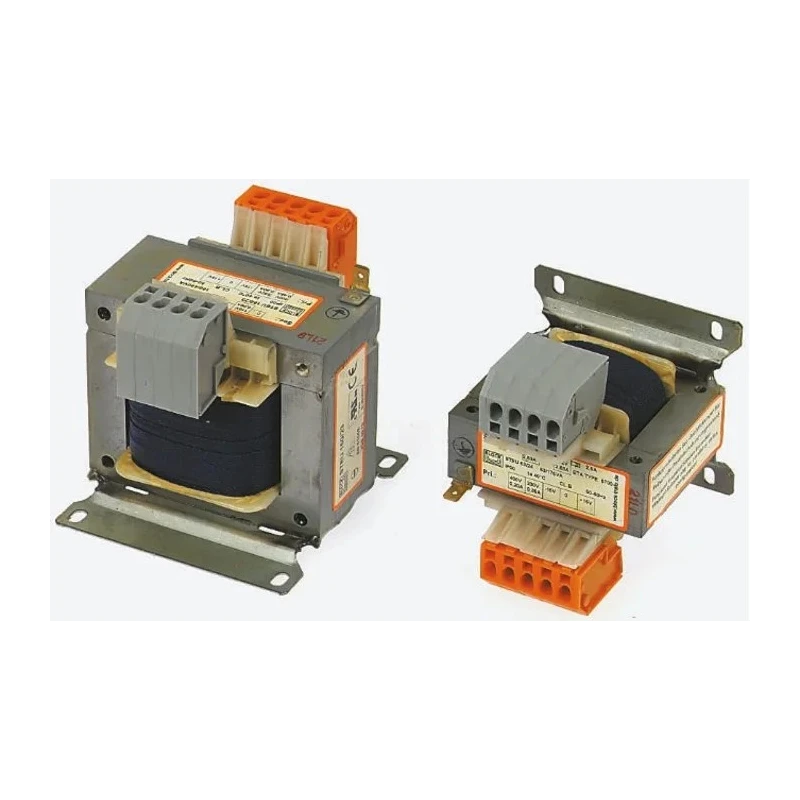

Block 2 Output 800 VA Chassis Mount Transformer, 2 x 12 V AC, 400 V AC Primary Voltage, Safety Isolating STEU800/24

Free Delivery in India | Lowest Global Shipping Charges

Block 2 Output 800 VA Chassis Mount Transformer, 2 x 12 V AC, 400 V AC Primary Voltage, Safety Isolating STEU800/24

Name: Block 2 Output 800 VA Chassis Mount Transformer, 2 x 12 V AC, 400 V AC Primary Voltage, Safety Isolating STEU800/24
Brand: Block
SKU: 96908
Price: 457.75 USD
Availability: InStock



Category Chassis Mount Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	150mm
Model	STEU800/24
Depth	130mm
Gross Weight	10.3kg
Width	150mm
Series	STEU 800/24
Maximum Operating Temperature	40°C
Number of outputs	2
Primary Voltage	400 V ac, 230 V
Secondary Voltage	2 x 12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This transformer features safety isolating and isolating control types.
Designed with twin secondary windings for series or parallel connection flexibility.
Constructed for easy installation with 4mm² cage clamp terminals and 4 hole panel mount fixings.
Supports maximum operating temperature up to 40°C and frequency from 50Hz to 60Hz.
Complies with industrial safety standards including CSA 22.2 No.66, IEC 61558-2-6, and UL 5085-1/-2 certifications.
Features low inrush current and high efficiency with low voltage regulation.
Compact chassis mount design with dimensions of 150mm x 150mm x 130mm and weight of 10.3kg.

Product Description

Block STEU800/24 Chassis Mount Transformer is a robust 800 VA power conversion device designed for industrial and electronic applications. Featuring a 400 V AC primary voltage with dual 12 V AC secondary outputs, this transformer ensures reliable safety isolation and control for sensitive equipment.

Equipped with twin secondary windings, this transformer supports series or parallel wiring configurations, enhancing flexibility for various power needs. The compact chassis mount form factor includes 4 hole panel fixings and 4mm² cage clamp terminals for secure and straightforward installation.

Designed to handle a maximum operating temperature of 40°C and frequencies ranging from 50Hz to 60Hz, the STEU800/24 delivers efficient power transformation with reduced inrush current and stable voltage regulation.

Manufactured to comply with stringent global standards such as CSA 22.2 No.66, IEC 61558-2-6, DIN EN 61558-2-6, VDE 0570, and UL 5085-1/-2, this transformer is suitable for industrial, laboratory, manufacturing, and HVAC applications requiring safe and reliable voltage conversion.

Safety isolating transformer type with isolating control capability. Twin secondary windings for series or parallel connection options. Supports primary voltages of 400 V AC and 230 V AC for varied input requirements. Compact size: 150mm length, 150mm width, and 130mm depth.

Operating temperature range up to 40°C for dependable performance. Compliant with multiple international electrical and safety standards. Robust design ensuring low inrush currents and high efficiency with minimal voltage regulation.

This transformer is ideal for use in industrial control systems, power supply units, and equipment requiring isolated AC voltages at 12 V. Its high quality construction and adherence to safety standards offer assurance for long-term reliable operation.
