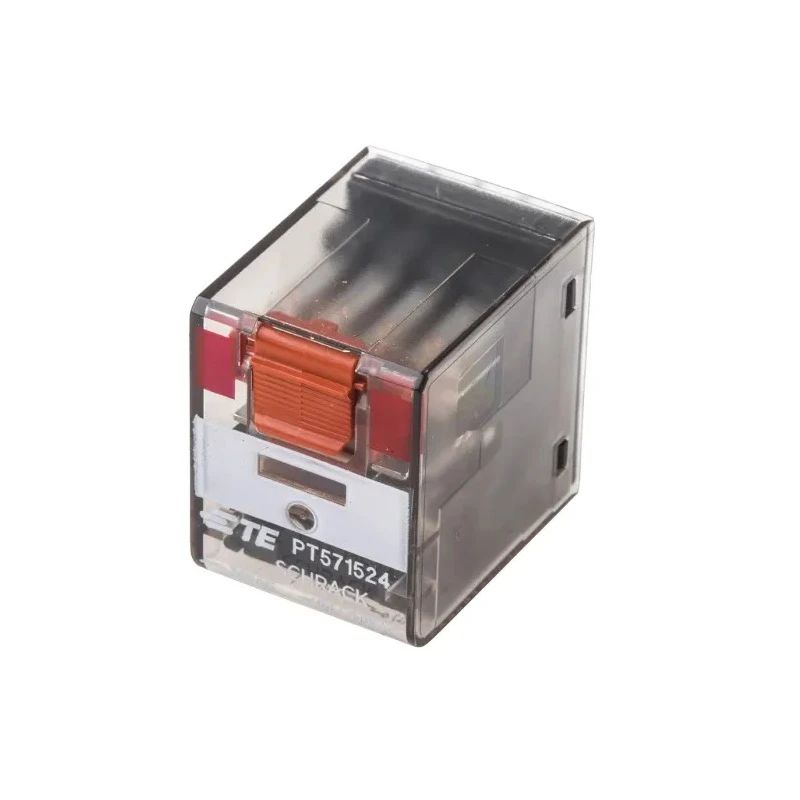

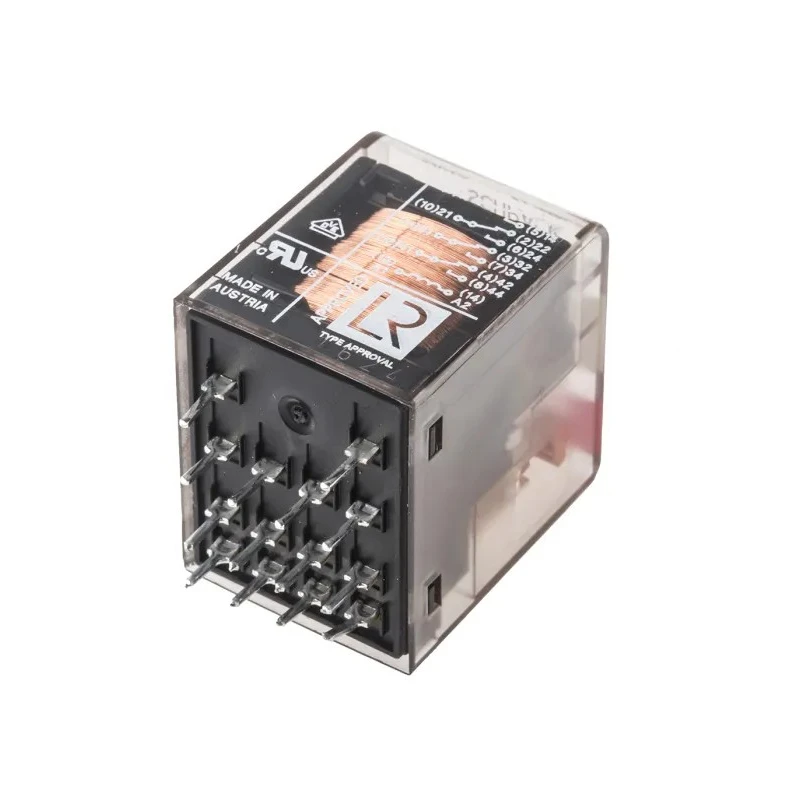

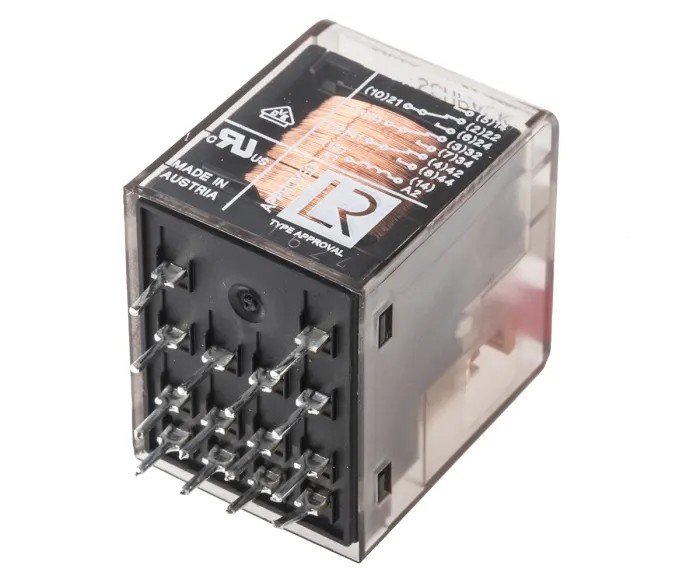

TE Connectivity Power Relay PCB Mount 24V ac Coil 6A Switching Current 4PDT PT571524 9-1419111-6

TE Connectivity PT571524 9-1419111-6 is a high-quality power relay designed for PCB mounting applications, operating with a 24V ac coil voltage and a switching current capacity of 6A. It features a 4PDT contact configuration to switch multiple circuits efficiently, making it suitable for industrial and commercial electrical systems.

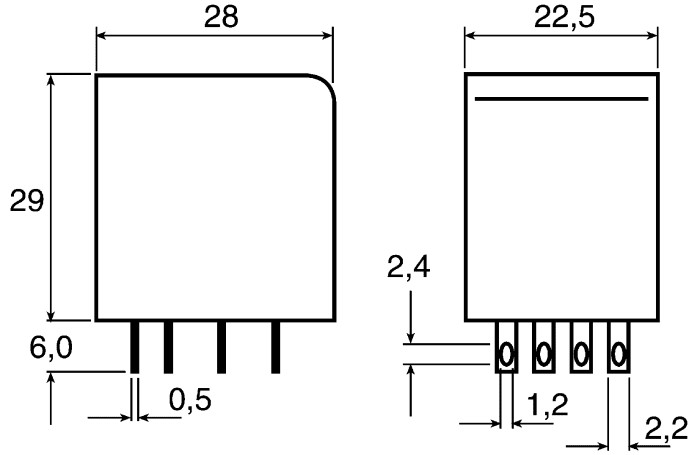

This relay measures 28mm in length, 22.5mm in width, and 30mm in height, allowing easy integration into printed circuit boards. It is built with durable silver nickel alloy contacts, ensuring reliable electrical connectivity and long mechanical life with an AC mechanical cycle rating up to 2 x 107 operations. The coil resistance is specified at 192 ohms, contributing to consistent actuator performance.

Engineered for tough environments, the relay functions within a temperature range of -40°C to 70°C, making it versatile for various ambient conditions. The unit features solder-type terminals facilitating secure and effective mounting on PCBs. Safety and quality are assured with certifications including IEC, RoHS, UL, and VDE standards.

Additional product features include an isolation rating of 2.5kV(ac) between coil and contacts, providing high electrical insulation. This relay is suitable for applications in industrial automation, control systems, power distribution, and HVAC systems among others, where precise and reliable switching is necessary.

The PT series relay also includes provisions for manual and lockable test facility as well as LED and mechanical indicators, supporting maintenance and operational monitoring.

Country of origin is Austria, ensuring European manufacturing quality standards. Its compact size and multi-pole design make this relay a preferred choice for engineers and system integrators seeking dependable power relays.

Equipped with a 24V ac coil for effective power usage. Supports a switching current of 6A for various electrical applications. Compact dimensions of 28mm length, 22.5mm width, and 30mm height ensure PCB compatibility. Contact configuration is 4PDT, allowing multiple circuit switching.

Constructed with silver nickel alloy contacts for durability and longevity. Coil resistance measured at 192 ohms ensuring stable operation. Operates reliably between -40°C minimum to 70°C maximum temperatures. Designed with solder terminal type for secure connections.

IEC, RoHS, UL, and VDE certified for compliance with industry standards. Provides isolation between coil to contact up to 2.5kV(ac) for safety. Explore the extensive EnvMart range of Power Relays for your industrial, automation, and electrical project needs.
