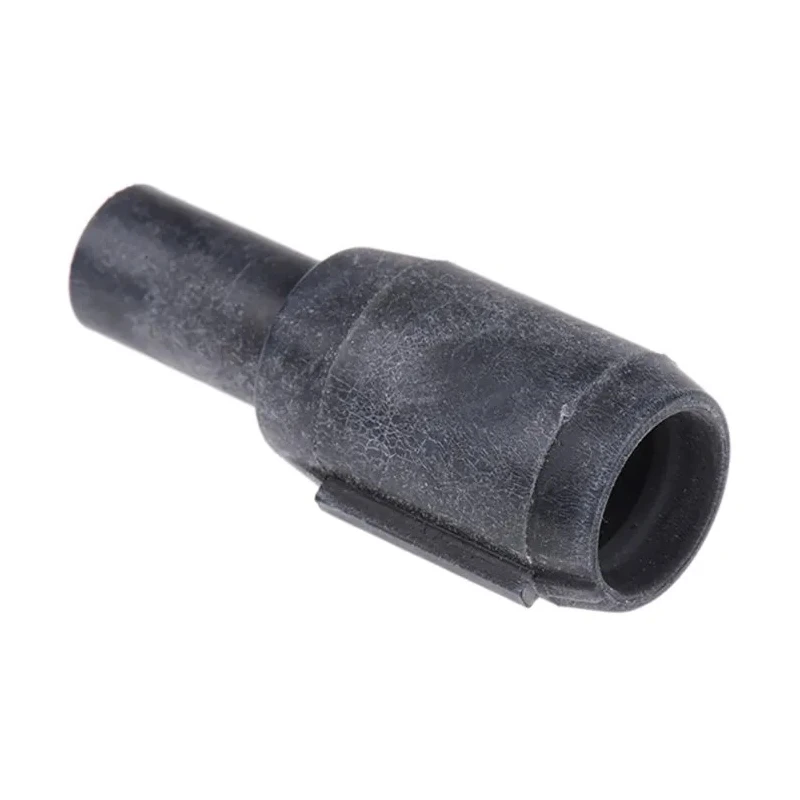

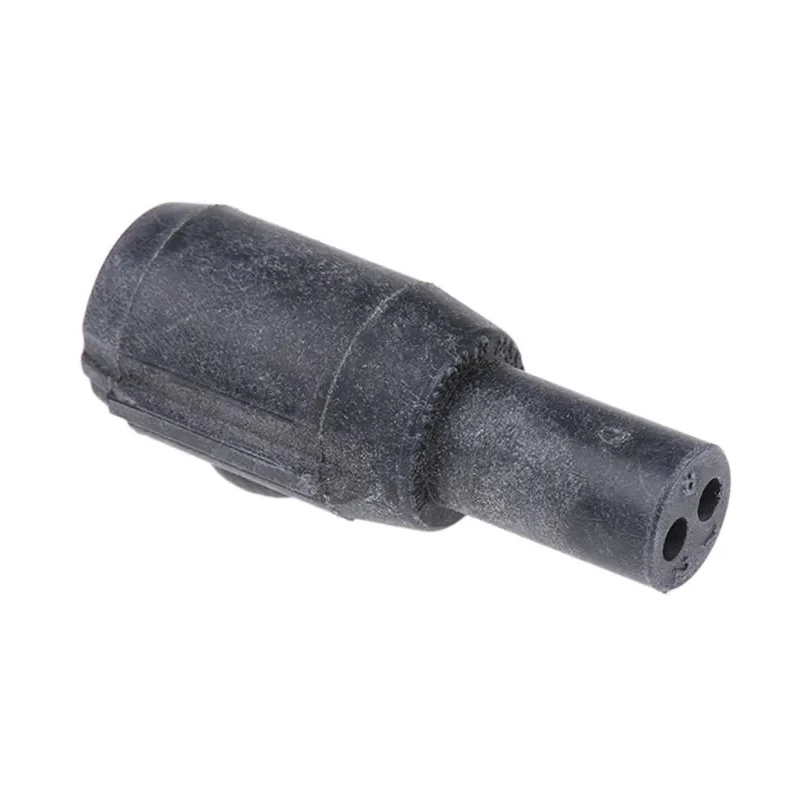

ITT Cannon Miniature Industrial Circular Connector, 2 Contacts, Male Plug, Cable Mount, IP67, Mini Sure-Seal 120-8551-100

ITT Cannon 120-8551-100 Miniature Industrial Circular Connector is a cable mount male plug featuring 2 contacts, designed specifically in the Mini Sure-Seal series. It provides a high level of protection with an IP67 rating, ensuring dependable operation in industrial and automotive environments subject to dust, water, vibrations, and shocks.

This connector supports a current of 8 amperes and a voltage rating up to 1200 volts, suitable for robust electrical applications. The tin-plated copper contacts deliver corrosion resistance and consistent electrical conductivity.

The connector housing is made of durable Perbunan material in a one-piece molded body, providing sealing integrity even when exposed to brake fluid, gasoline, diesel fuel, anti-freeze, ultraviolet rays, ozone, and steam cleaning under normal operating conditions. Its operating temperature range from -40°C to 105°C allows use in extreme environments.

Featuring a straight orientation and bayonet mating type, the connector ensures a secure, reliable connection with correct polarisation to prevent mis-mating. It uses a crimp termination method for cable attachment, enhancing durability of the connection.

This Mini Sure-Seal connector series was developed to meet stringent automotive and industrial standards, covering vibration, shock, salt spray, and low contact resistance requirements, making it a preferred choice for demanding applications.

Note that contacts must be ordered separately to complete the setup. Cable boots for sealing the cable jacket to the connector housing are also available as accessories. The connector is part of the Mini Sure-Seal series with a compact and robust design.

Rated for 8A current and voltage up to 1200V for reliable power transmission. Constructed with copper contact material and tin plating for corrosion resistance. Operating temperature range from -40°C to 105°C ensures durability in extreme environments.

Its one-piece molded Perbunan housing provides excellent sealing against dust and water. Features straight orientation and crimp termination for secure wire attachment. The product is especially designed to meet automotive and industrial standards for vibration and shock resistance.

The male plug connector has a bayonet mating type for easy and reliable connection. Contacts must be ordered separately to complete the connection. Manufactured in China under strict quality standards. This product is ideal for use in industrial, automotive, electrical, and manufacturing applications requiring secure and durable cable connections.
